Maintenanc e Lubricating the runner blocks - AXI 181 Inspection system X7056 | Operating manual | Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a Lubricating the runner blocks - AXI To ensure smooth functioning of the tra…
Maintenance
Lubricating the runner blocks - AOI
180
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
4. Grease the two rear runner blocks through the funnel grease
nipples; use 1.4 cm
3
grease.
The Y-axis guide carriages are greased.
The runner blocks in the AOI section are greased.
Maintenance
Lubricating the runner blocks - AXI
181
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
Lubricating the runner blocks - AXI
To ensure smooth functioning of the transport system, the posi-
tioning units and the width adjustment, grease the guide carriages
regularly.
The following sections describe how to lubricate the runner blocks:
Transport system AXI
Lubricating the AXI runner blocks
Transport system AXI

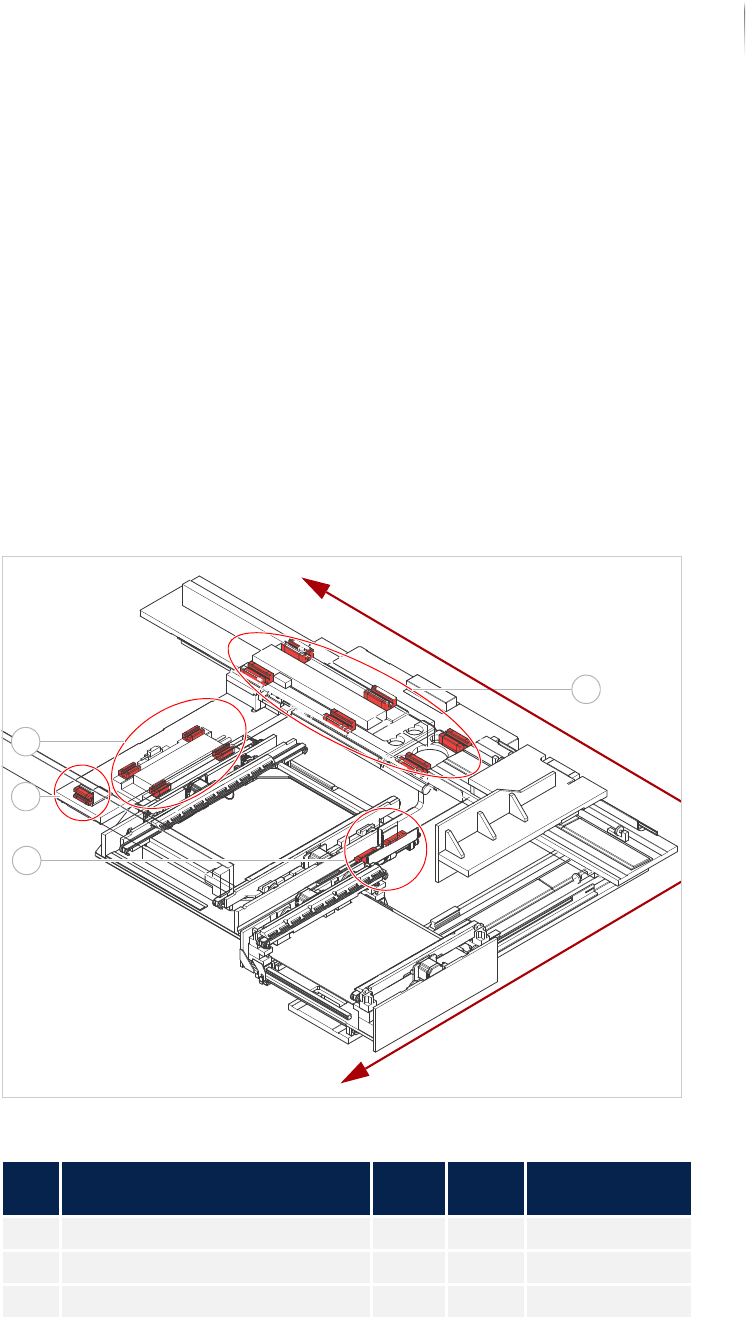

The following illustration indicates the position of the runner blocks
to be greased in the AXI transport section of the inspection
system:
Guide carriage, AXI section
Legend
No. Name Size Numbe
r
Grease in cm3
1 X-axis runner block 15 5 0.4
2 AXI transport track runner block 15 2 0.4
3 Y-axis runner block 25 6 1.4
3
1
2
X
Y
3
Maintenance
Lubricating the runner blocks - AXI
182
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
Lubricating the AXI runner blocks
Required: Lubricating grease KP2K, NLGI class 2 according to DIN 51818
Grease gun
Lubricating the
X-axis runner
block
Perform the following work steps:
1. Stand behind the inspection system and open the rear swing
doors.
2. Manually move the AXI transport track in the middle of the X-
axis of the AXI area.
3. Duck down to get better access to the runner blocks from
below.
Runner blocks A, B and C have grease nipple extensions. Guide
carriage D has a 45° angle grease nipple.
4. Check guide carriage and guide rails for contamination; clean if
required.
5. Grease the runner blocks A, B and C through the grease nipple
extensions; use 0.4 cm
3
grease.
A
B
C
D
