Installation Integrating th e inspection system into the line 86 Inspection system X7056 | Operating manual | Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a 7. Fasten the lock nuts of the ho using feet with an open-end w…
Installation
Integrating the inspection system into the line
85
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
5. Adjust the height of the inspection system by tuning its feet in
or out.
The PCBs are on the same height.
The height of the inspection system is adjusted.
Leveling the inspection system to horizontal
Precondition: The inspection system is properly set in place, see „Setting the
inspection system“ (Page 69).
Required: Two PCBs
Two 30mm open end wrench
Carpenter's level
NOTICE
It is also possible to work with two levels at the same time. Set
one level on the x-axis and the other on the y-axis of the posi-
tioning unit and level the system.
WARNING
Hazard of injury
The positioning unit contains strong permanent magnets.
Be careful with the level near the permanent magnets when
leveling the system.
Make sure that the level does not come in contact with the
permanent magnets.
Perform the following work steps:
1. Open the front lift door.
The system interior is open.
2. Set the level on the x-axis of the positioning unit (AOI X).
3. Set the inspection system in a horizontal position as indicated
by the level by turning in or out the housing feet.
The level indicates whether the system is horizontally level.
4. Set the level on the y-axis of the positioning unit (AXI Y).
5. Set the inspection system in a horizontal position as indicated
by the level by turning in or out the housing feet.
The level indicates whether the system is horizontally level.
6. If necessary, repeat steps 2 to 5, until the system is horizon-
tally levelled.
Installation
Integrating the inspection system into the line
86
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
7. Fasten the lock nuts of the housing feet with an open-end
wrench while re-tightening the screws with a second open-end
wrench.
The inspection system is horizontally level.
Adjusting the transport track width
WARNING
Hazard of injury
Crushing of the hand from movement of the transport track.
Do not reach into the transport track when adjusting the width.
Perform the following work steps:
1. Open the front lift door.

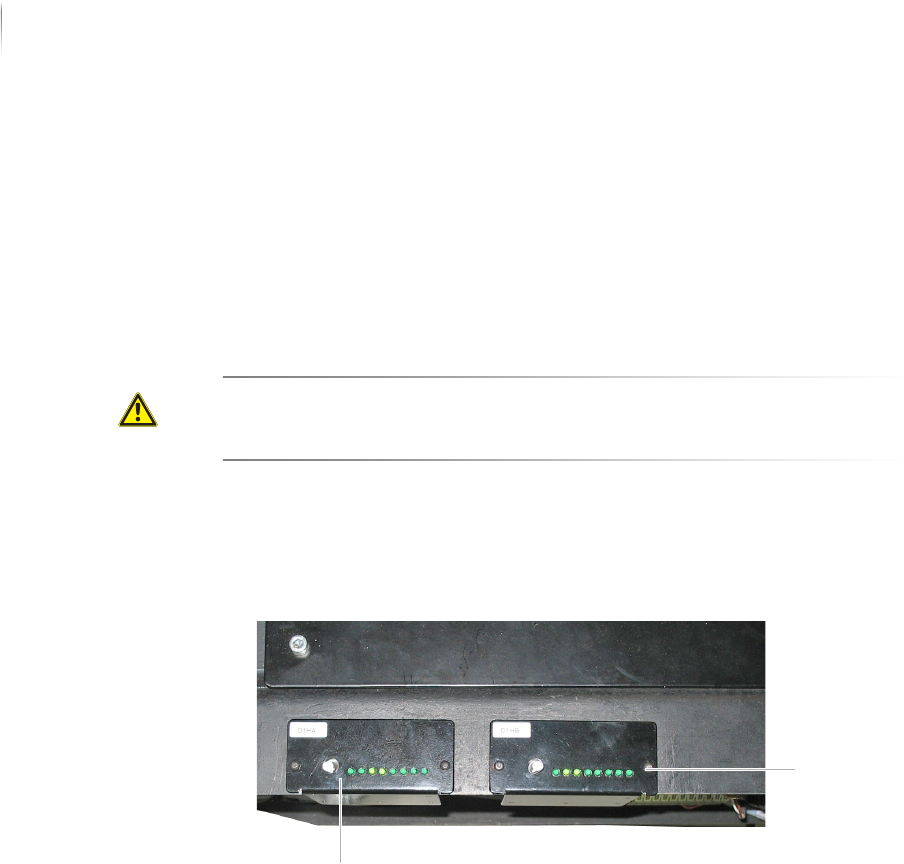

The rotary knobs for manual width adjustment of the AOI (1)
and AXI (2) transport track widths are located toward the front.
2. Adjust the transport track width:
Make sure that there is a 0.5 to 1 mm clearance between the
transport track and printed circuit board.
3. Press and turn the pressure knob clockwise to increase the
transport track width.
4. Press and turn the pressure knob counterclockwise to decrease
the transport track width.
The transport track width is set.
(2)
(1)
Installation
Integrating the inspection system into the line
87
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
Checking the transport track width
Perform the following work steps:

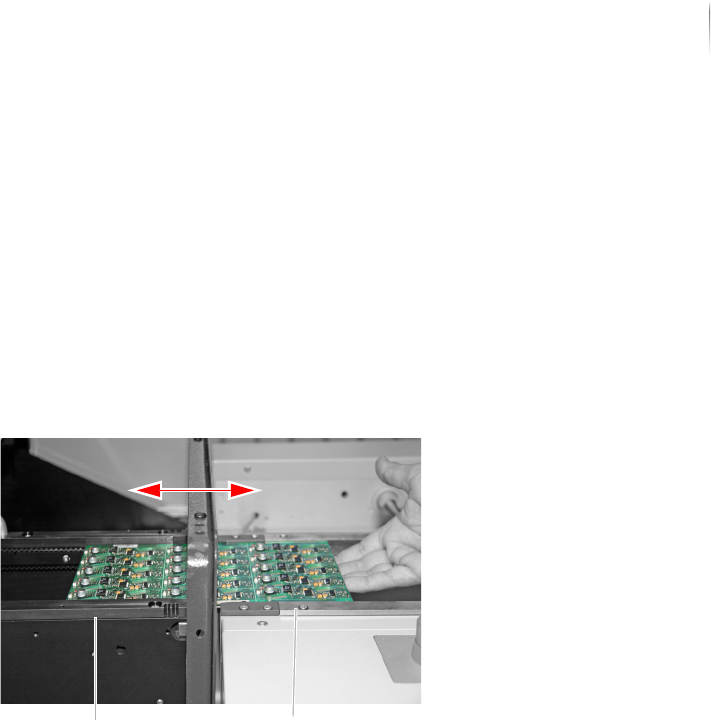

1. Place a PCB in the inspection system transport track that
adjoins the external transport conveyor of the production line.
2. Slide the PCB back and forth between inspection system and
conveyor belt.
The printed circuit board should not catch or get stuck, but
should be easy to slide between inspection system and trans-
port conveyor.
? Is the PCB difficult to move?
The transport track width is too narrow.
Set the transport track width, see step „Adjusting the trans-
port track width“ (Page 86).
The transport track width is checked.
Communication with adjacent devices
The communication with adjacent devices is provided by the
SMEMA/SV70 protocols and the Interlock linkage.
The following sections describe how to establish connection with
adjacent devices, step by step:
Open the pivoting frame (Page 87)
Connecting SMEMA/SV70
Linking the inspection system via Interlock
Open the
pivoting
frame
To get access to the communication plugs you have to open the
pivoting frame.
Required: 6 mm Allen (hex) key
Transport conveyor,
inspection system
Transport conveyor,
production line
