Maintenance
Exchanging the AXI transport belts
211
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
3. Use the cutting pliers to remove the cable ties from the cable
carrier.
4. Remove the connector and cable from their clips.
5. Disconnect the motor cable at the coupling.
6. Use the socket wrench (3 mm Allen socket) to unscrew the
drive motor cable clamp.
7. Use the socket wrench (2 mm Allen socket) to remove the
cable carrier mounting screws.

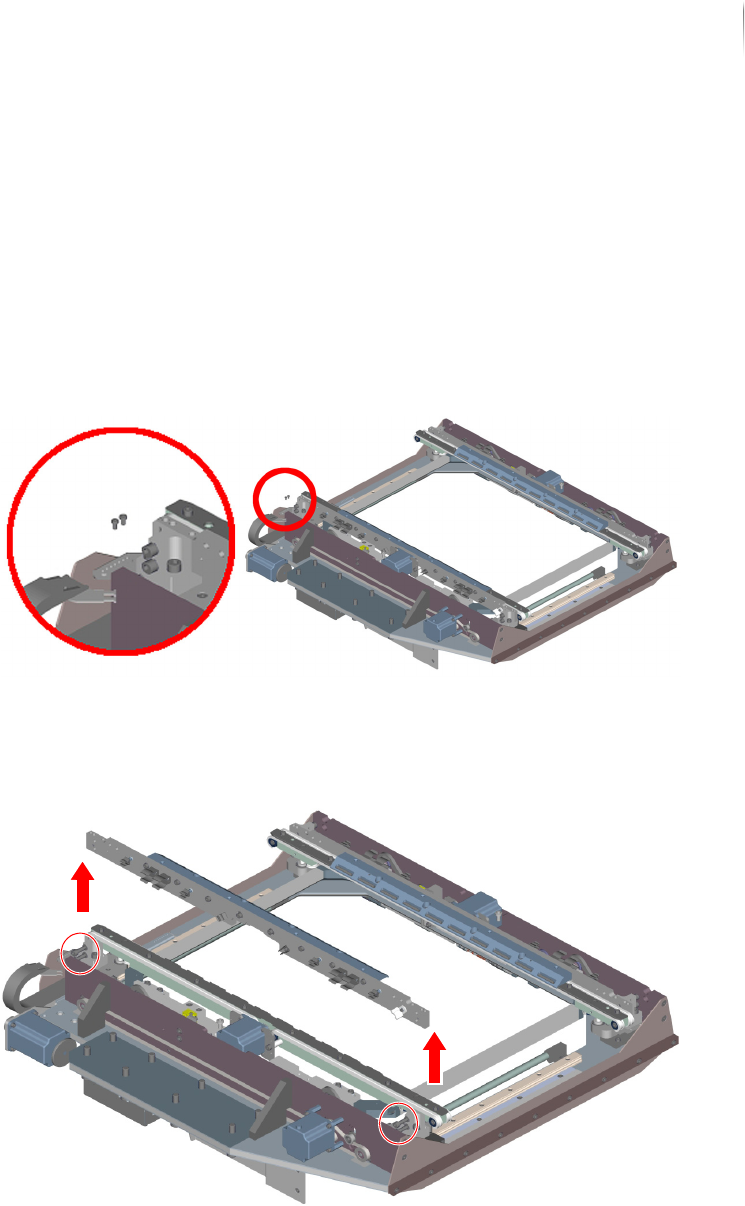

8. Use the socket wrench (5 mm Allen socket) to remove the
screws from the traverse. If none of the bores allow access to
the screws, use the shortened socket wrench (5 mm Allen
socket) for the fixed transport side plate.
Remove the traverse and put it aside.
Maintenance
Exchanging the AXI transport belts
212
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
9. Measure the PCB overlap width and note down the value for
installing the new transport belt.
10.Evenly remove the clamping unit without tilting or bending it;
carefully set it on the transport track.
Maintenance
Exchanging the AXI transport belts
213
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
11.Use the socket wrench (3 mm Allen socket) to remove the 8
screws from the end stop guide rail.
Now remove the end stop guide rail and put it aside.
12.Use the socket wrench (4 mm Allen socket) to remove the
drive motor (2 screws).
Remove the transport belt.
13.Repeat steps 1 to 12 for the transport belt on the fixed trans-
port side plate. To do so, pull the transport track to the front of
the AOI section.
The transport belts are removed.
