Operation Operating the inspection sy stem 158 Inspection system X7056 | Operating manual | Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a Closing the automatic operation window Perform the following work steps: Click …
Operation
Operating the inspection system
157
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
Interrupting PCB Inspection
Perform the following work steps:
Click S
TOP PCB INSPECTION (Page 116) in the operations bar.
The automatic PCB inspection is immediately interrupted.
Inspection operation is interrupted
Continuing Inspection Operation
Perform the following work steps:
Click S
TART PCB INSPECTION (Page 116) in the operations
bar.
Inspection operation continues at the point it was interrupted.
Inspection operation continues.
Ending inspection operation with PCB outfeed
Perform the following work steps:
Click E
ND INSPECTION OPERATION WITH OUTFEED (Page 116)
in the operations bar.
The automatic PCB inspection ends.
The PCB is outfed.
Inspection operation is ended and the PCB is outfed.
End inspection operation
Perform the following work steps:
Click E
ND INSPECTION OPERATION (Page 116) in the opera-
tions bar.
The automatic PCB inspection ends.
The PCB is not outfed.
Inspection operation is ended.
Operation
Operating the inspection system
158
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
Closing the automatic operation window
Perform the following work steps:
Click C
LOSE (Page 116) in the operations bar.
The Automatic Operation window is closed.
The VISCOM VISION PILOT (Page 110) start display opens.
The Automatic Operation window is closed.
Ending the Viscom software
Perform the following work steps:
1. Click V
ISCOM VISION PILOT (Page 110) in the SHUT DOWN
(Page 113) start display.
The window VVP INFORMATION (Page 145) is displayed.
2. Click Y
ES (Page 145).
The Viscom software is ended.
Operation
Switching off the inspection system
159
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
Switching off the inspection system
This section describes how to switch off the inspection system.
The work steps in detail:
Shutting down the operating system (Page 159)
Switching off the inspection system (Page 160)
Shutting down the operating system
Precondition: There are no more PCBs in the system.
The Viscom software is ended.
NOTE
The password for the VC Viewer is set to viscom by default. These
settings can be customized. Adapting the configuration must be
done by Viscom service personnel.
Shutting down
the AXI system
computer.
Perform the following work steps:

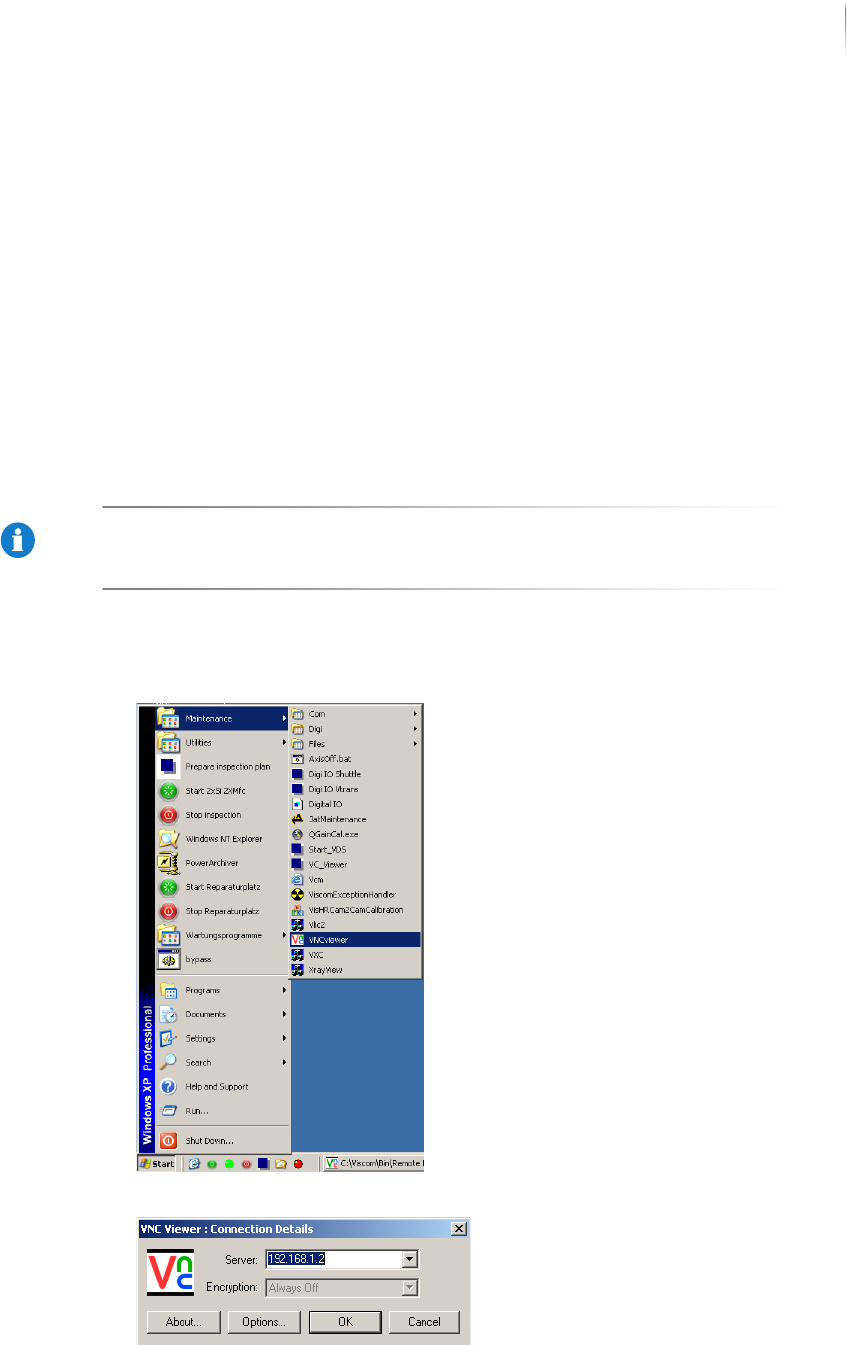

1. Click M
AINTENANCE > VNCVIEWER in the Windows start menu.
The monitor displays the VNC viewer start window.
