Maintenance
Lubricating the spindles and travel guides - AOI
186
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
Lubricating the spindles and travel guides
- AOI
This section describes the lubrication of spindles and guides for the
PCB clamping and width adjustment.
The following sections describe how to lubricate the spindles and
guides:
Transport track AOI
Lubricating spindles and guides
Transport track AOI
The following illustrations show the spindles and guides to be
greased in the AOI transport track.
Transport track AOI, view from below
Lubricating spindles and guides
Required: Lubricating grease KP2K, NLGI class 2 according to DIN 51818
Brush
Legend
No. Name
1 Width adjustment spindle
2 Register drive guide
3 Register drive spindle
4 Width adjustment spindle
5 Register drive spindle
6 Register drive guide
1
3
5
4
2
6
Maintenance
Lubricating the spindles and travel guides - AOI
187
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
WARNING
Hazard of injury
Turn off the system and secure it against accidental restart
before starting lubrication.
Perform the following work steps:
1. Check the guides and spindles for dirt and clean these compo-
nents as required.
2. Give the spindle threads and guides a thin coat of grease with
the brush.
3. Open and close the width adjustment, see „Installation“ >
„Adjusting the transport track width“ (Page 86).
4. Open and close the clamping.
5. Check if there is a visible grease film on the spindles and
guides.
6. Check the function and smoothness of the clamping and width
adjustment.
The spindles and guides are greased.
Maintenance
Lubricating the spindles and travel guides - AXI
188
Inspection system X7056 | Operating manual |
Version 3.1 Rev.006| 2016-01-06 | 30.009.1930a
Lubricating the spindles and travel guides
- AXI
This section describes the lubrication of spindles and guides for the
PCB clamping and width adjustment.
The following sections describe how to lubricate the spindles and
guides:
Transport track AXI
Lubricating spindles and guides
Transport track AXI

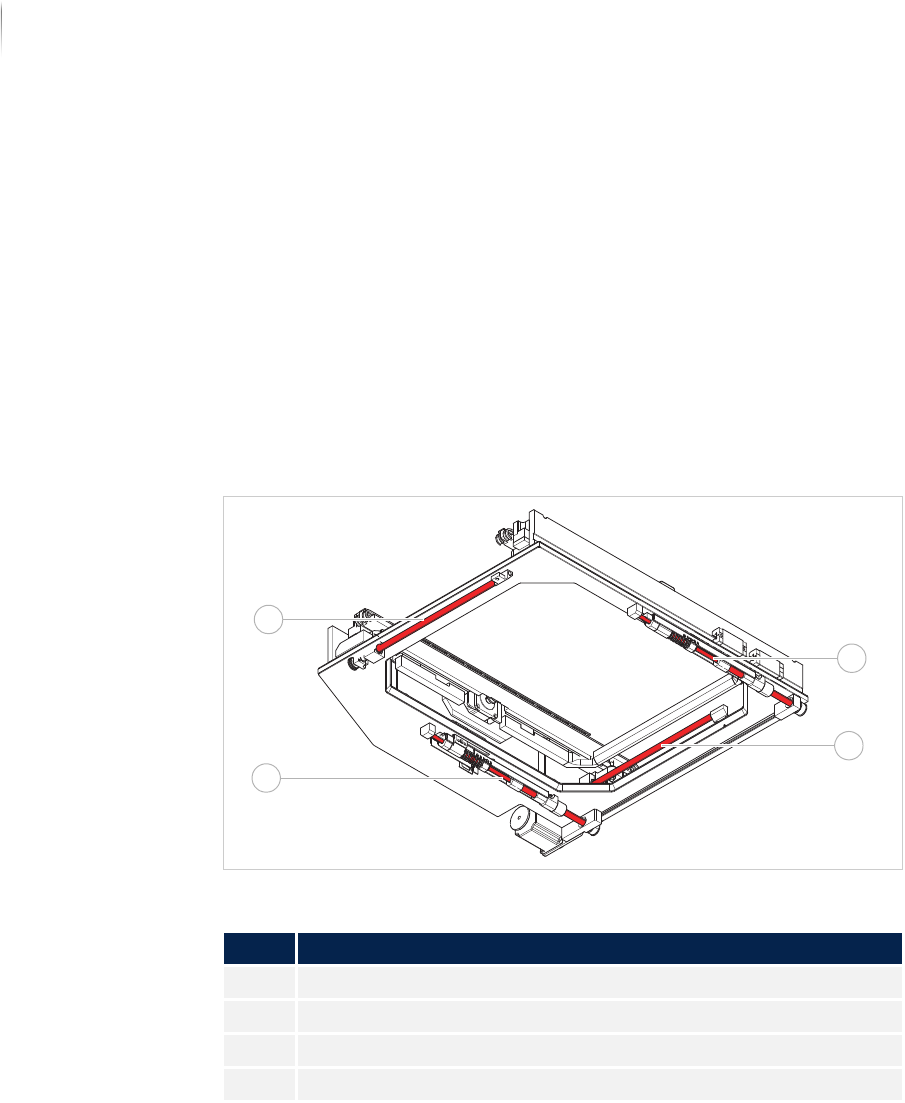

Transport track AXI, view from below
Lubricating spindles and guides
Required: Lubricating grease KP2K, NLGI class 2 according to DIN 51818
Brush
Legend
No. Name
1 Width adjustment spindles
2 Left register drive spindles and guides
3 Width adjustment spindles
4 Right register drive spindles and guides
1
2
4
3
