AHB01EOPP Fig. 1C3-1 Do not change the set air pressure. Otherwise, the pneumatic devices will not work normally . (a) The pressure switch is correctly set. Be sure not to adjust it. (Reference) 0.35 MPa (3.6 kgf/cm 2 ) …
AHB01EOPP
1.1 Inspections before Automatic Operation
1.1.1 Confirmation of Power Supply and Air Pressure
(1) Confirmation of Power Supply
Confirm that the local main breaker (the power supply to the ma-
chine) is "ON".
• Power Supply : 200 V AC, 3-Phase
• Apparent Power : Approx. 5 kVA for TIM-X100
(2) Confirmation of Air Pressure
Confirm that the air pressure is set to the value specified below.
• Main Pressure : 0.4 MPa (4.1 kgf/cm
2
)
• Air Blowing Pressure : 0.05 MPa (0.5 kgf/cm
2
)
• Z Clamping : Set Pressure 0.2 to 0.4 MPa
(2.0 to 4.1 kgf/cm
2
)
[Standard Value 0.2 MPa
(2.0 kgf/cm
2
)]
• Alignment in Y Direction : Set Pressure 0.3 to 0.4 MPa
(3.1 to 4.1 kgf/cm
2
)
[Standard Value 0.3 MPa
(3.1 kgf/cm
2
)]
"Alignment in Y Direction" means that the P.C.B. is pushed
in the Y direction by the Y pusher.
"Z Clamping" means that the P.C.B. is brought upward by
the clamp.

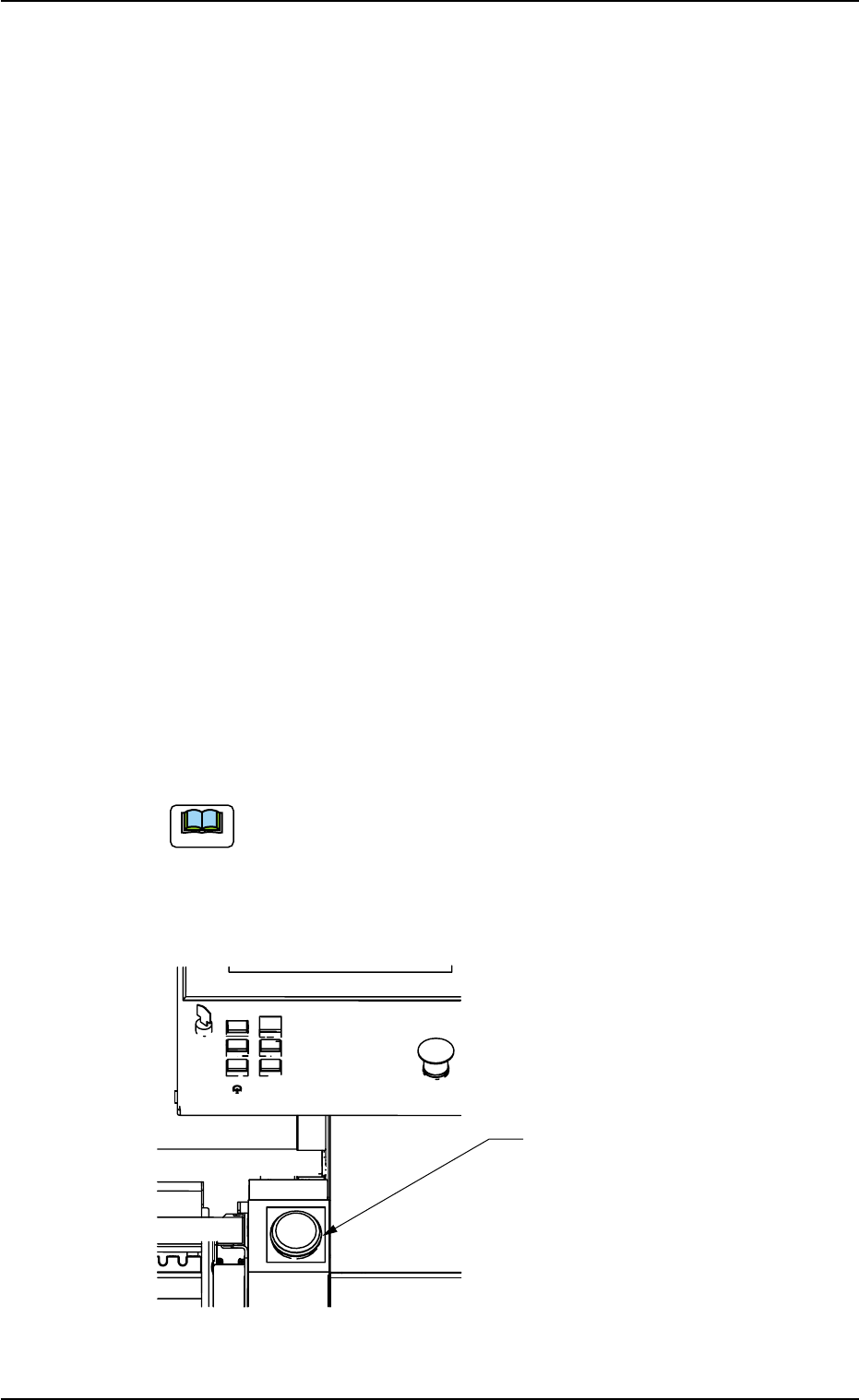

Fig. 1C3
1.1 Inspections before Automatic Operation
0308-005 3-2
Note
Main Pressure
0.4 MPa (4.1 kgf/cm )
2
AHB01EOPP

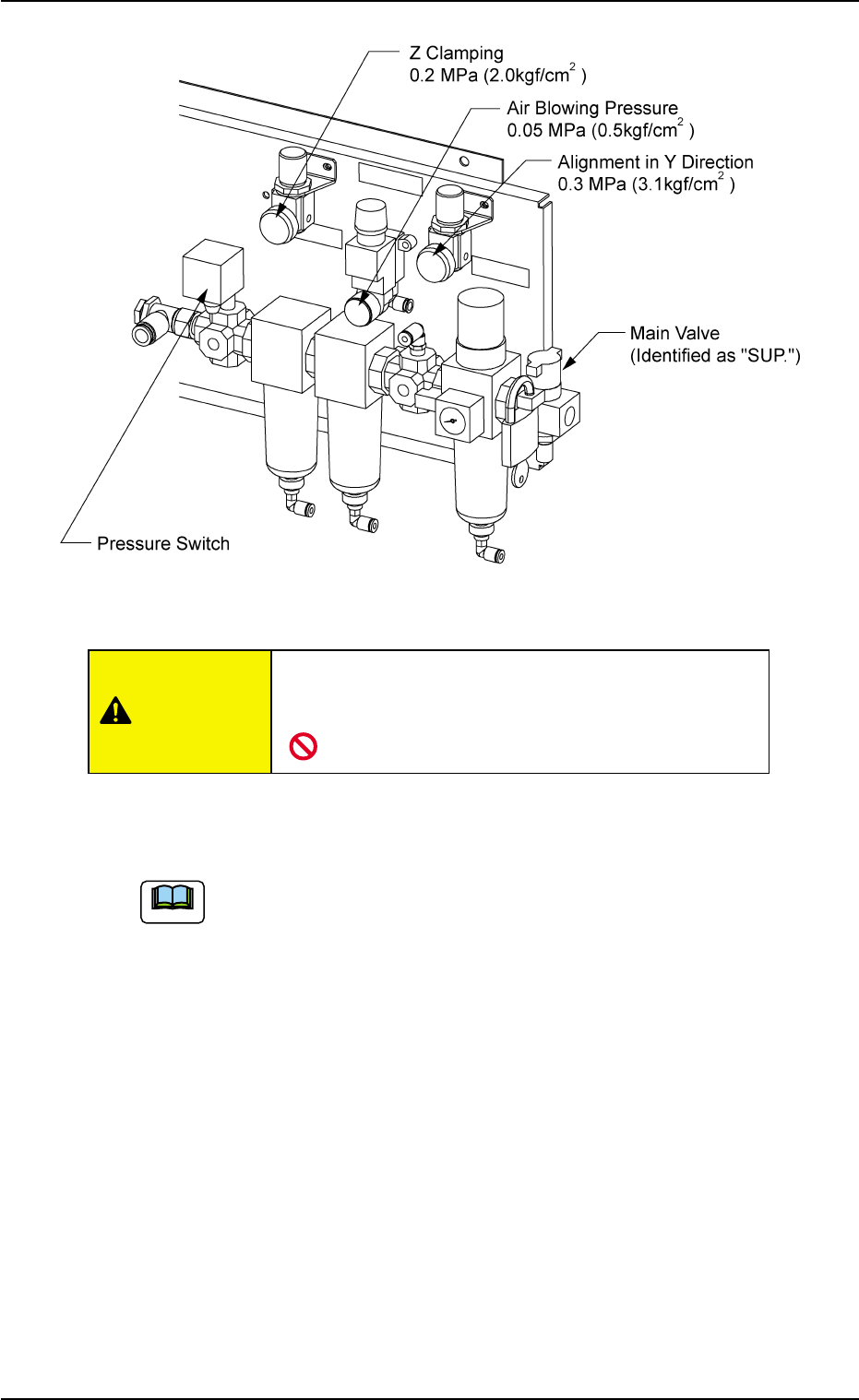

Fig. 1C3-1
Do not change the set air pressure. Otherwise, the
pneumatic devices will not work normally.
(a) The pressure switch is correctly set. Be sure not to adjust it.
(Reference) 0.35 MPa (3.6 kgf/cm
2
)
(b) Never adjust the air blowing pressure. The pressure is al-
ready set to "0.05 MPa (0.5 kgf/cm
2
).
(c) Dry and Clean Air
Be sure to use dry and clean air. If moisture, oil, dust, etc.,
enter a pneumatic device (air cylinder, etc., used in this
machine), it will result in a breakdown of the machine.
Dry and Clean Air:
Moisture : Dew Point -17°C or lower (Atmospheric Pres-
sure)
Oil : 0.1 mg/m
3
or less (ANR)
Dust : Solid Material 0.01 µm or less
1.1 Inspections before Automatic Operation
0308-004 3-3
Note
CAUTION
AHB01EOPP
1.1.2 Confirmation of Safety Doors and Feeder Base Pullout
Prevention Bars
(1) Confirm that the front and rear safety doors are closed.
(2) Confirm that all feeder base pullout prevention bars are closed.

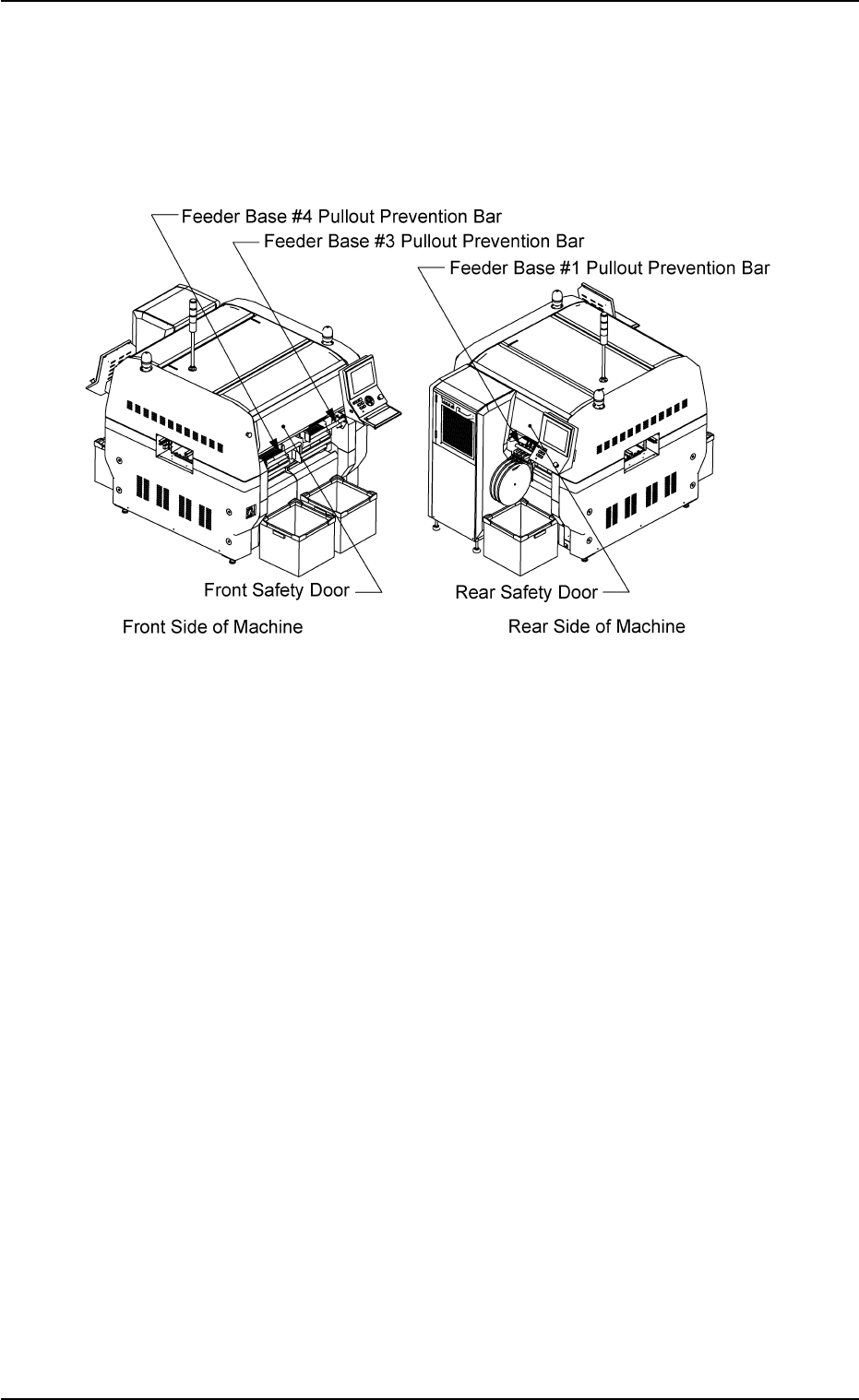

Fig. 1C4 Safety Doors
1.1 Inspections before Automatic Operation
0206-003 3 - 4
