Section 2

Basic Knowledge of Operation

0308-002 2-A AHB01EOPP

This section describes the basic items to be understood for

proper machine operations.

0107-001 2 - B AHB01EOPP

1. Basic Operations

1.1 Selection of Front or Rear Operation Panel

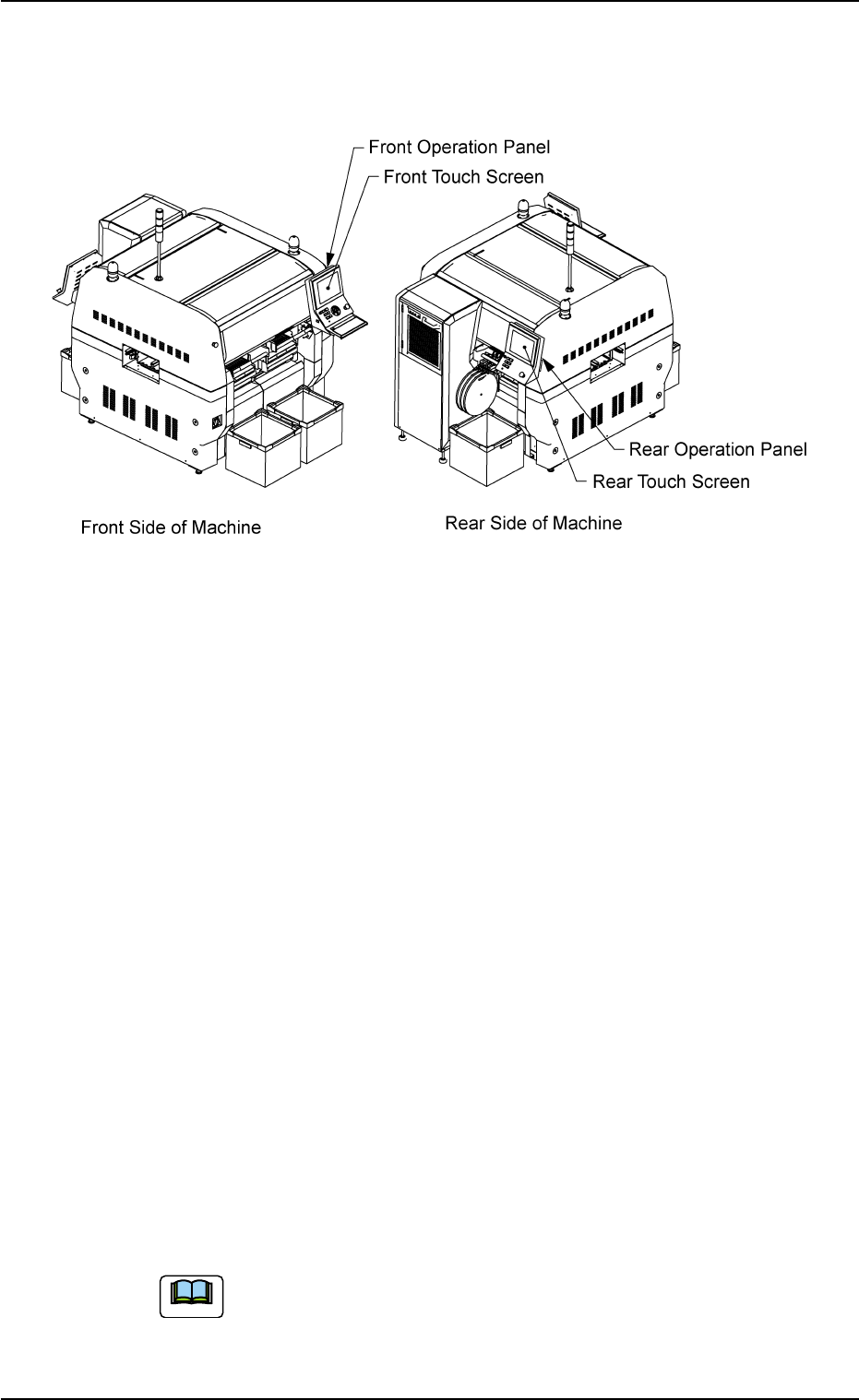

Fig. 1B1

The machine is equipped with operation panels on both front and rear

sides. Each operation panel has a touch screen and some switches

and buttons required to operate the machine.

One of the operation panels is always available (valid) in operations and

the other one can be selected with the [PNL CHANGE] button. It is im-

possible to activate both operation panels at the same time.

• When the [PNL CHANGE] button on the selected operation panel is

pressed, the LED of the button illuminates, indicating that the opera-

tion panel is set available in operations.

• When this button is pressed with the LED being "ON", the "LOCK"

lamp illuminates, indicating that only the panel is available in opera-

tions (Operation Locked).

• To cancel the "Operation Locked" mode, press the [PNL CHANGE]

button on the operation panel.

When the Operation Locked mode is canceled, the "LOCK" lamp

extinguishes.

• The other operation panel can be selected by pressing the [PNL

CHNGE] button on the unavailable (invalid) side only when the cur-

rently selected panel is not set in the "Operation Locked" mode.

• Either one of the operation panels can be selected regardless of the

operation mode (Ex. "RUN" or "PAUSE" mode) of the machine.

(a) When the machine is powered, the front operation panel

is activated (available).

(b) The pointing device and the keyboard can be used only

for operations on the front operation panel.
