2.5 Pre-Installation Checks
If the machine is installed in unsatisfactory environmental conditions, it
may malfunction due to damage or breakdown.
To avoid this, make preparations to install the machine as follows.
• The primary power source must be prepared on the local site.
Voltage : 200±20 V AC, 3-Phase
Apparent Power : Approx. 5 kVA for TIM-X100
• Our service personnel will connect the primary power source.
When any person other than our service personnel must connect
the primary power source, consult our marketing department or sales
agency beforehand.
• If the machine is scheduled to be transferred to another place, please
contact our marketing department or sales agency beforehand.
• Select a place solid enough to support the mass of the machine.
Ref.: It is recommended that the machine should be installed on the first floor.
When the machine has to be installed on a floor other than the first one,
please contact our marketing department or sales agency for details.
• Avoid any place that vibrates severely.
Fig. 1X17
Fig. 1X18
2.5 Pre-Installation Checks
Fig. 1X19
• Ambient temperature must be 20±10°C and humidity 30% to 80%. Any dew
condensation must be avoided.
• When the machine is transferred to another place and the ambient temperature
rises more than the surface of the machine, dew may condense under the
condition described below.
Note that dew condensation may cause the machine to break down.
Condition of Dew Condensation
Dew may condense when the difference (based on "Humidity (%)") between the
ambient temperature of the destination (the place where the machine was
transferred) and the surface temperature of the machine reach the values or
more in the table below.
• Ensure that the selected place is free of electric noise, etc.
• Precautionary measures (prevention of noise generation, etc.,) must be taken for
other equipment to prevent malfunctions.
0308-004 1 9 AHB01EOPP
Humidity (%) of Destination
Differences between Ambient Temperature of
Destination and Surface Temperature of Machine
80 3°C or more
70 6°C or more
60 8°C or more
50 10°C or more
40 14°C or more
30 18°C or more
Fig. 1X20
2.5 Pre-Installation Checks
0308-004 2 0 AHB01EOPP

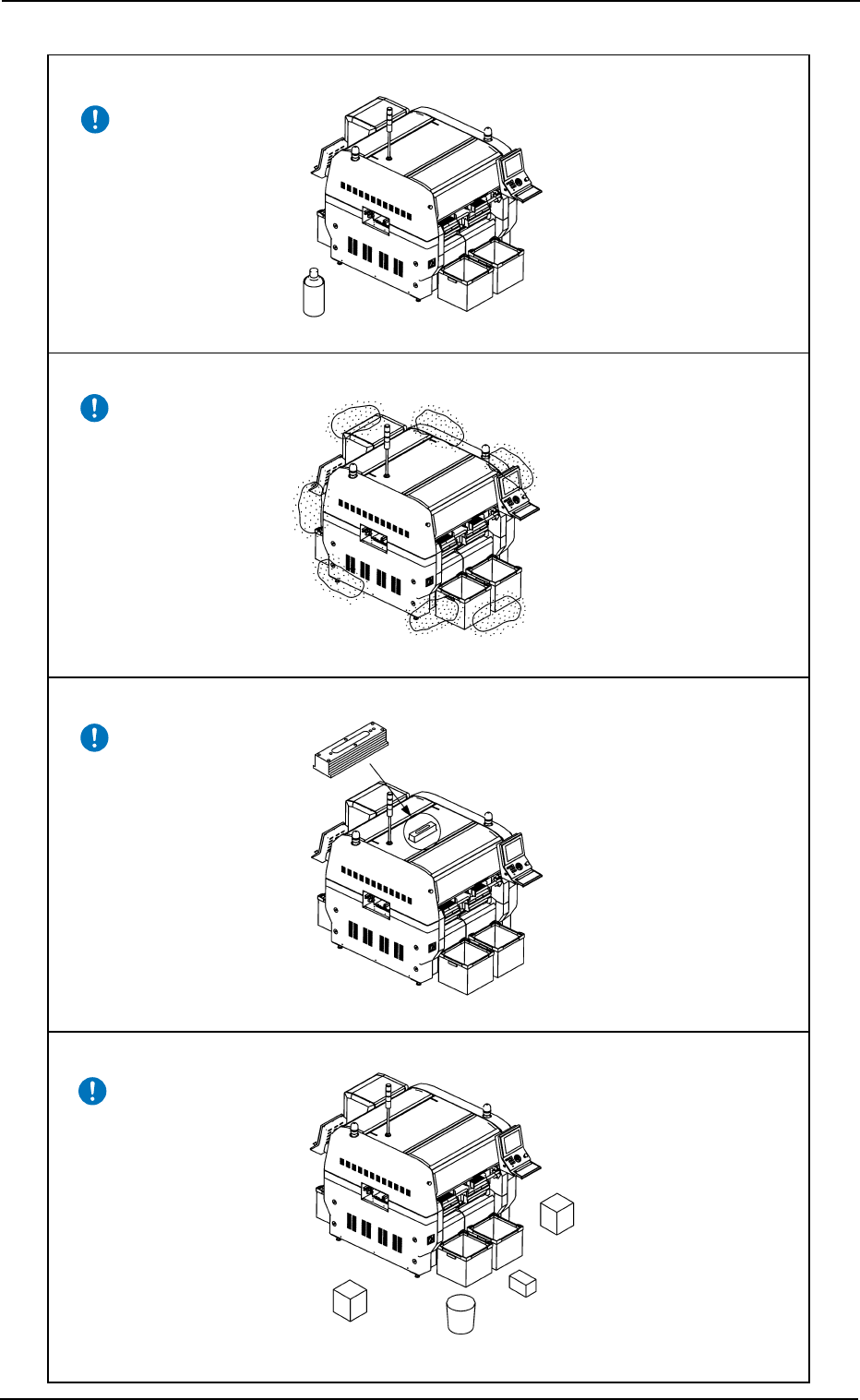

2.5 Pre-Installation Checks
• Do not expose the machine to combustible or corrosive gas.
• Select a place free of lamp soot and dust.
Fig. 1X21
• Level the machine at the correct height, using a level vial.
Fig. 1X22
• The machine should be free of obstacles around it for easy maintenance.
Fig. 1X23
Fig. 1X24
