AHB01EOPP
2. "PASS" Mode
When the machine is set in the "PASS" mode, it just carries the P.C.B.
(input conveyor Æ P.C.B. positioning section Æ output conveyor) to the
output conveyor without placing any components on the P.C.B.
When the machine must transfer P.C.B.’s to the output machine with-
out placing any components, follow the steps below.
2.1 Start of "PASS" Operation
(1) Confirm that the front and rear safety doors are closed.
(2) Set the [OPERATION] switch on the front operation panel to "RUN".
Be sure to remove the key from the machine.
Fig. 1C28
(3) Check the surroundings of the machine and confirm safety before
starting the "PASS" operation.
Check carefully that there is no person around the
moving mechanisms of the machine. (Especially, the
other side of machine operation).
Make sure that no objects (tools, parts, etc.) remain
within the moving mechanisms of the machine.
0308-002 3-25
MULTI FUNCTIONAL MOUNTER
STOP
LOCK
OPERATION
RUN SETUP
START
ENABLE
PNL CHANGE
READY
POWER ON
EMERGENCY
2. "PASS" Mode
CAUTION
AHB01EOPP
(4) Press the [OPN. MODE] button on the submenu bar to open the
"OPN. MODE" window (submenu). After that, press the [PASS] but-
ton (entitled "RUN MODE") in the "Run Mode" tab sheet.
Fig. 1C29
(5) Perform the zeroing operation in the "Origin/Signal Info." tab sheet
of the "AUTO OPN." window (submenu).
Fig. 1C30 "Origin/Signal Info." Tab Sheet (Provided with Multi-Layer Tray Feeder #2)
0308-004 3-26
2.1 Start of "PASS" Operation
AHB01EOPP
(a) The tab sheet may look different, depending on which op-
tions are selected.
(b) When "z" marks are not displayed for all devices other
than "Conv. Wid. Adj. Axis" in the "Origin Information" group
box of the "Origin/Signal Info." tab sheet, the pass opera-
tion cannot be started.

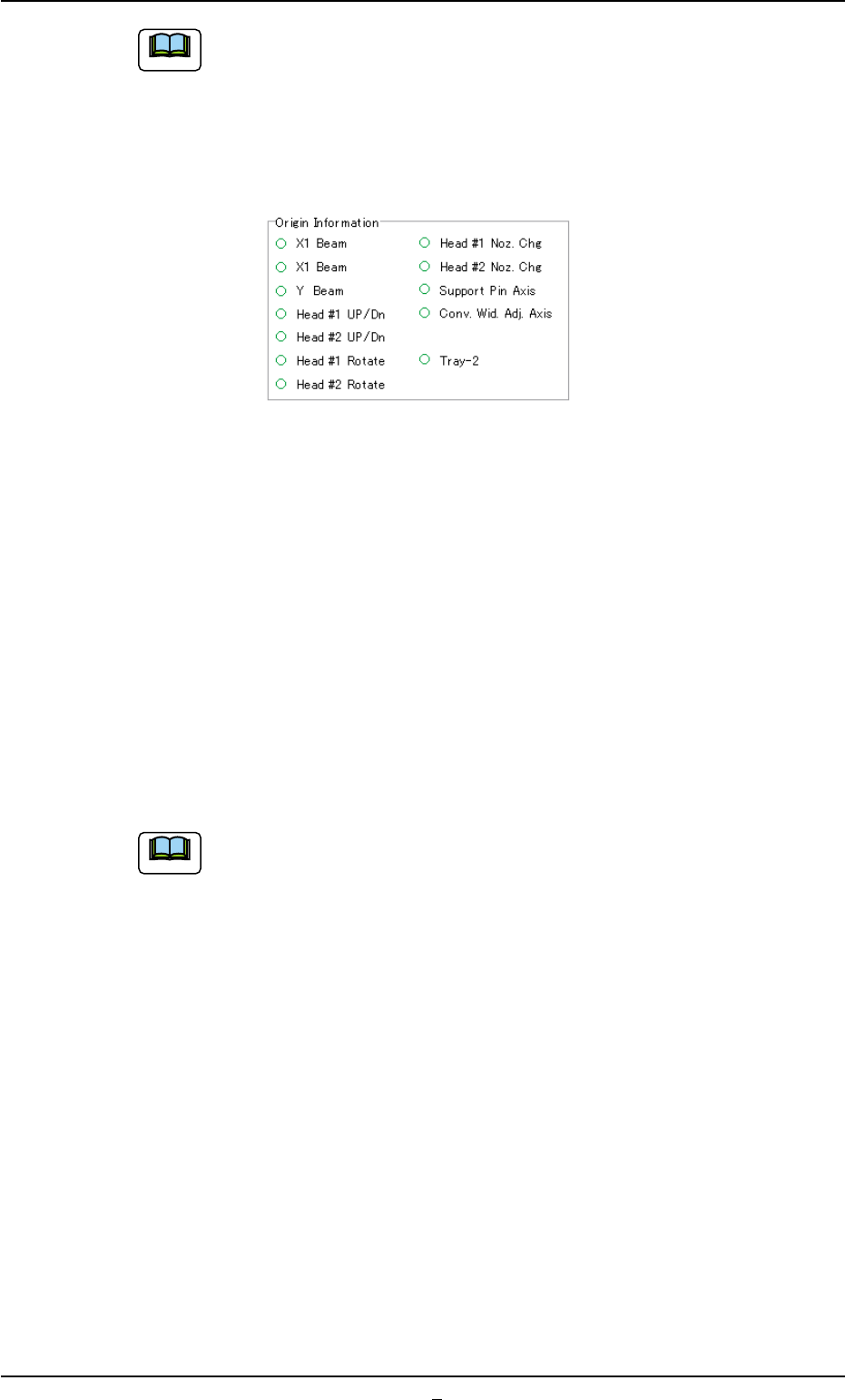

Fig. 1C31 Origin Information (Provided with Multi-Layer Tray Feeder #2)
When "z" mark is not displayed for a device (s) other than "Conv. Wid.
Adj. Axis", follow the operation procedure below to perform a zeroing
operation for the device (s).
Operation Procedure
1. Confirm that the machine is set in the "STOP" mode.
2. Confirm that the front and rear safety doors are closed.
3. When the [ALL] button (entitled "ZERO") is pressed, all devices ex-
cept "Conv. Wid. Adj. Axis" (one of the devices displayed in the "Ori-
gin Information" group box of the "Origin/Signal Info." tab sheet) are
zeroed.
The tab sheet may look different, depending on which options
are selected.
(6) Confirm that the lamp of the [READY] button illuminates in green.
Otherwise, press the [READY] button and wait until the lamp illumi-
nates.
0206-003 3-27
2.1 Start of "PASS" Operation
Note
Note
