0308-005 1 8 AHB01EOPP 2. 5 Pre-Installation Checks If the machine is installed in unsatisfactory environmental conditions, it may malfunction due to damage or breakdown. T o avoid this, make preparations to install the …

2.4 Precautionary Measures before Maintenance Work

Air Source Section

• Before maintenance work, be sure to lock the power breaker and

the main valve section (air source) with padlocks.

Power Breaker : Set the power breaker to the "OFF" side and lock

it with a padlock.

Air Source : Stop the air supply, set the main valve to the

"EXH." side, and lock the valve with a padlock.

• Designate a person who can have charge of the padlock key.

• If the provided padlock is lost or damaged, purchase its substi-

tute.

Power Supply Section

2.4 Precautionary Measures before Maintenance Work

• Only qualified personnel should perform maintenance work carefully in

compliance with the specified procedures.

0308-003 1 7

AHB01EOPP

Padlock

(630 061 9737)

Main Valve

WARNING

Fig. 1X15

Fig. 1X16

0308-005 1 8 AHB01EOPP

2.5 Pre-Installation Checks

If the machine is installed in unsatisfactory environmental conditions, it

may malfunction due to damage or breakdown.

To avoid this, make preparations to install the machine as follows.

• The primary power source must be prepared on the local site.

Voltage : 200±20 V AC, 3-Phase

Apparent Power : Approx. 5 kVA for TIM-X100

• Our service personnel will connect the primary power source.

When any person other than our service personnel must connect

the primary power source, consult our marketing department or sales

agency beforehand.

• If the machine is scheduled to be transferred to another place, please

contact our marketing department or sales agency beforehand.

• Select a place solid enough to support the mass of the machine.

Ref.: It is recommended that the machine should be installed on the first floor.

When the machine has to be installed on a floor other than the first one,

please contact our marketing department or sales agency for details.

• Avoid any place that vibrates severely.

Fig. 1X17

Fig. 1X18

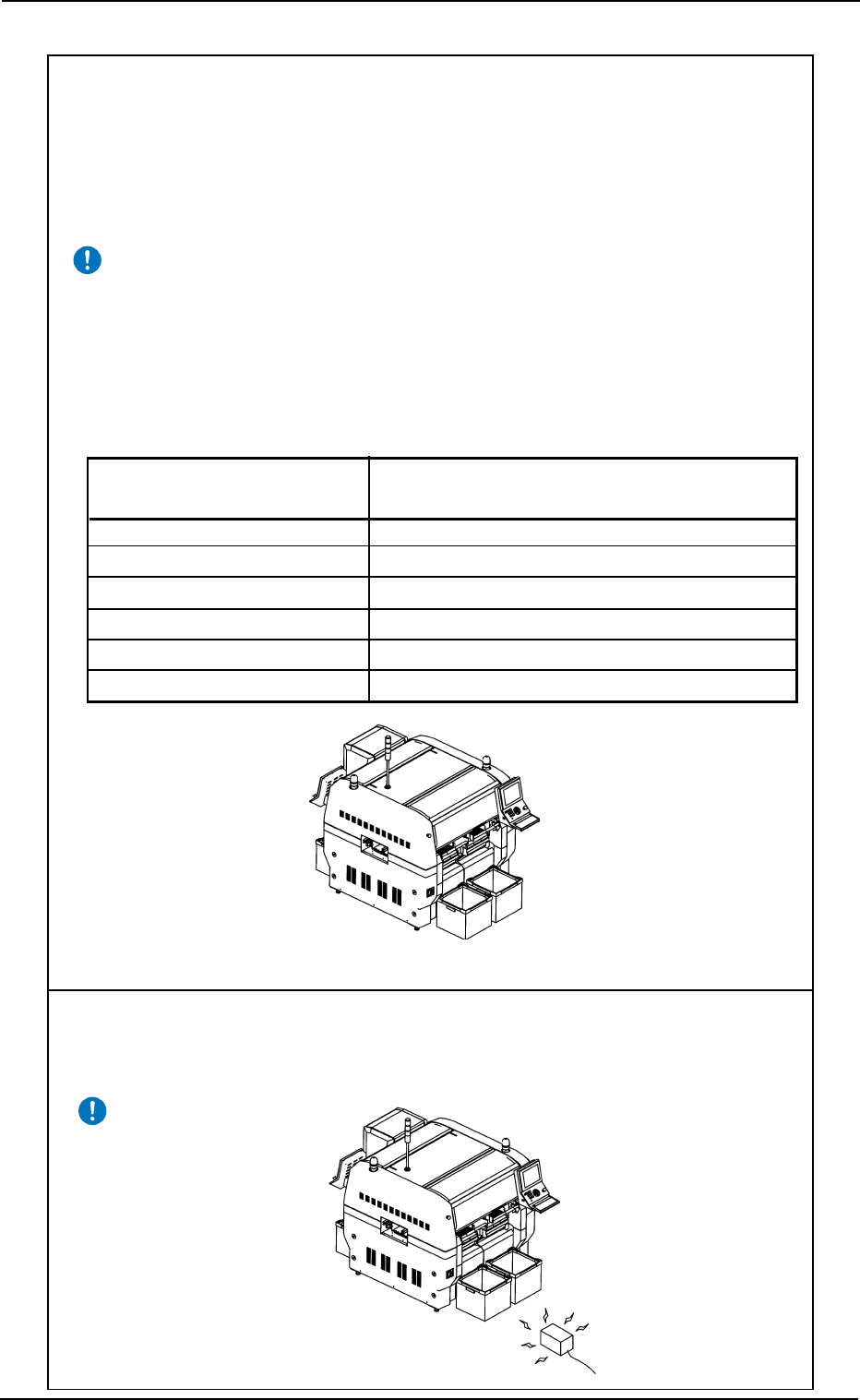

2.5 Pre-Installation Checks

Fig. 1X19

• Ambient temperature must be 20±10°C and humidity 30% to 80%. Any dew

condensation must be avoided.

• When the machine is transferred to another place and the ambient temperature

rises more than the surface of the machine, dew may condense under the

condition described below.

Note that dew condensation may cause the machine to break down.

Condition of Dew Condensation

Dew may condense when the difference (based on "Humidity (%)") between the

ambient temperature of the destination (the place where the machine was

transferred) and the surface temperature of the machine reach the values or
