AHB01EOPP (4) Press the [OPN. MODE] button on the submenu bar on the touch screen. The "OPN. MODE" window opens. Press the [PLACE] but- ton (entitled "RUN MODE") in the "Run Mode" tab sheet.…
AHB01EOPP
1.3 Start of Automatic Operation
Operation Procedure
(1) Check the surroundings of the machine and confirm safety before
starting the automatic operation.
Check carefully that there is no person around the
moving mechanisms of the machine. (Especially, the
other side of machine operation).
Make sure that no objects (tools, parts, etc.) remain
within the moving mechanisms of the machine.
(2) Confirm that the front and rear safety doors and the feeder base
pullout prevention bars are closed.
(3) Confirm that the [OPERATION] switch on the front operation panel
is set to the "RUN" side and be sure to remove the selection key
from the machine.
Fig. 1C16
1.3 Start of Automatic Operation
0308-003 3-12
MULTI FUNCTIONAL MOUNTER
STOP
LOCK
OPERATION
RUN SETUP
START
ENABLE
PNL CHANGE
READY
POWER ON
EMERGENCY
CAUTION
AHB01EOPP

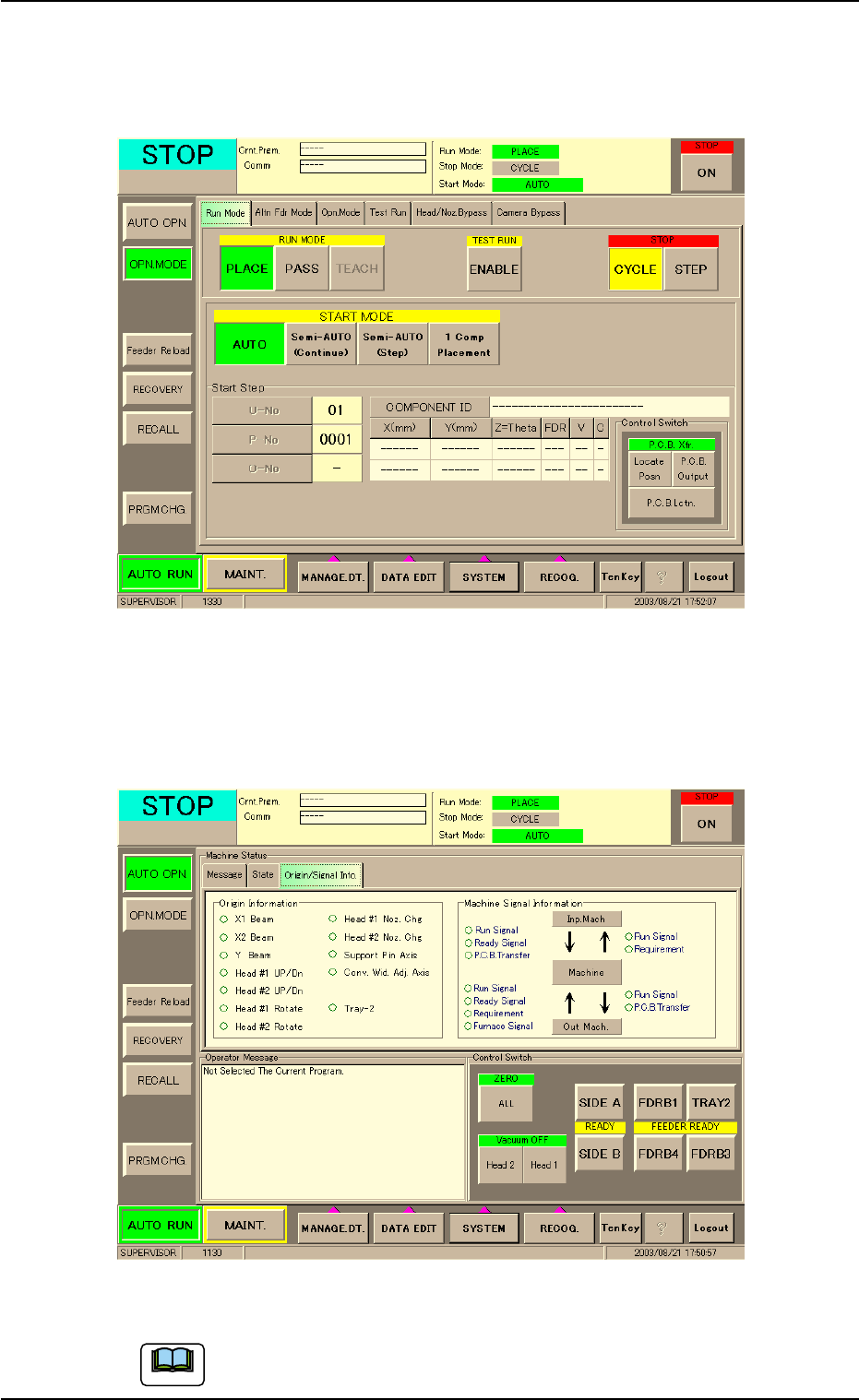

(4) Press the [OPN. MODE] button on the submenu bar on the touch
screen. The "OPN. MODE" window opens. Press the [PLACE] but-
ton (entitled "RUN MODE") in the "Run Mode" tab sheet.
Fig. 1C17
(5) Press the "Origin/Signal Info." tab in the "AUTO OPN." window
(submenu). The "Origin/Signal Info." tab sheet opens. Check the
origin marks.
Fig. 1C18 "Origin/Signal Info." Tab Sheet (Provided with Multi-Layer Tray Feeder 2)
The tab sheet may look different, depending on which options
are selected.
0308-004 3-13
1.3 Start of Automatic Operation
Note
AHB01EOPP

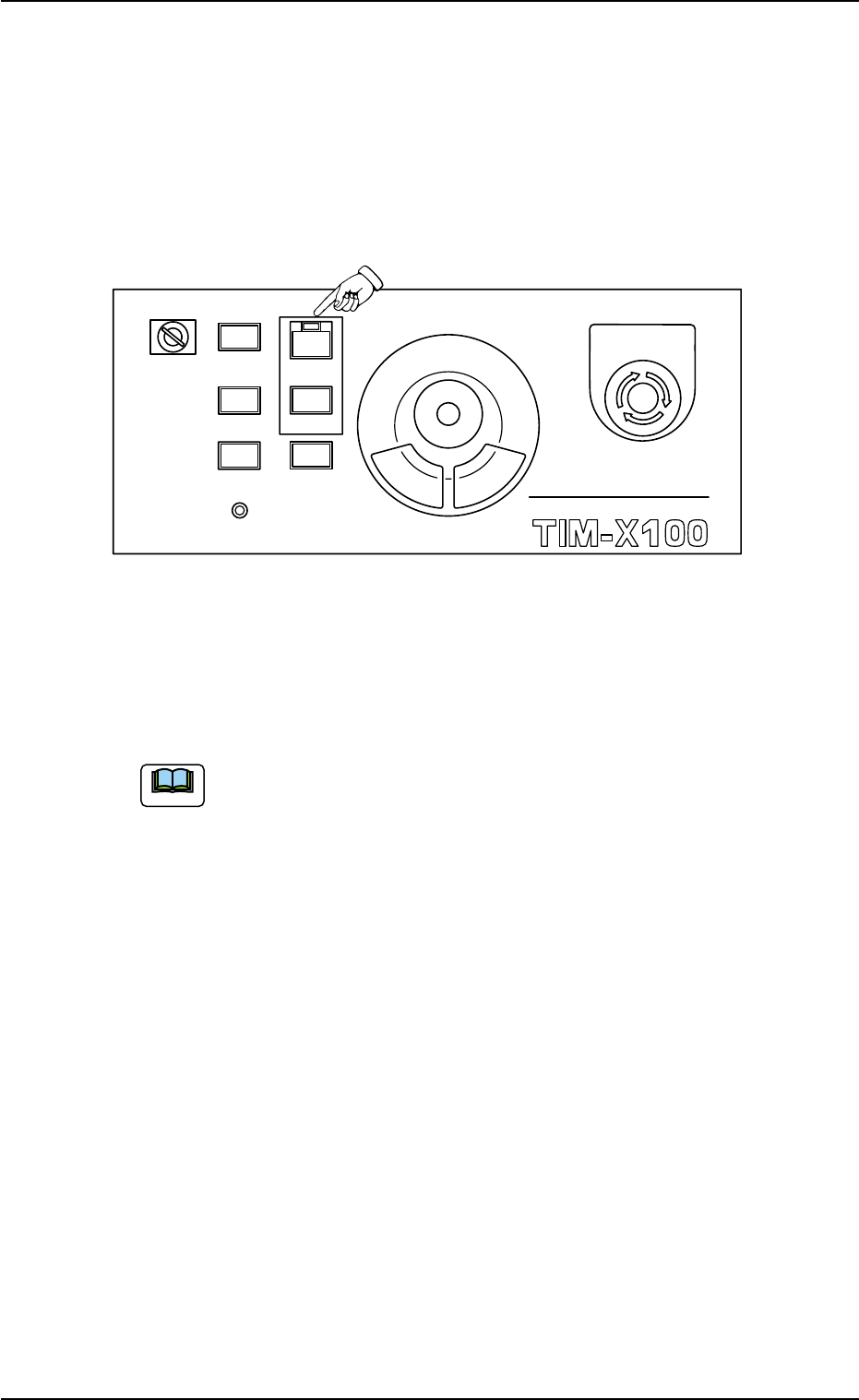

(6) Confirm that the lamp of the [READY] button illuminates in green.
Otherwise, press the [READY] button and wait until the lamp illumi-
nates.
(7) When the [START] button on the front operation panel is pressed
while the lamp is flickering, the automatic operation (placement)
starts.
Fig. 1C19
When the automatic operation (component placement) starts, the
lamp of the [START] button on the front operation panel illuminates
in green and the green lamp of the light tower also goes on.
(a) When a window other than the "AUTO OPN." one (main
menu) is active, it is impossible to start the automatic op-
eration because the lamp of the [START] button does not
flicker.
(b) When a P.C.B. already exists in the P.C.B. positioning sec-
tion, the machine discharges the P.C.B. without placing
any component on the P.C.B.
0308-003 3-14
Note
MULTI FUNCTIONAL MOUNTER
STOP
LOCK
OPERATION
RUN SETUP
START
ENABLE
PNL CHANGE
READY
POWER ON
EMERGENCY
1.3 Start of Automatic Operation
