AHB01EOPP 1 . 6 End of Automatic Operation 1.6.1 Stop of Automatic Operation (1) Confirm that the [CYCLE] button (*1, entitled "STOP") is selected. (2) When the [ON] button (*3, entitled "STOP") is pr…

AHB01EOPP

1.5.2 Interruption with [EMERGENCY STOP] Switch

Use the [EMERGENCY STOP] switch to immediately stop the machine

in an emergency.

An error alarm is issued and the LED of the [POWER ON] button illumi-

nates in red.

Fig. 1C22

Refer to "Section 4 Remedy of Simple Trouble" for the proce-

dures to reset the machine to the normal condition from an

emergency stop.

[EMERGENCY STOP] Switch

[EMERGENCY STOP]

Switches

Front Side of Machine

Rear Side of Machine

1.5 Interruption of Automatic Operation

0308-004 3-20

Note

AHB01EOPP

1.6 End of Automatic Operation

1.6.1 Stop of Automatic Operation

(1) Confirm that the [CYCLE] button (*1, entitled "STOP") is selected.

(2) When the [ON] button (*3, entitled "STOP") is pressed, each device

returns to its stationary position after the machine has placed com-

ponents on the P.C.B.’s inside the machine.

The LED of the [START] button and the green lamp (tower light)

extinguish and the automatic operation stops.

Fig. 1C22-1

When "STEP" is set as "Stop Mode" (*1), select the [CYCLE]

button (*2, entitled "STOP") in the "Run Mode" tab sheet.

"CYCLE" is set as "Stop Mode" (*1).

0308-004 3-21

1.6 End of Automatic Operation

Note

AHB01EOPP

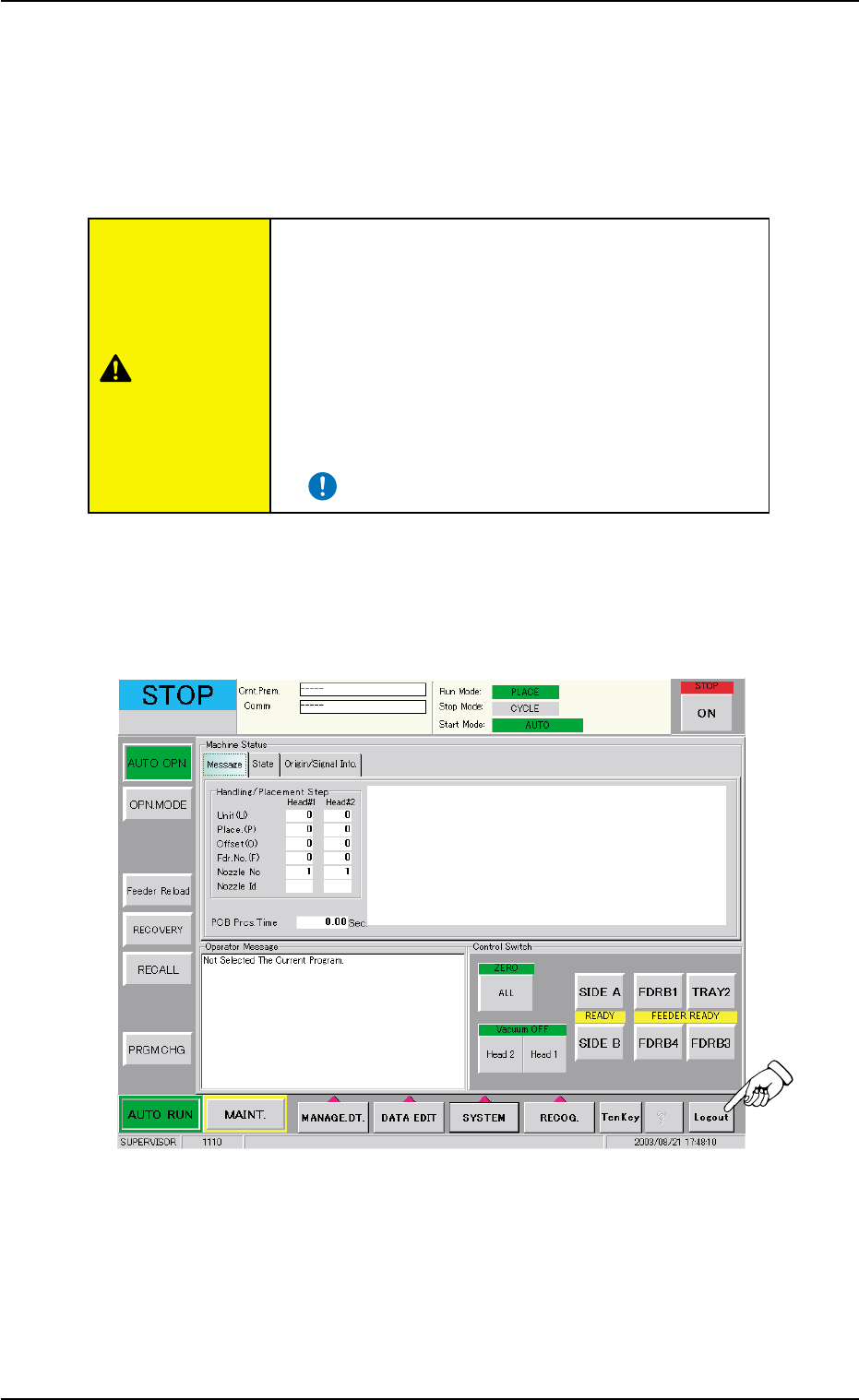

1.7 Shut-Down Operation

1.7.1 Procedure for Shut-Down Operation

The following explains how to shut down the power to the machine.

Be sure to log out from an operation window to open

the "Login Type Selection" window and go through the

shutdown procedure by pressing the [SHUT DOWN]

button before turning off the power to the machine.

• When the power is shut down at a window other

than the "Login Type Selection" window, the save

data (the management data, various data on the

hard disk, etc.) may be deleted.

Operation Procedure

(1) Press the [Logout] button on the main menu bar.

Fig. 1C23

0308-004 3-22

1.7 Shut-Down Operation

CAUTION
