1.2.1 Operation Windows
Various operation windows appear on the touch screen for parameter
settings (data input).
Basically, operations become available by touching the buttons in a win-
dow.
To enter alphanumeric characters, open the ten-key pad or the keyboard
by pressing the pertinent key in an operation window and press the de-
sired keys on the ten-key pad or the keyboard.
(a) The front operation panel is equipped with a keyboard and a
pointing device.
The keyboard and the pointing device can be used to work
with operation windows.
(b) The pattern program and component library data can be
edited in the edit windows, using the keyboard and the point-
ing device.
1.2 Touch Screen
0107-001 2-2 AHB01EOPP
Note
1.2.2 Notes on Handling Touch Screens
(1) Since the touch screen uses the molecules in liquid crystals, handle
it like glass.
Do not apply strong pressure to the touch screen.
Do not apply strong pressure to the touch screen.
Otherwise, it may easily break.
Do not press the touch screen with a force of 0.78 N
(80 gf) or more.
(2) When temperature is low at power-up, the brightness of the back
light drops. The deterioration is not abnormal. The brightness re-
sumes normal after a few minutes.
When the back light is turned on or off repeatedly at low tempera-
ture, the life will be shortened.
(3) Cleaning of Touch Screen
Be sure to turn off the [POWER ON] button before
cleaning work.
Otherwise, the touch screen will react to your touch
during cleaning, resulting in data corruption.
When the surface of the touch screen gets dirty, wipe off the dirt
and dust with a soft cloth soaked in ethanol.
Do not use acetone, thinner, benzine, etc., to clean
the touch screen.
If the surface is wiped with an organic solvent, the
surface of the touch screen may melt or get cloudy.
1.2 Touch Screen
0308-002 2-3 AHB01EOPP
CAUTION
CAUTION
CAUTION
2. Starting or Exiting from the Application
2.1 Getting Started
(1) When the [POWER ON] button on the operation panel is pressed, it
illuminates in yellowish green and the self-diagnostics function starts.
(a) Press and hold the [POWER ON] button for more than 1
second.
(b) It takes 2 to 3 minutes until the self-diagnostics operation is
completed. Please wait for a while.
When the self-diagnostics operation is completed, the "Login Type
Selection" window appears on the touch screen.

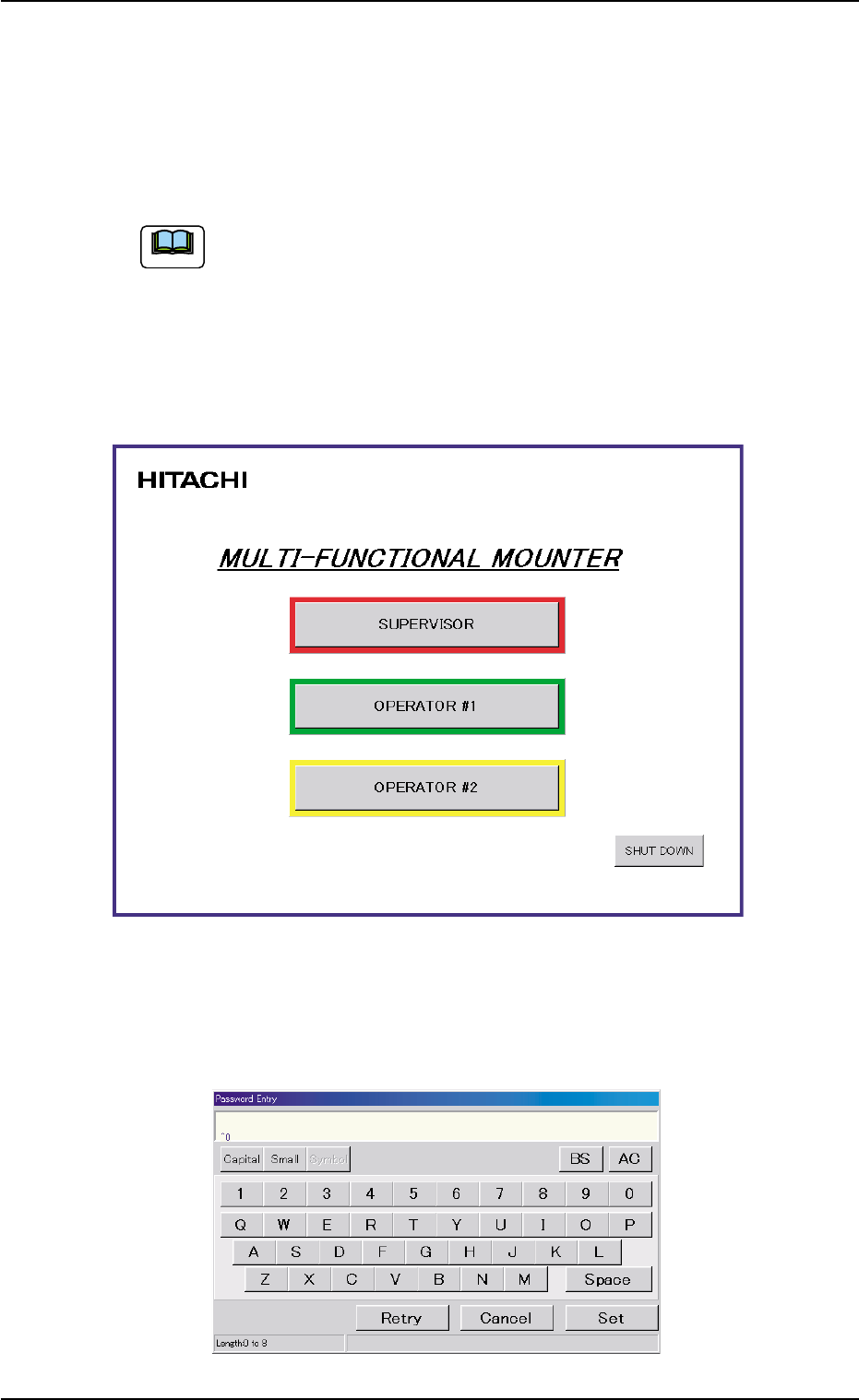

Fig. 1B2 "Login Type Selection" Window
(2) Press the [SUPERVISER], the [OPERATOR #1], or the [OPERA-
TOR #2] button according to the given authority.
The "Password Entry" window opens.
Fig. 1B3 "Password Entry" Window
2. Starting or Exiting from the Application
Note
