4.2.5 Excessively Inserted Nozzle Detection Sensors These sensors are provided to protect the placement heads against any vacuum nozzle that is excessively inserted due to an error in the pattern program. Fig. 1X42 Senso…

4.2.3 X-Axis Collision Detection Sensor

This sensor is provided to detect that both heads have approached

abnormally for protection of the X/Y beam.

Fig. 1X41 Lower Surface of Machine

Sensor Name Symbol Countermeasures

X-Axis Collision Detection

4.2.4 Beam Synchronous Deviation Detection Sensor

This sensor is provided to detect the deviations of both Y axes for pro-

tection of the X/Y beam.

Sensor Name Symbol Countermeasures

Beam Synchronous

Deviation Detection

4.2 Module Protection Sensors

Table 1X12

When this sensor is turned OFF (light emitted and not

received), the following measures are taken.

• Both heads stop rapidly.

BPH035

Table 1X13

When this sensor is turned OFF (light emitted and re-

ceived), the following measures are taken.

• The excitations of the beam X/Y axis and the nozzle

U/D axis are shut off.

(At the same time, the nozzle U/D axis is braked.)

BPH038

0206-002 3 7 AHB01EOPP

4.2.5 Excessively Inserted Nozzle Detection Sensors

These sensors are provided to protect the placement heads against

any vacuum nozzle that is excessively inserted due to an error in the

pattern program.

Fig. 1X42

Sensor Name Symbol Countermeasures

Excessively Inserted

Head #1 Detection

(Light Projecting Side)

Excessively Inserted

Head #1 Detection

(Light Receiving Side)

Excessively Inserted

Head #2 Detection

(Light Projecting Side)

Excessively Inserted

Head #2 Detection

(Light Receiving Side)

4.2 Module Protection Sensors

0206-002 3 8 AHB01EOPP

Table 1X14

When one of these sensors is turned OFF (light emit-

ted and not received), the following measures are taken.

• The excitations of the beam X/Y axis and the nozzle

U/D axis are shut off.

(At the same time, the nozzle U/D axis is braked.)

BPH025T

BPH025R

BPH025T

BPH025R

4.2.6 Nozzle U/D Axis Pass Line Detection Sensors

These sensors are provided to protect the placement heads when the

nozzle U/D axis has dropped during movement of the X/Y beam.

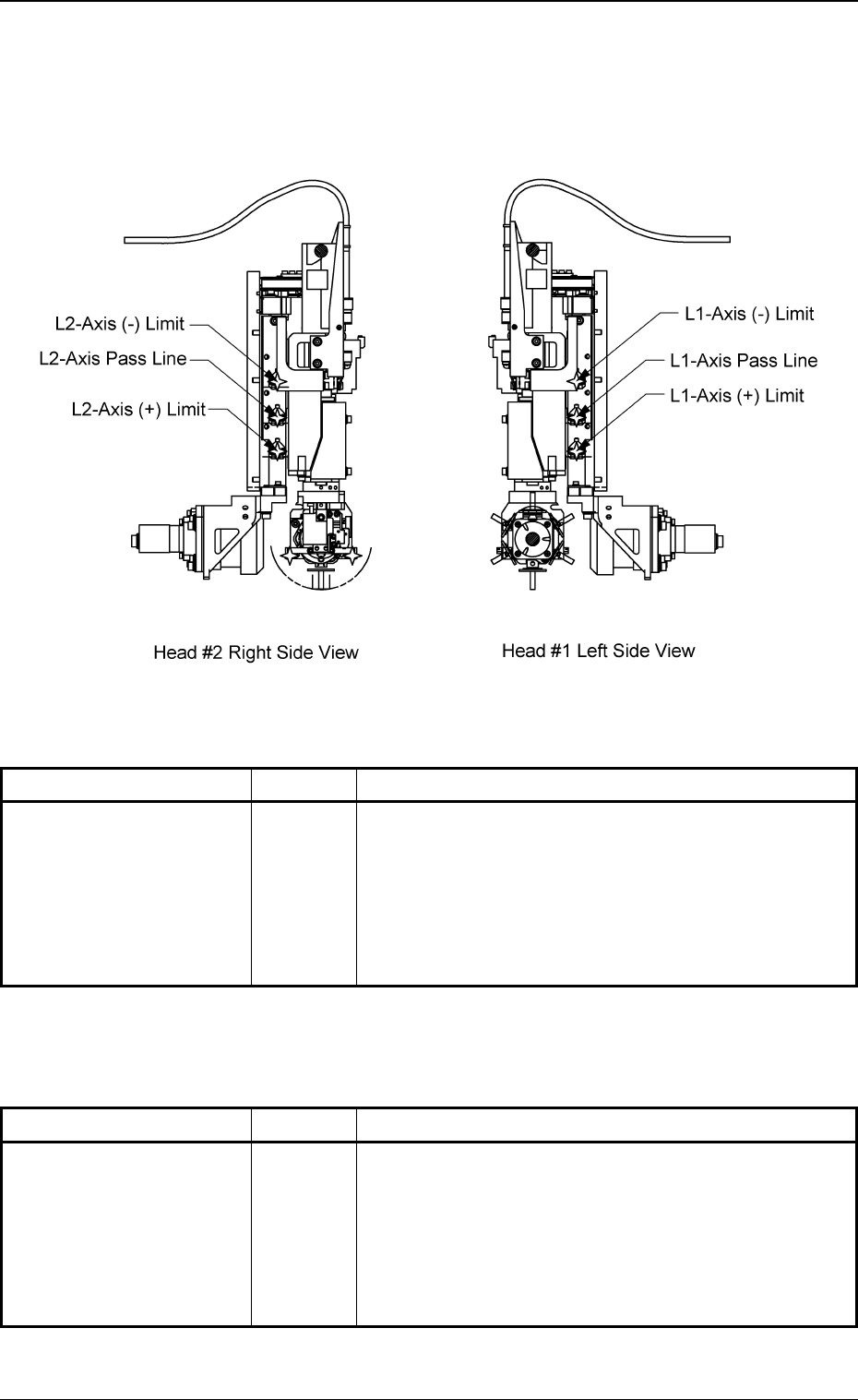

Fig. 1X43

Sensor Name Symbol Countermeasures

Pass Line Detection

4.2.7 L-Axis Limit Detection Sensors

Sensor Name Symbol Countermeasures

(+) Limit Detection

(-) Limit Detection

4.2 Module Protection Sensors

0206-001 3 9 AHB01EOPP

Table 1X15

When this sensor is turned OFF (light emitted and not

received) while the X/Y beam is moving, the following

measures are taken.

• The excitations of the beam X/Y axis and the nozzle

U/D axis are shut off.

(At the same time, the nozzle U/D axis is braked.)

BPH023

Table 1X16

When one of the left sensors is turned off (E/NR) while

the X/Y beam is moving, the following measures are

taken. (E/NR: Light Emitted and Not Received)

• The excitation of the nozzle U/D axis is shut off.

(At the same time, the nozzle U/D axis is braked.)

BPH022

BPH021
