Do not put any foreign substance on the nozzle stocker section. Otherwise, the machine will break down. • Keep the diffusion plates of the vacuum nozzles clear of oil, nicks, etc. Otherwise, an error may oc- cur during c…
2.4.9 Nozzle Stocker Section
Fig. 1A36
The nozzle stocker section is provided with a mechanism that stores
the vacuum nozzles.
The placement head moves over to the nozzle stocker and the selected
vacuum nozzles are attached or detached according to the pattern pro-
gram data.
Storage Capacity of Vacuum Nozzles
Nozzle Stocker B1: Max. 10 pcs.
Nozzle Stocker B2: Max. 10 pcs.
0206-002 1-34
AHB01EOPP
Rear Side of Machine
Front Side of Machine
(Top View)
(Rough View)
Nozzle Stocker B1
Nozzle Stocker B2
Nozzle Stocker B2
Nozzle Stocker B1
Note
2.4 Main Units
Do not put any foreign substance on the nozzle
stocker section. Otherwise, the machine will break
down.
• Keep the diffusion plates of the vacuum nozzles
clear of oil, nicks, etc. Otherwise, an error may oc-
cur during component recognition.
• Do not bring a magnet close to any vacuum nozzle.
Otherwise, an error may occur during component
picks and placement.
0308-002 1-35
AHB01EOPP
2.4 Main Units
CAUTION
CAUTION
3. Surface Mounting Mechanism
The following briefly describes how components are mounted on P.C.B.’s.
(a) The explanation is based on the P.C.B. flow diretion "From
Left to Right (L Æ R)" and the P.C.B. positioning reference
"Rear Left" (L-BACK).
(b) Refer to "1. Scope of Actions" in "Section 2" of "Vol. 2: Op-
eration (Supervisor)" for details.
3.1 P.C.B. Transfer and Positioning
P.C.B. Transfer (from the input machine)
The P.C.B. transferred from the input machine is carried by the L
conveyor and is stopped at the standby position by P.C.B. Stopper
P1.

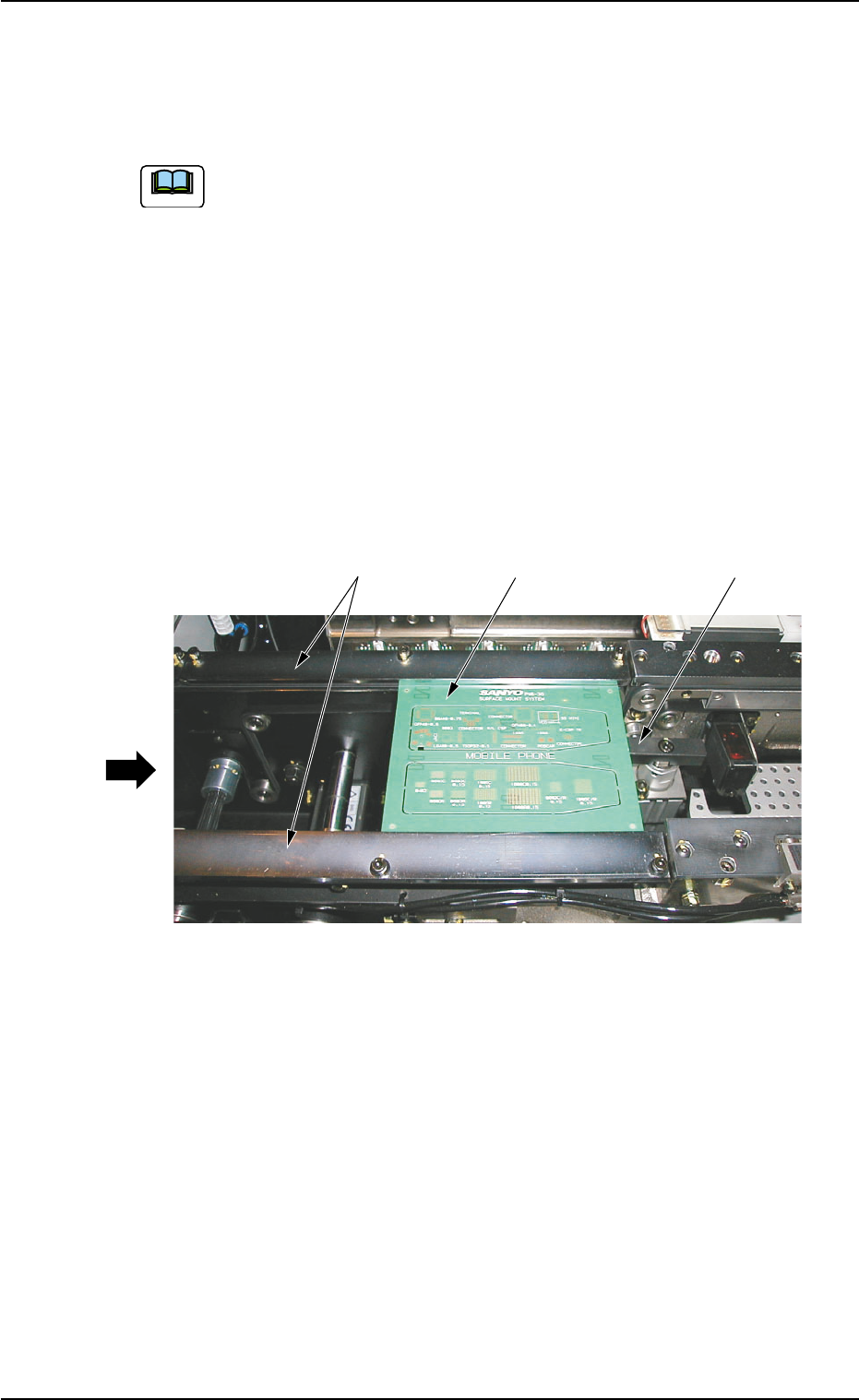

Fig. 1A37 L Conveyor
P.C.B. Positioning (PRI PCB STR)
P.C.B. Stopper P1 descends and the P.C.B. which has moved to
the P.C.B. positioning section from the standby position is stopped
by P.C.B. Stopper P2.
The P.C.B. is held firmly by the clamping plate on the P.C.B. posi-
tioning section.
3. Surface Mounting Mechanism
01 12-002 1-36 AHB01EOPP
Note
P.C.B. Stopper P1
P.C.B.
L Conveyor
Onput Machine
