1. What is Multi-Functional Mounter
The multi-functional mounter places various types of electronic compo-
nents (called "components" hereinafter) precisely on the specified spots
of P.C.B. surfaces.
This machine can also handle various types of components from minia-
ture components to large and irregular-shaped ones.
Fig. 1A1
1. What is Multi-Functional Mounter
Placement Head
Electronic Component
0107-001 1-1 AHB01EOPP
2. Name and Function of Each Section
2.1 General View
Refer to the items described in "2.2", "2.3", and "2.4" for each section.
2.1.1 Front Side of Machine

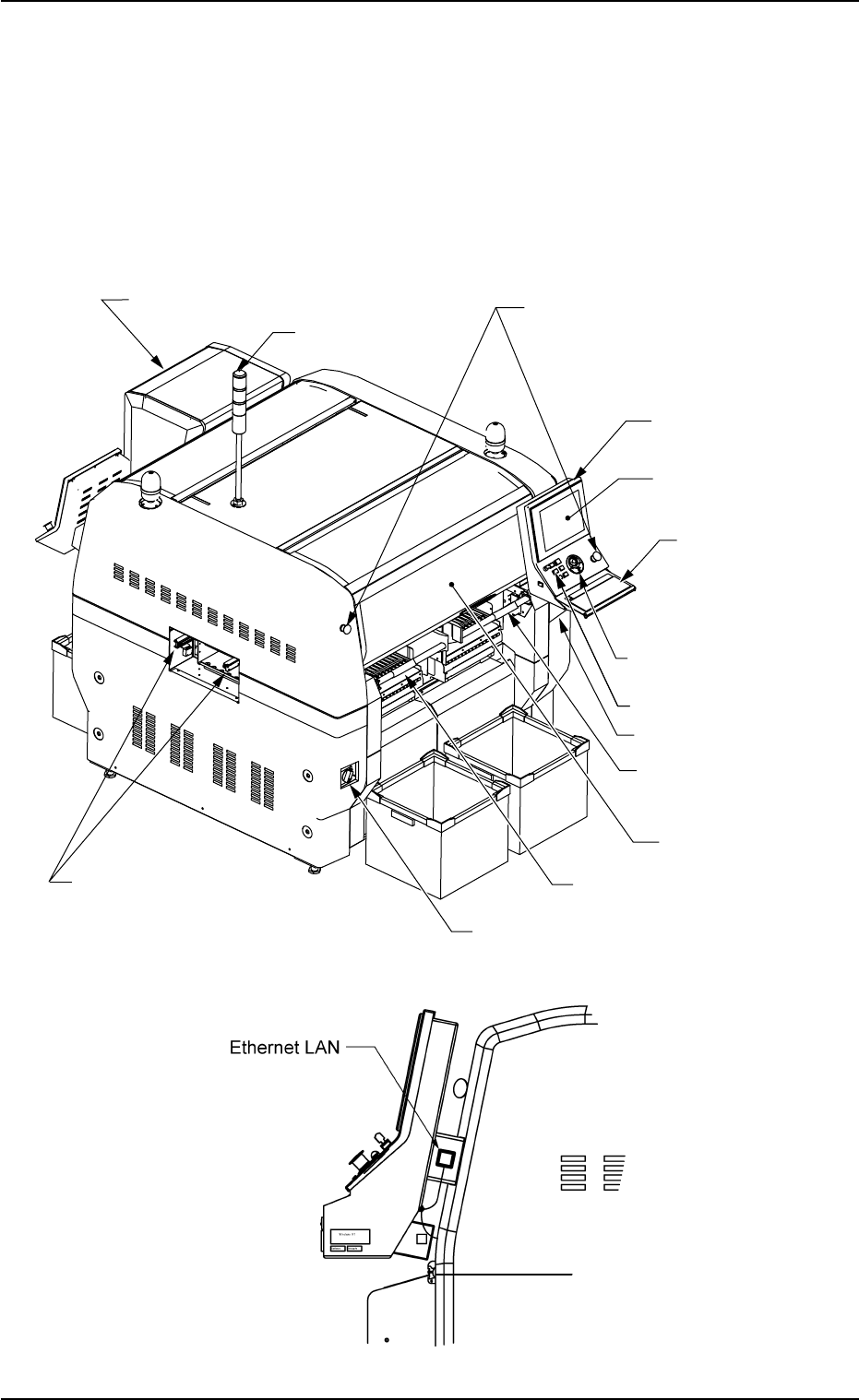

Fig. 1A2 Front Side of Machine
Fig. 1A2 Side View of Front Operation Panel
2. Name and Function of Each Section
Front Touch Screen
Front Operation
Panel
Pointing Device
Keyboard
Service Panel
Feeder Base #3
Pullout Prevention Ba
r
Feeder Base #4
Pullout Prevention Bar
Front Safety Door
L Conveyor
(Right Side: R Conveyor)
Power Breaker
[EMERGENCY STOP] Switches
[READY] Button
Light Tower
Multi-Layer Tray Feeder (Option)
