AHB01EOPP (5) Set the lever of the power breaker to the "OFF" position. Fig. 1C26 1.7.2 Locking the Power Breaker with the Padlock When the machine is not used for a long period of time, lock the power breaker …

AHB01EOPP

(2) The "Login Type Selection" window opens.

Fig. 1C24

(3) When the [SHUT DOWN] button is pressed in the "Login Type Se-

lection" window, the "SHUT DOWN" dialog box opens for the confir-

mation.

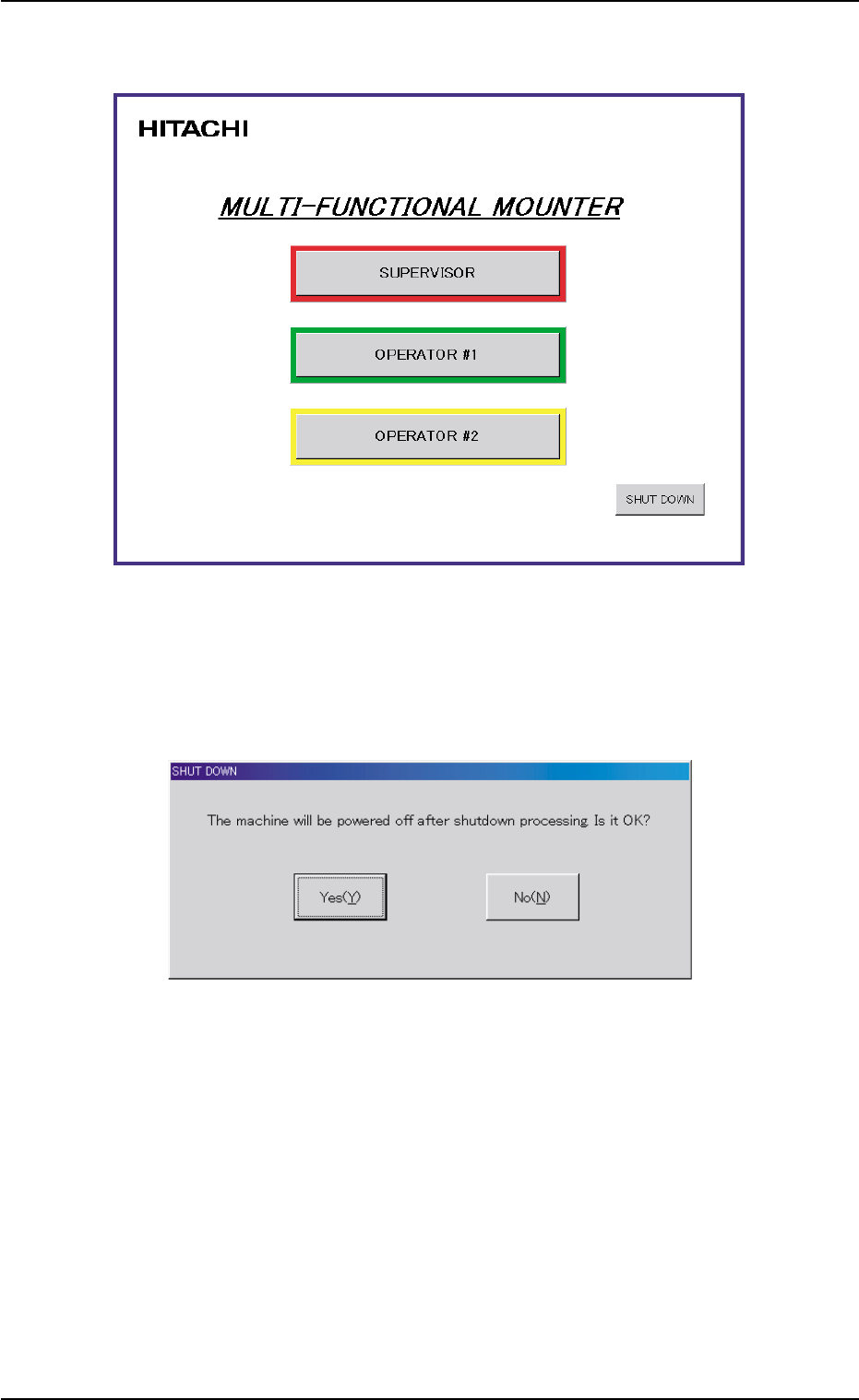

Fig. 1C25 "SHUT DOWN" Window for Confirmation

(4) When the [Yes(Y)] button is pressed, the power to the machine is

turned off after the shutdown processing.

Pressing the [No(N)] button cancels the shutdown operation.

0308-002 3-23

1.7 Shut-Down Operation

AHB01EOPP

(5) Set the lever of the power breaker to the "OFF" position.

Fig. 1C26

1.7.2 Locking the Power Breaker with the Padlock

When the machine is not used for a long period of time, lock the power

breaker using the padlock.

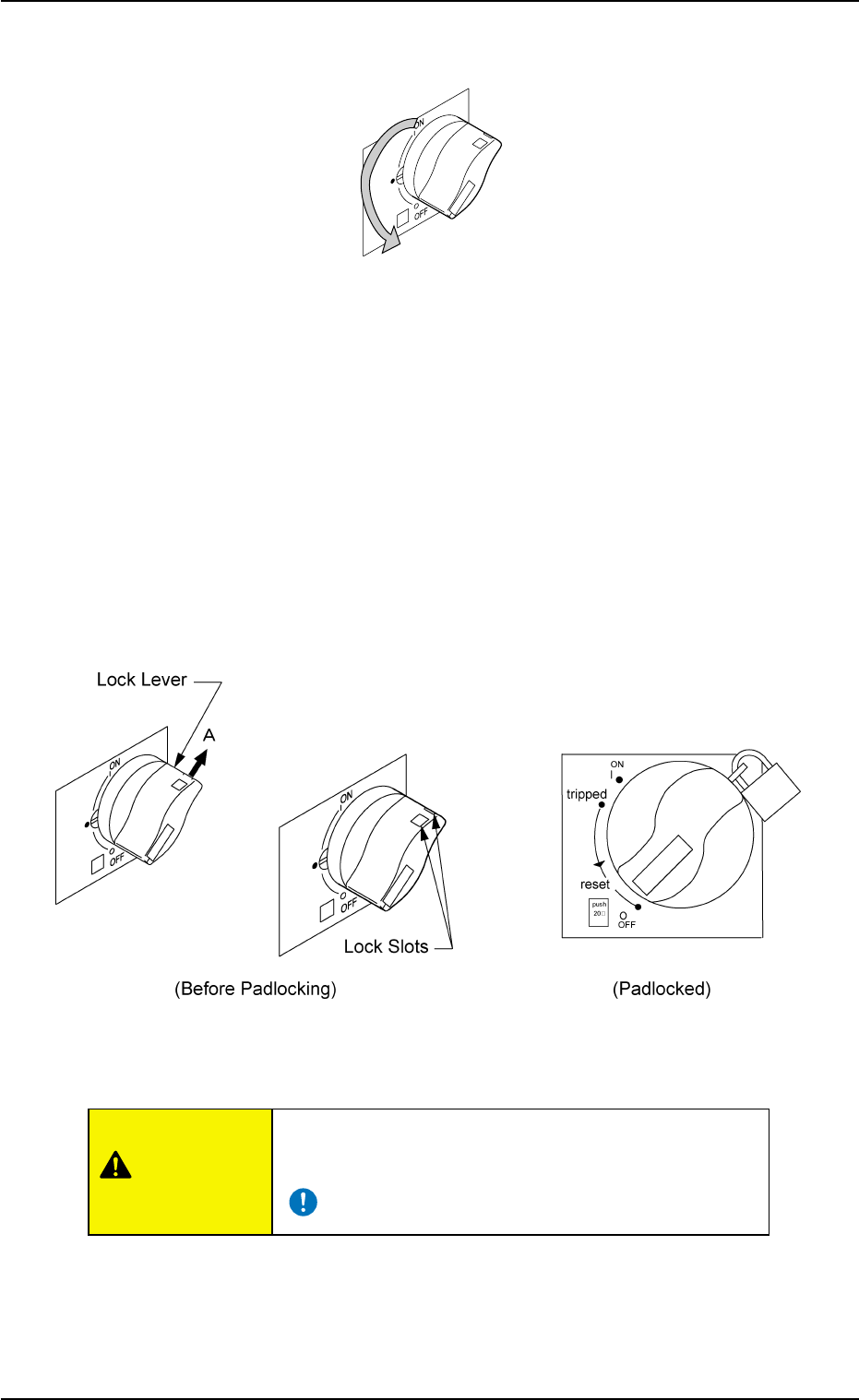

(1) Pull out the lock lever of the power breaker in the A direction.

Keep holding the lock lever. Otherwise, the lever will pull back.

(2) Engage the shackle of the padlock through the lock slots and lock

the crank.

Fig. 1C27

Keep the padlock key inaccessible to any person ex-

cept for the person in charge of maintenance.

0308-002 3-24

1.7 Shut-Down Operation

CAUTION

AHB01EOPP

2. "PASS" Mode

When the machine is set in the "PASS" mode, it just carries the P.C.B.

(input conveyor Æ P.C.B. positioning section Æ output conveyor) to the

output conveyor without placing any components on the P.C.B.

When the machine must transfer P.C.B.’s to the output machine with-

out placing any components, follow the steps below.

2.1 Start of "PASS" Operation

(1) Confirm that the front and rear safety doors are closed.

(2) Set the [OPERATION] switch on the front operation panel to "RUN".

Be sure to remove the key from the machine.

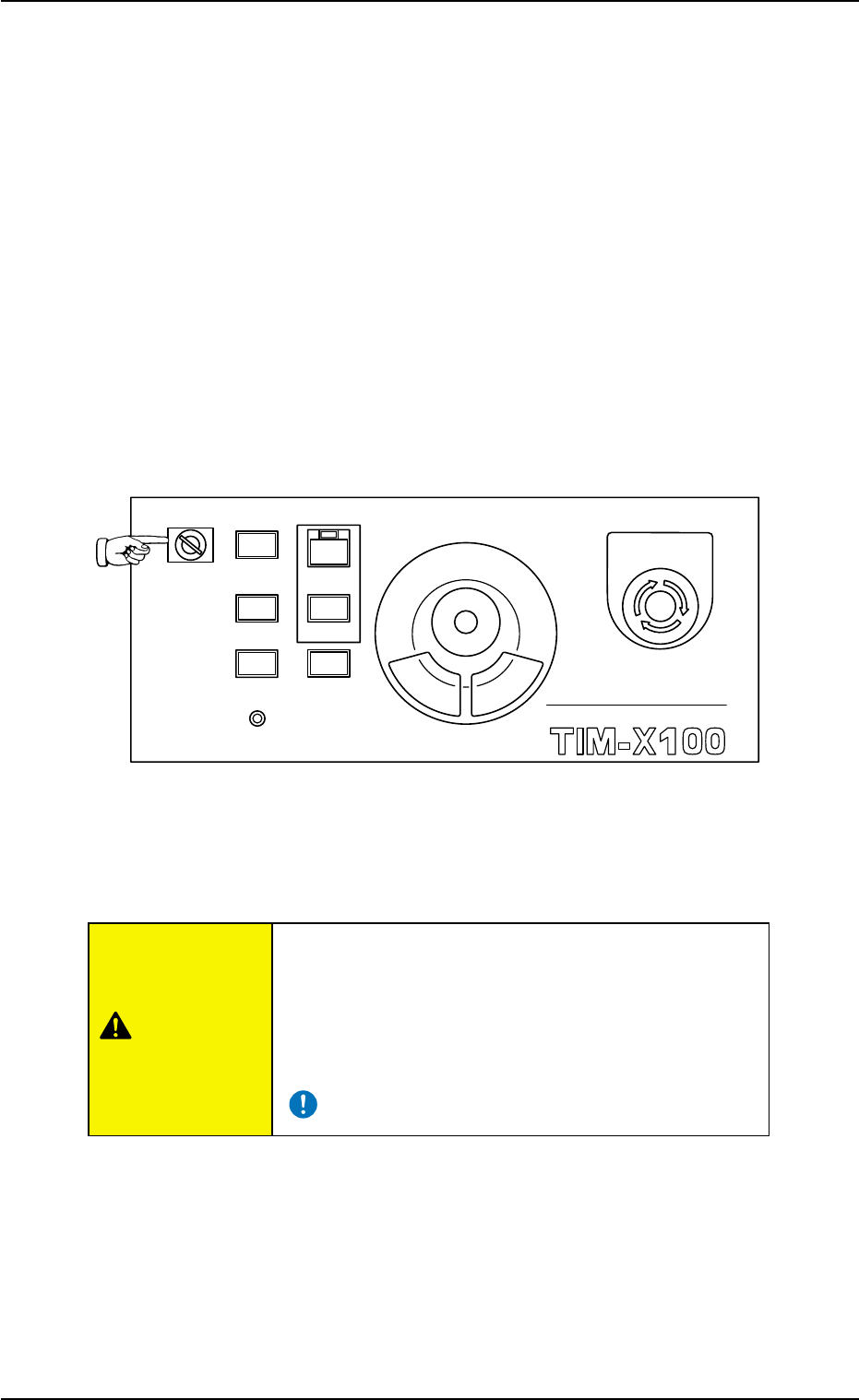

Fig. 1C28

(3) Check the surroundings of the machine and confirm safety before

starting the "PASS" operation.

Check carefully that there is no person around the

moving mechanisms of the machine. (Especially, the

other side of machine operation).

Make sure that no objects (tools, parts, etc.) remain

within the moving mechanisms of the machine.

0308-002 3-25

MULTI FUNCTIONAL MOUNTER

STOP

LOCK

OPERATION

RUN SETUP

START

ENABLE

PNL CHANGE

READY

POWER ON

EMERGENCY

2. "PASS" Mode

CAUTION
