ON and OFF : This indicates that the button is being changed from "OFF" to "ON". This condition remains until the electromagnet lock of the safety door is activated, the power to drive the X/Y beam, e…
2.2.3 [READY] Buttons
Fig. 1A6 [READY] Button (Front Operation Panel)
Fig. 1A7 [READY] Button (Rear Operation Panel)
The [READY] button is used to lock or unlock the safety door.
This button must be used to open or close the safey door for mainte-
nance work, etc.
"ON" or "OFF" indicates if the safey door can be opened or not.
OFF: The safety door can be opened or closed. The corresponding
safety door is unlocked and the power to drive the X/Y beam is
shut off.
When the safety door is opened in this mode, the power to
drive not only the X/Y beam but also the other devices is also
shut off with the [OPERATION] switch set to the "RUN" side.
ON : The safety door cannot be opened or closed. The safety door
is locked electromagnetically and the power to drive the X/Y
beam, etc., is also supplied. The axis can be activated under
this condition.
Be sure to confirm that the LED of the [READY] button
illuminates before moving any axis for zeroing opera-
tion, manual axis operation, etc.
0308-003 1-6
AHB01EOPP
MULTI FUNCTIONAL MOUNTER
STOP
LOCK
OPERATION
RUN SETUP
START
ENABLE
PNL CHANGE
READY
POWER ON
EMERGENCY
[READY] Button
MULTI FUNCTIONAL MOUNTER
OPERATION
RUN SETUP
READY
POWER ON
STOP
LOCK
START
ENABLE
PNL CHANGE
EMERGENCY
[READY] Button
Note
2.2 Safety Devices
ON and OFF :
This indicates that the button is being changed from "OFF" to
"ON".
This condition remains until the electromagnet lock of the
safety door is activated, the power to drive the X/Y beam,
etc., is supplied, and the servomotor is excited.
• Do not open the safety door while the [READY] but-
ton is flickering.
If the door is opened forcibly, the machine will break
down.
0308-003 1-7
AHB01EOPP
2.2 Safety Devices
CAUTION

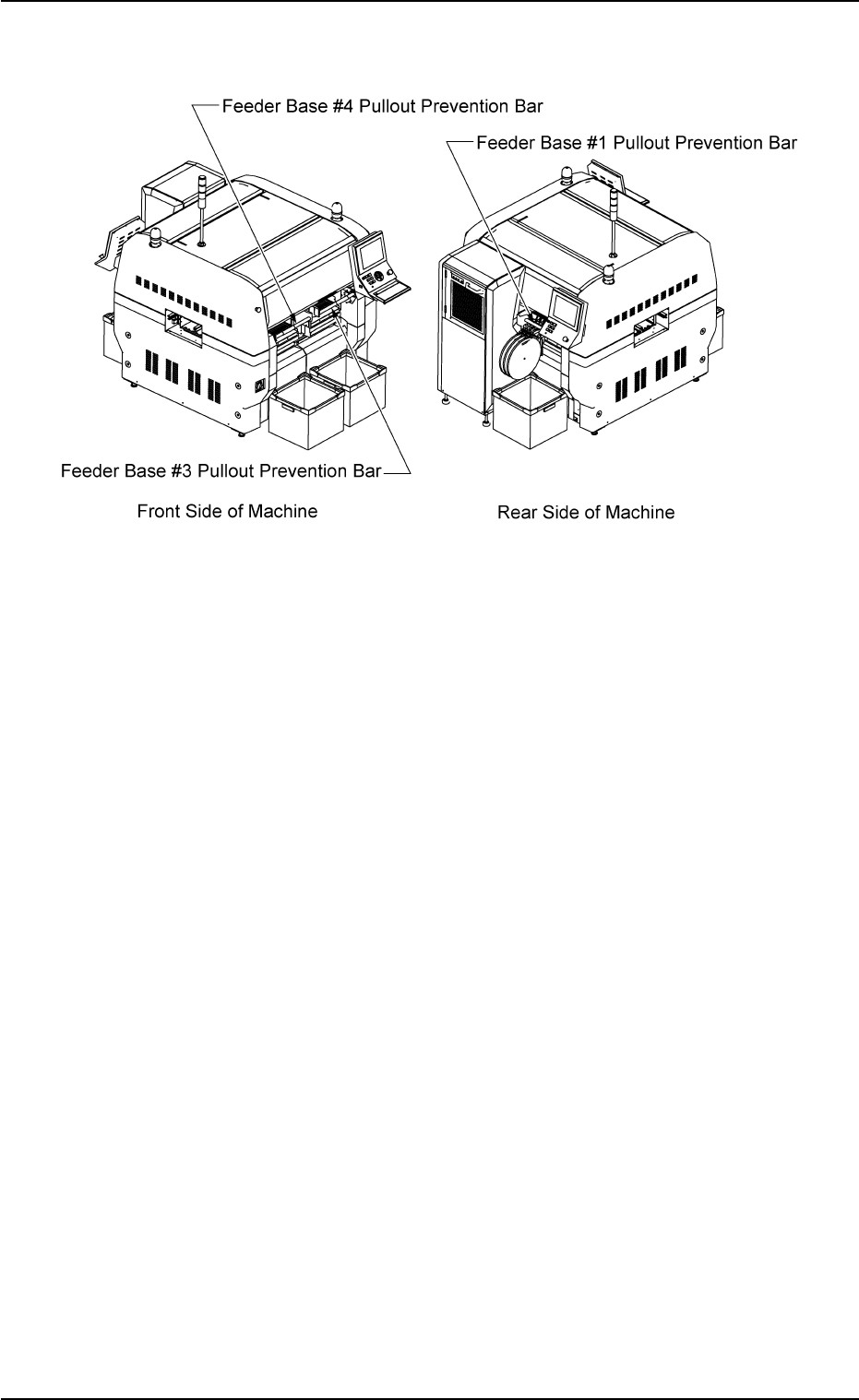

2.2.4 Feeder Base Pullout Prevention Bars
Fig. 1A7-1
These bars are used to prevent the operator from taking out any feeder
during operation, so that any collision between a head and a feeder can
be avoided. Each feeder base is provided with a bar.
The bar is automatically locked as soon as the machine starts running.
It is unlocked when the machine is stopped temporarily or completely.
No operation is available with the bar disengaged.
• Automatic Locking of Feeder Base Pullout Prevention Bar
The bar is automatically locked when the feeder base pullout preven-
tion bar is lifted and pushed and the machine starts running after it is
confirmed that the [READY] button is "ON" (Lamp: ON).
• Automatic Unlocking of Feeder Base Pullout Prevention Bar
The bar is automatically unlocked when the machine stopped tem-
porarily or completely, making it possible to pull and push down the
feeder base pullout prevention bar.
01 12-002 1-8
