*3 T abs When a window is composed of several sheets, all sheets are pro- vided with extensions called "T ab" and laid on top of each other so that the tab of each is visible. Refer to "Section 4 Navigatio…
2.2 Structure of Operation Windows

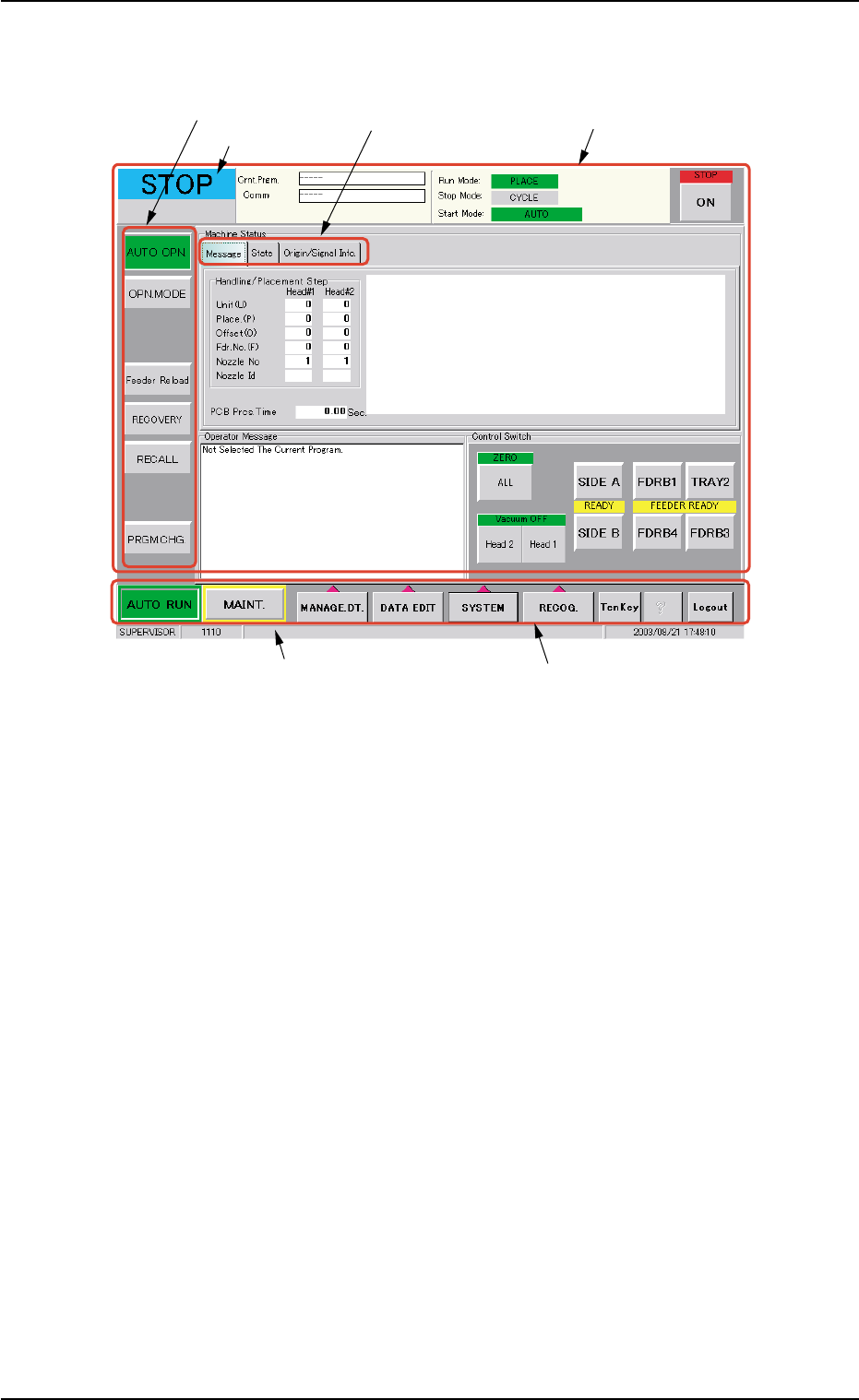

Fig. 1B4 Main Menu Bar and "AUTO OPN." Window
• Window Composition
*1 Main Menu Bar
The main menu bar has five buttons ([AUTO RUN], [MAINT.], [MAN-
AGE. DT.], [DATA EDIT], and [SYSTEM] buttons) as main menus,
one button ([RECOG.] button) for selection of a recognized image
pattern to be displayed, and three operation buttons ([TenKey], [?],
and [Logout] buttons).
Refer to "Section 4 Navigation on Touch Screen" in "Vol. 2: Opera-
tion (Supervisor)" for the detailed information on the main menu bar.
*2 Submenu Bar
The submenu bar has the buttons to select the submenus.
When each button on the submenu bar is selected, the corresponding
operation window opens.
When a button on the main menu bar is pressed, the corresponding
submenu bar appears.
Refer to "Section 4 Navigation on Touch Screen" in "Vol. 2: Opera-
tion (Supervisor)" for the detailed information on the submenu bar.
2.2 Structure of Operation Windows
0308-004 2-6 AHB01EOPP
*5 Current Mode
*6 Supplementary Explanation
*1 Main Menu Bar
*2 Submenu Bar
*3 Tabs
*4 Operation Window
("AUTO OPN." Window)
*3 Tabs
When a window is composed of several sheets, all sheets are pro-
vided with extensions called "Tab" and laid on top of each other so
that the tab of each is visible.
Refer to "Section 4 Navigation on Touch Screen" in "Vol. 2: Opera-
tion (Supervisor)" for the detailed information on the tabs.
*4 Operation Window
This window is provided with main menus related to the automatic
operation of the machine.
All operations required for automatic operation are included in this
window.
When the [MAINT.] button on the main menu bar is pressed, the
"MAINT." window opens.
Refer to "Section 5 Menus for Automatic Operation" and "Section 6
Menus for Maintenance" of "Vol. 2: Operation (Supervisor)" for the
structures of the "AUTO OPN." and "MAINT." windows.
*5 Current Mode
The current machine status is indicated at real time.
"RUN" : This indicates that the machine is running.
"PAUSE" : This indicates that the machine is stopped tempo-
rarily.
"WAIT" : This indicates that the machine is in the standby mode.
"STOP" : This indicates that the machine is stopped.
"TEACH": The machine is performing a teaching operation.
"RUN" : The machine is being activated (zeroing and manual
operations, etc.).
"TEST" : The machine is performing a device test, using one
of the tabs in the "DEVICE TEST" window (submenu).
*6 Supplementary Explanation
Indicated are the "LOGIN" type, the window No., and the current
date & time.
2.2 Structure of Operation Windows
0206-003 2-7 AHB01EOPP

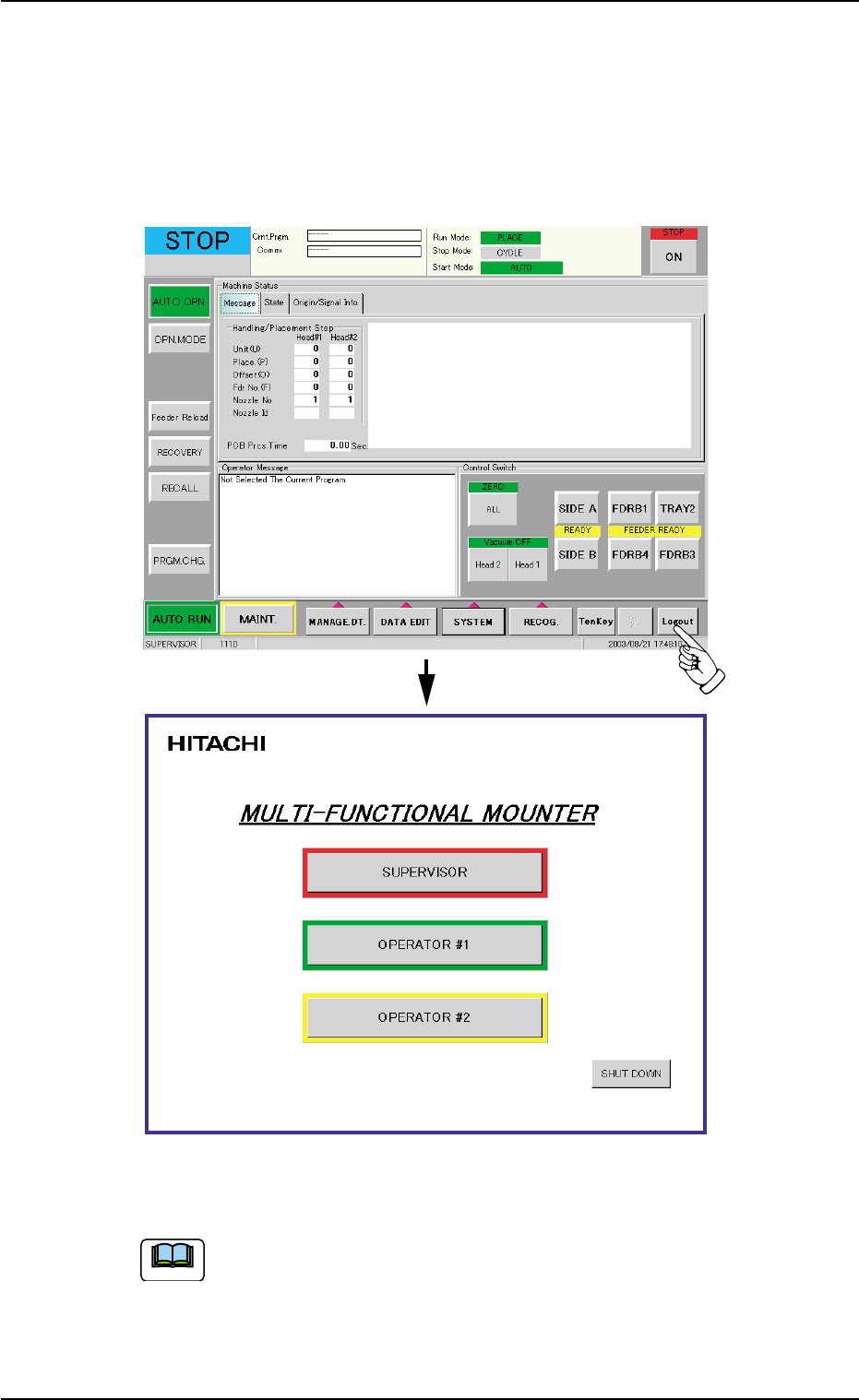

2.3 Exiting from Operation Window
(1) To exit from the "AUTO OPN." window or the "MAINT." window, just
press the [Logout] button on the main menu bar. The "Login Type
Selection" window opens.
Fig. 1B5
Whenever an edit window such as the "Pattern Program Data"
window is active, follow the specified steps to close the window
beforehand.
2.3 Exiting from Operation Window
0308-003 2-8 AHB01EOPP
Note
