AHB01EOPP • Preparation for P .C.B.’ s In the case of normal automatic operation, confirm that P .C.B.’ s are prepared in the input machine. When this machine is operated singly (actual placement test, etc.), follow the …
AHB01EOPP
1.2.3 Preparation for Components and P.C.B.’s
• Preparation for Components
The following is explained, presuming that the tape feeders are
being used.
As for the preparation for the vibratory stick feeders and the
multi-layer tray feeders (option), refer to each instruction manual
for details.
(1) Press the [STOP] button.
(2) Detach the feeder base pullout prevention bar.

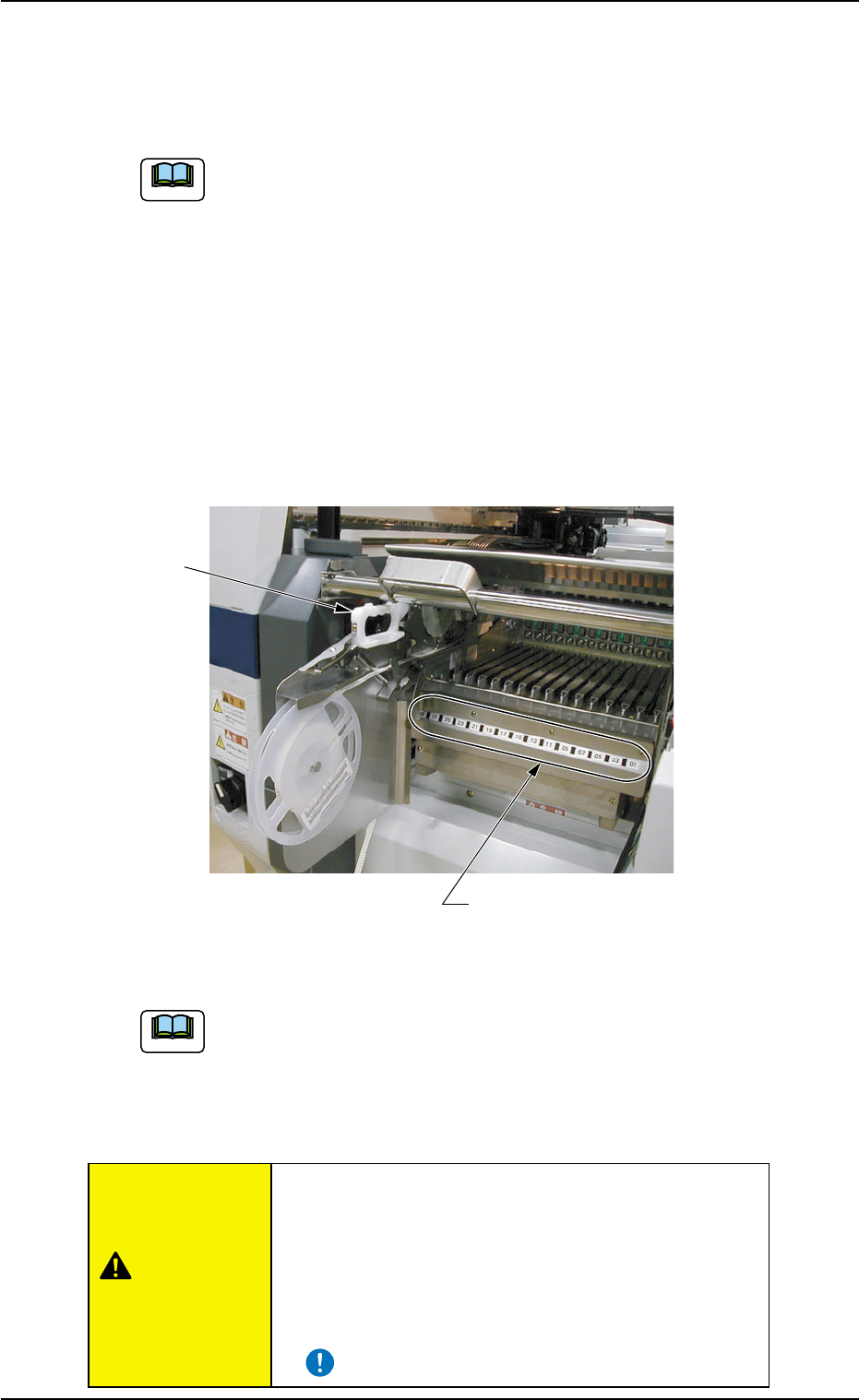

(3) Check which type of the tape feeder (grip color and type) should be
installed in which slot No. (Fdr. No.). After that, install the tape feed-
ers correctly.
Fig. 1C13
Refer to "Attachment and Detachment of Tape Feeders to Feeder
Base" in the instruction manual of tape feeders for details.
(4) Attach the feeder base pullout prevention bar.
• The feeders should be seated securely. Otherwise,
a collision with the head section or a pick-up error
will occur.
• Be sure to install the feeders on the correct feeder
slot Nos. (Fdr. No.). Otherwise, some components
may be trapped between the heads.
1.2 Preparation before Operation
0308-004 3-10
Fdr. No. Plate
Grip
Note
Note
CAUTION
AHB01EOPP
• Preparation for P.C.B.’s
In the case of normal automatic operation, confirm that P.C.B.’s are
prepared in the input machine.
When this machine is operated singly (actual placement test,
etc.), follow the steps below.

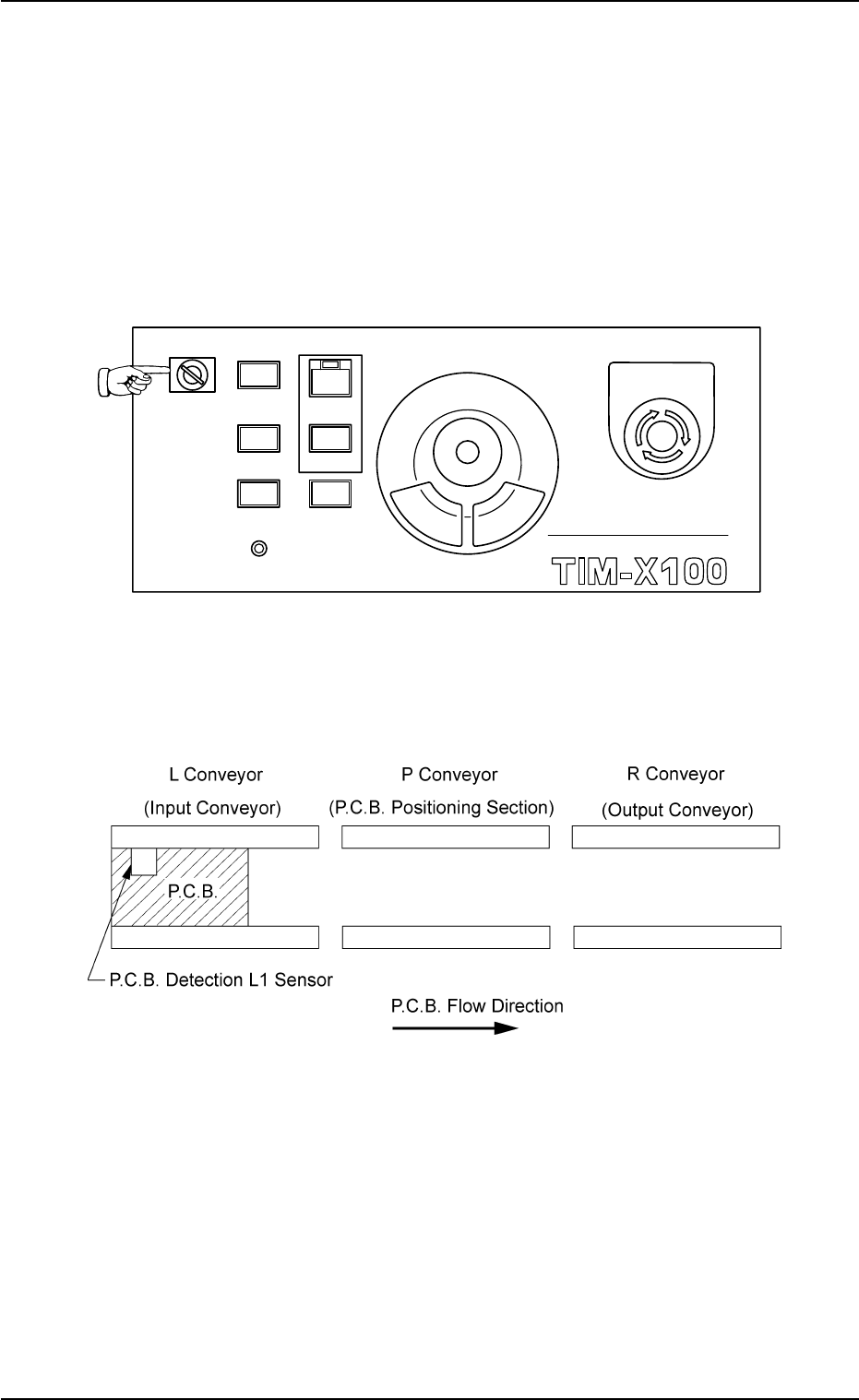

(1) Set the [OPERATION] switch to "SETUP" and open the safety
door.
Fig. 1C14
(2) Set a P.C.B. on the L conveyor (input conveyor) such that the
P.C.B. detection sensor is turned on (in red) as shown below.
Fig. 1C15 P.C.B. Flow Direction (Left Rear Reference): From Left to Right
0308-003 3-11
1.2 Preparation before Operation
MULTI FUNCTIONAL MOUNTER
STOP
LOCK
OPERATION
RUN SETUP
START
ENABLE
PNL CHANGE
READY
POWER ON
EMERGENCY
AHB01EOPP
1.3 Start of Automatic Operation
Operation Procedure
(1) Check the surroundings of the machine and confirm safety before
starting the automatic operation.
Check carefully that there is no person around the
moving mechanisms of the machine. (Especially, the
other side of machine operation).
Make sure that no objects (tools, parts, etc.) remain
within the moving mechanisms of the machine.
(2) Confirm that the front and rear safety doors and the feeder base
pullout prevention bars are closed.

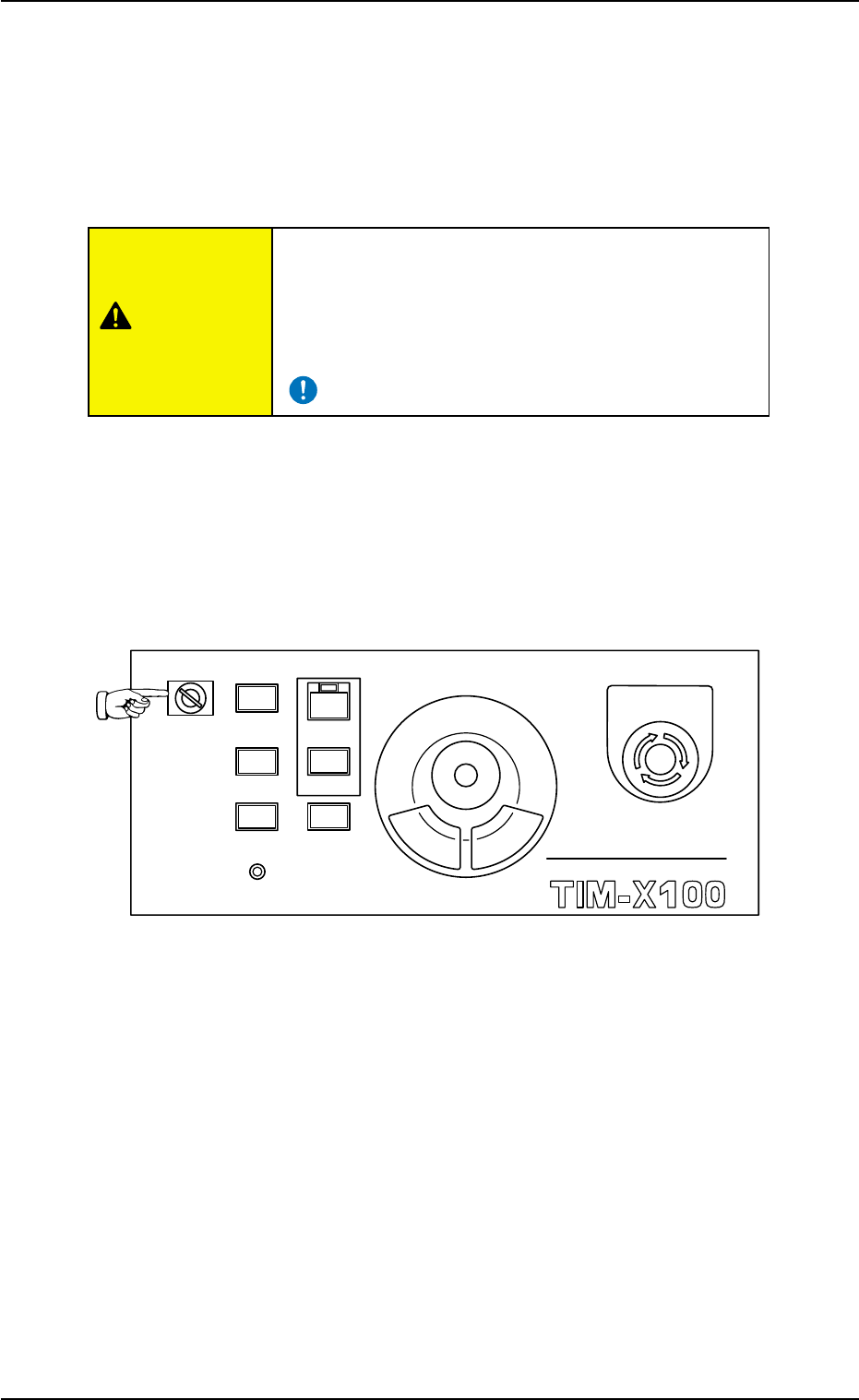

(3) Confirm that the [OPERATION] switch on the front operation panel
is set to the "RUN" side and be sure to remove the selection key
from the machine.
Fig. 1C16
1.3 Start of Automatic Operation
0308-003 3-12
MULTI FUNCTIONAL MOUNTER
STOP
LOCK
OPERATION
RUN SETUP
START
ENABLE
PNL CHANGE
READY
POWER ON
EMERGENCY
CAUTION
