When temperature is low at power-up, the brightness of the back light drops. The deterioration is not abnormal. The brightness resumes normal after a few minutes. When the back light is turned on or off repeatedly at low…
*12 Front Touch Screen
Fig. 1A15
The operation window will be displayed on the front touch screen.
Various types of operations become available by touching the operation
buttons and tabs on the screen.
Since the touch screen uses the molecules in liquid crystals, handle it
like glass.
Do not the apply strong pressure to the touch screen. Try not to touch
the screen except for input operations.
The touch-sensitive regions of the touch screen reacts to a force of
0.098 N (10 gf) to 0.78 N (80 gf).
Do not press the screen with an excessive force.
The surface of the touch screen is fragile. Do not rub
the surface nor touch it with a pen, a screwdriver, etc.
The device is not a water-proof and encapsulated type.
Avoid dust, water droplet, oil droplet, and metal pieces.
Especially, when metal pieces or combustible mate-
rial is mixed into the machine, it may lead to fire igni-
tion.
0308-003 1-18
AHB01EOPP
Front Touch Screen
2.3 Equipment for Operations
CAUTION
CAUTION
When temperature is low at power-up, the brightness of the back light
drops. The deterioration is not abnormal.
The brightness resumes normal after a few minutes.
When the back light is turned on or off repeatedly at low temperature,
the life will be shortened.
Refer to "1.2.2 Notes on Handling Touch Screens" in "Section
2" for the detailed information on how to clean the touch screens.
*13 Working Lamp Switch
This switch is used to turn on or off the working lamp on the front
side.
0206-002 1-19
AHB01EOPP
2.3 Equipment for Operations
Note

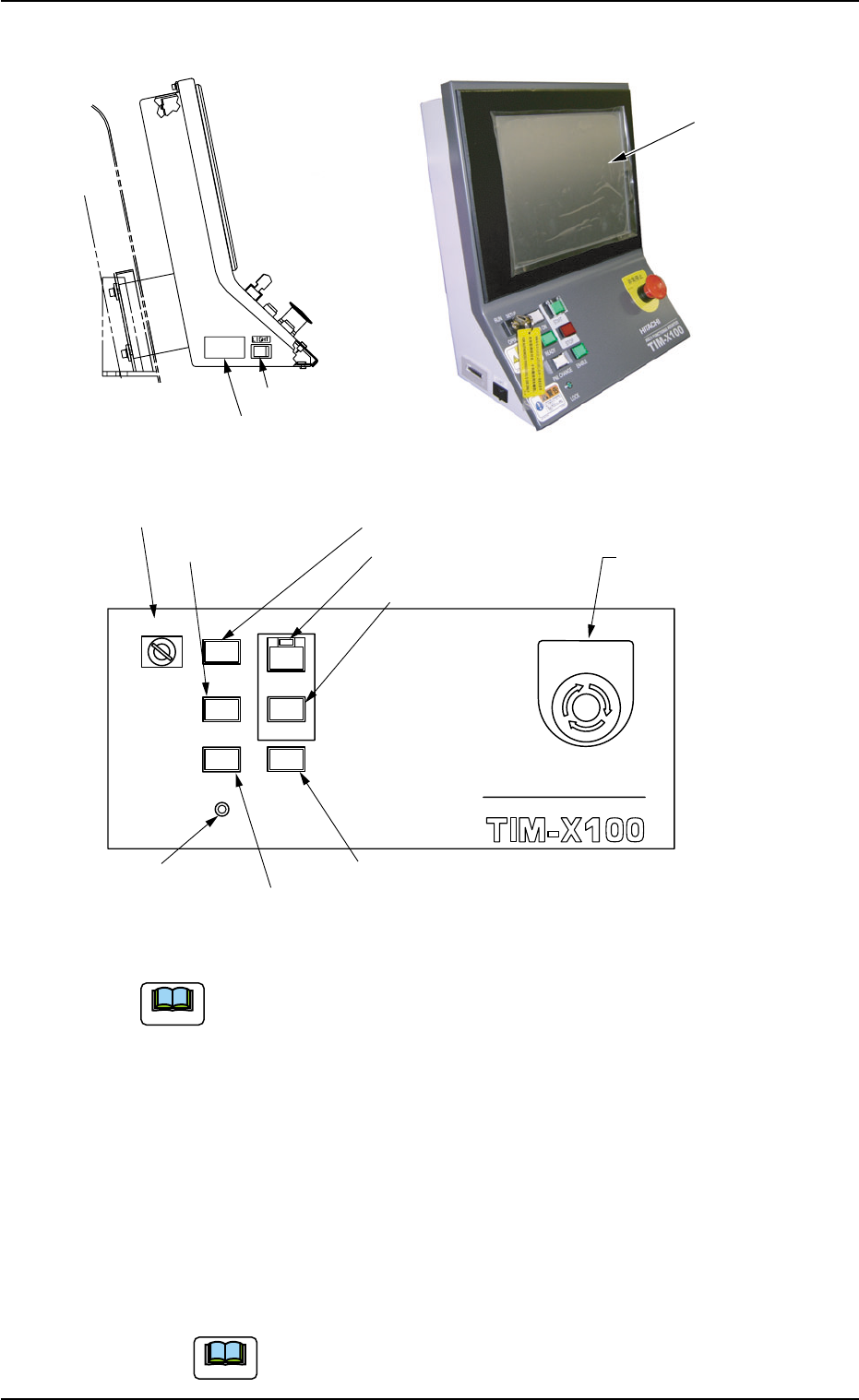

2.3.7 Rear Operation Panel
Fig. 1A16
Fig. 1A17
The rear operation panel is not provided with any keyboard. A
key board is available as an option.
*1 [POWER ON] Button
• This button is used to turn on the power for operations.
*2 [START] Button
• This button is used to start the automatic operation.
The automatic operation can be started only when the lamp is
flickering.
• While the lamp of this button is ON, it indicates that the machine
is running automatically.
When the [STOP] button is pressed during automatic operation,
the lamp of this button extinguishes.
The lamp is kept ON while each device is being zeroed.
0308-004 1-20
AHB01EOPP
MULTI FUNCTIONAL MOUNTER
OPERATION
RUN SETUP
READY
POWER ON
STOP
LOCK
START
ENABLE
PNL CHANGE
EMERGENCY
*8 [OPERATION] Switch
*7 [READY] Button
*1 [POWER ON] Button
*4 [ENABLE] Button
*2 [START] Button
*9 [EMERGENCY
STOP] Switch
*6 [LOCK] Lamp
*5 [PNL CHANGE] Button
*3 [STOP] Button
2.3 Equipment for Operations
Note
Note
*10 Rear Touch Screen
*11 Working Lamp Switch
*12 Cycle Counter
