AHB01EOPP • T emporary Stop (Pause) with [ON] Button (entitled "STOP") When "STEP" is set as "Stop Mode" (*1) and the [ON] button (*2, en- titled "STOP") is pressed, the automatic …

AHB01EOPP

1.4.3 [STOP] and [ON] (entitled "STOP") Buttons

• Temporary Stop (Pause) with [STOP] Button

Press the [STOP] button on the front or the rear operation panel to tem-

porarily stop the automatic operation whenever it is found that a wrong

production model is applied or the placement condition should be

checked after the machine has started the automatic operation.

Fig. 1C20

(1) When the [STOP] button is pressed, the automatic operation stops

temporarily.

(2) When the [START] button is pressed after the placement condition

is checked, the automatic operation re-starts.

When the lamp of the [READY] button is OFF, press the

[READY] button and wait until the lamp illuminates. After

that, press the [START] button while it is flickering.

(3) When a wrong pattern program is specified as the current one (pro-

duction model), press the [STOP] button to temporarily stop the

automatic operation and follow the instructions described in "1.5

Interruption of Automatic Operation" to interrupt the automatic op-

eration.

0308-004 3-18

1.4 Temporary Stop and Restart of Automatic Operation

MULTI FUNCTIONAL MOUNTER

STOP

LOCK

OPERATION

RUN SETUP

START

ENABLE

PNL CHANGE

READY

POWER ON

EMERGENCY

Note

AHB01EOPP

• Temporary Stop (Pause) with [ON] Button (entitled "STOP")

When "STEP" is set as "Stop Mode" (*1) and the [ON] button (*2, en-

titled "STOP") is pressed, the automatic operation stops temporarily.

Fig. 1C20-1

When "CYCLE" is set as "Stop Mode" (*1), select the [STEP]

button (entitled "STOP") in the "Run Mode" tab sheet ("OPN.

MODE" submenu window).

1.4.4 Stop Operation by Selection of "Auto Stop Mode"

Stop the input machine.

After all P.C.B.’s on the system line are processed and discharged, the

input machine automatically stops running.

(a) This function works only when "Enable" is set in the "Auto

stop mode" text box of the "P.C.B. Transfer Mode Setup"

tab sheet. (Operation Procedure: [SYSTEM] Button on Main

Menu Bar Æ [SYS DATA] Button Æ "Auto Operation" Tab

Æ "P.C.B. Transfer Mode Setup" Tab Sheet)

(b) When a machine of another brand is connected to the sys-

tem line, this function may not work.

0308-002 3-18-1

1.4 Temporary Stop and Restart of Automatic Operation

Note

AHB01EOPP

1.5 Interruption of Automatic Operation

1.5.1 Interruption with [CANCEL] Button

When the [STOP] button on the operation panel is pressed, the follow-

ing "Run Mode" tab sheet appears.

(1) Press the [STOP] button on the operation panel.

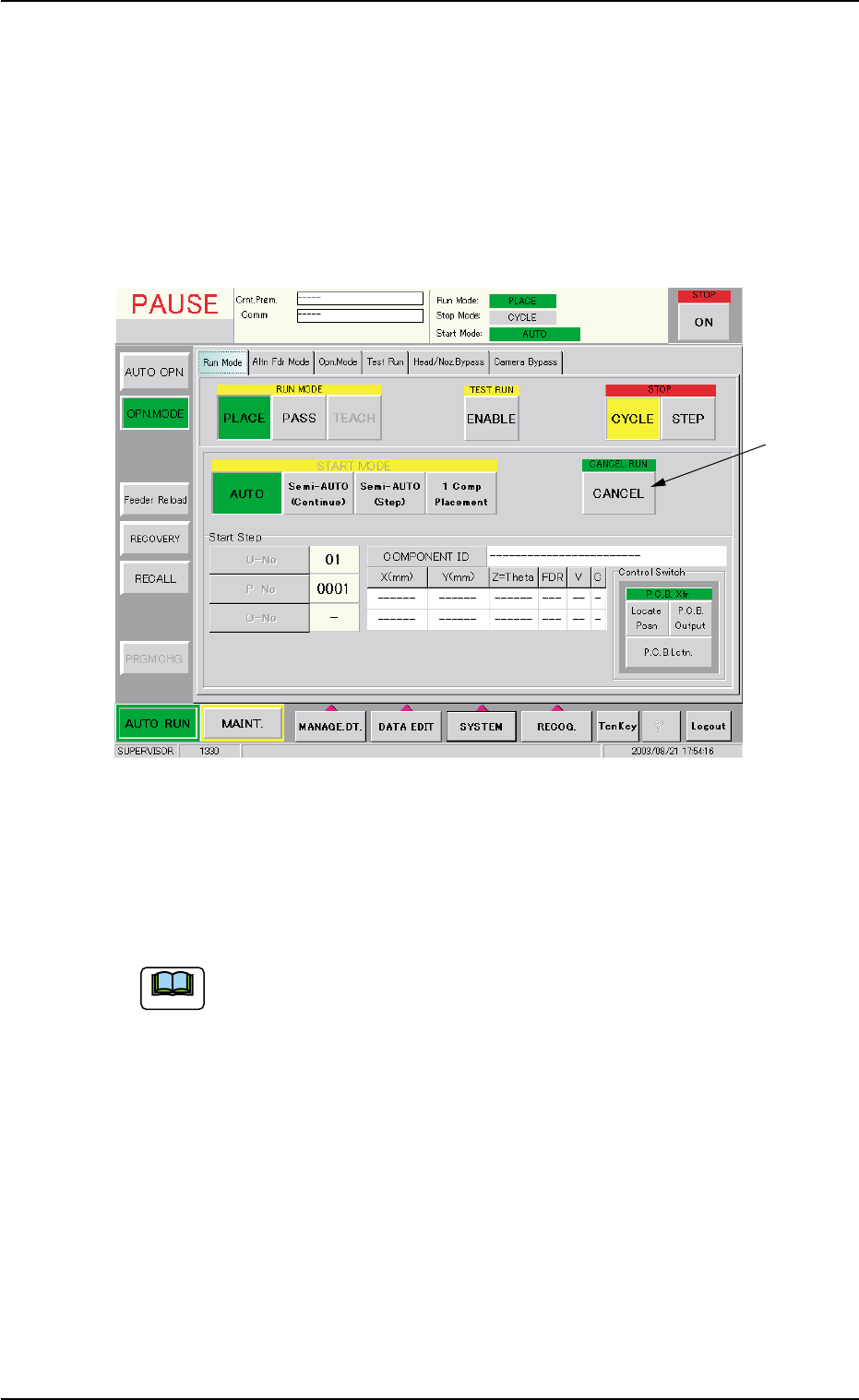

Fig. 1C21 "Run Mode" Tab Sheet ("PAUSE" Mode)

(2) When the [CANCEL] button (*1, entitled "CANCEL RUN") is pressed

after the "Run Mode" tab ("OPN. MODE" submenu window), the

automatic operation is interrupted.

To continue the automatic operation after the interruption, refer

to "Step (10)" and the subsequent items in "3.1 [EMERGENCY

STOP] Switch Pressed" in "Section 4" for details.

0308-004 3-19

1.5 Interruption of Automatic Operation

Note
