4.2.2 Lifted Nozzle Detection Sensors These sensors are provided to protect the placement heads when a vacuum nozzle is ejected out of the nozzle stocker . Fig. 1X40 Front View of Machine Sensor Name Symbol Countermeasur…

4.2 Module Protection Sensors

0206-003 3 5 AHB01EOPP

4.2 Module Protection Sensors

This session describes the main sensors that are provided for ma-

chine protection.

4.2.1 Mispicked Component Detection Sensors

These sensors are provided to detect mispicked components, etc., at

the component pick-up position for the protective purposes of the ma-

chine.

Fig. 1X39 Sectional View of Machine

Sensor Name Symbol Countermeasures

Mispicked Component

Detection A

(Rear Side)

Mispicked Component

Detection B

(Front Side)

Table 1X10

• The excitations of the beam X/Y axis, the nozzle U/D

axis, and the head rotational axis are shut off. (At the

same time, the nozzle U/D axis is braked.)

• The nozzle change axis stops rapidly after the sen-

sor has detected a mispicked component.

BPH071

BPH072

4.2.2 Lifted Nozzle Detection Sensors

These sensors are provided to protect the placement heads when a

vacuum nozzle is ejected out of the nozzle stocker.

Fig. 1X40 Front View of Machine

Sensor Name Symbol Countermeasures

Lifted Nozzle Detection B1

Lifted Nozzle Detection B2

Table 1X11

When one of these sensors is turned OFF (light emit-

ted and not received), the following measures are taken.

• The excitations of the beam X/Y axis and the nozzle

U/D axis are shut off.

(At the same time, the nozzle U/D axis is braked.)

BPH061

0206-003 3 6

AHB01EOPP

4.2 Module Protection Sensors

4.2.3 X-Axis Collision Detection Sensor

This sensor is provided to detect that both heads have approached

abnormally for protection of the X/Y beam.

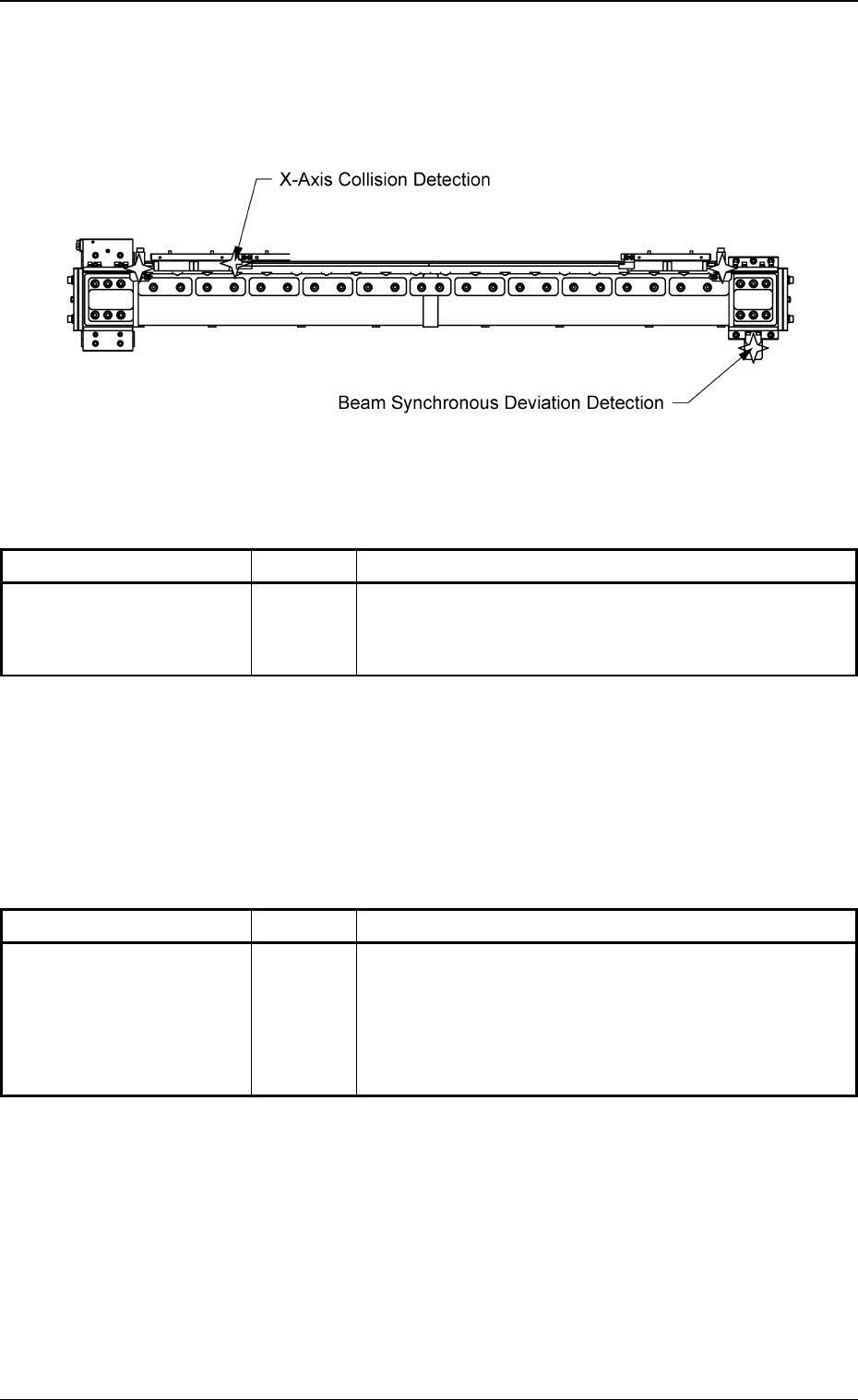

Fig. 1X41 Lower Surface of Machine

Sensor Name Symbol Countermeasures

X-Axis Collision Detection

4.2.4 Beam Synchronous Deviation Detection Sensor

This sensor is provided to detect the deviations of both Y axes for pro-

tection of the X/Y beam.

Sensor Name Symbol Countermeasures

Beam Synchronous

Deviation Detection

4.2 Module Protection Sensors

Table 1X12

When this sensor is turned OFF (light emitted and not

received), the following measures are taken.

• Both heads stop rapidly.

BPH035

Table 1X13

When this sensor is turned OFF (light emitted and re-

ceived), the following measures are taken.

• The excitations of the beam X/Y axis and the nozzle

U/D axis are shut off.

(At the same time, the nozzle U/D axis is braked.)

BPH038
