2.3.9 Ethernet LAN
Data can be exchanged between the network terminal (option) and the
machine in the Ethernet LAN system.

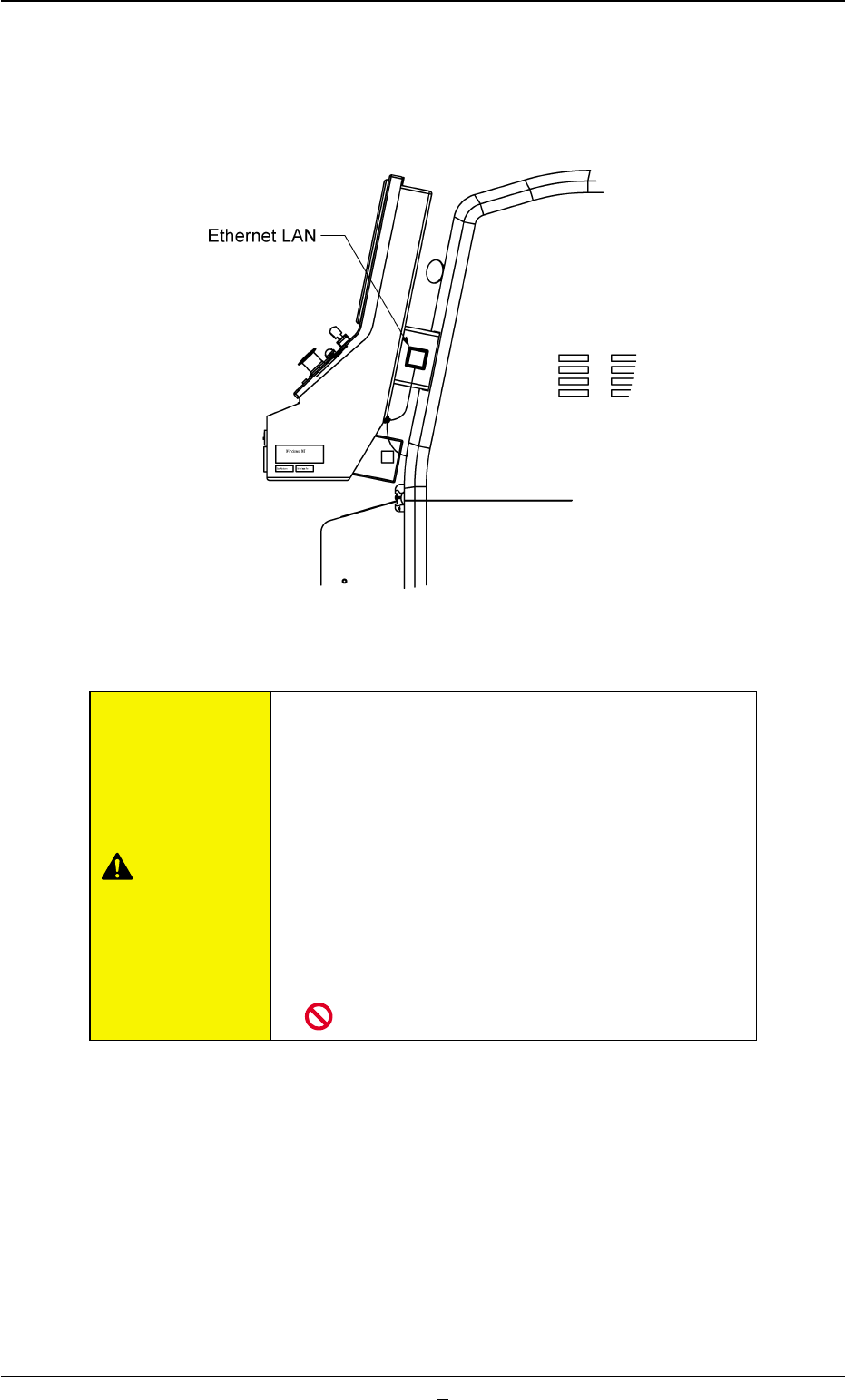

Fig. 1A18-1 Side View of Front Operation Panel
• Do not exchange data through Ethernet cabling
(Local Area Network) between the system and
a computer that is not provided with any viral
strategies.
Otherwise, viruses might enter the network, caus-
ing the machine to malfunction.
• Isolate the system, using Ethernet cabling (Lo-
cal Area Network) except for the specified func-
tional operations.
Otherwise, the machine will break down.
2.3 Equipment for Operations
0308-003 1-24-1 AHB01EOPP
CAUTION
2.4 Main Units
2.4.1 Location of Main Units

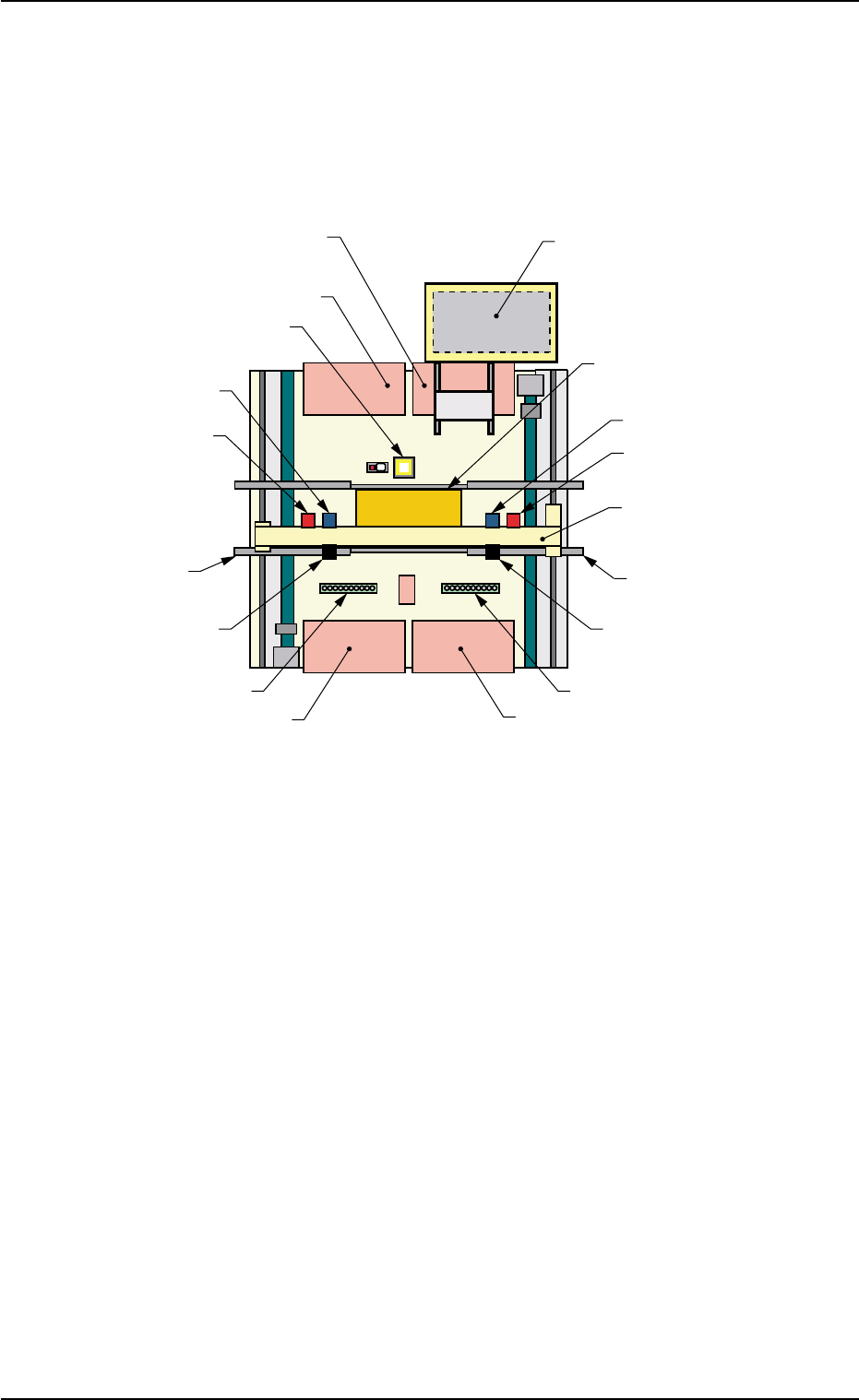

Fig. 1A18-2 Location of Main Units (Provided with Multi-Layer Tray Feeder #2)
2.4 Main Units
Front Side of Machine
Rear Side of Machine
Feeder Base #2
(Option)
Feeder Base #1
Fixed Camera A1
Head #2
P.E.C. Recognition
Camera 2
L Conveyor
Movable Camera 2
Nozzle Stocker B2
Feeder Base #4
Multi-Layer Tray Feeder #2
(Option)
P.C.B. Positioning Section
(P Conveyor)
Head #1
P.E.C. Recognition
Camera 1
X/Y Beam
R Conveyor
Movable Camera 1
Nozzle Stocker B1
Feeder Base #3
0206-003 1-25 AHB01EOPP
2.4.2 Feeder Bases

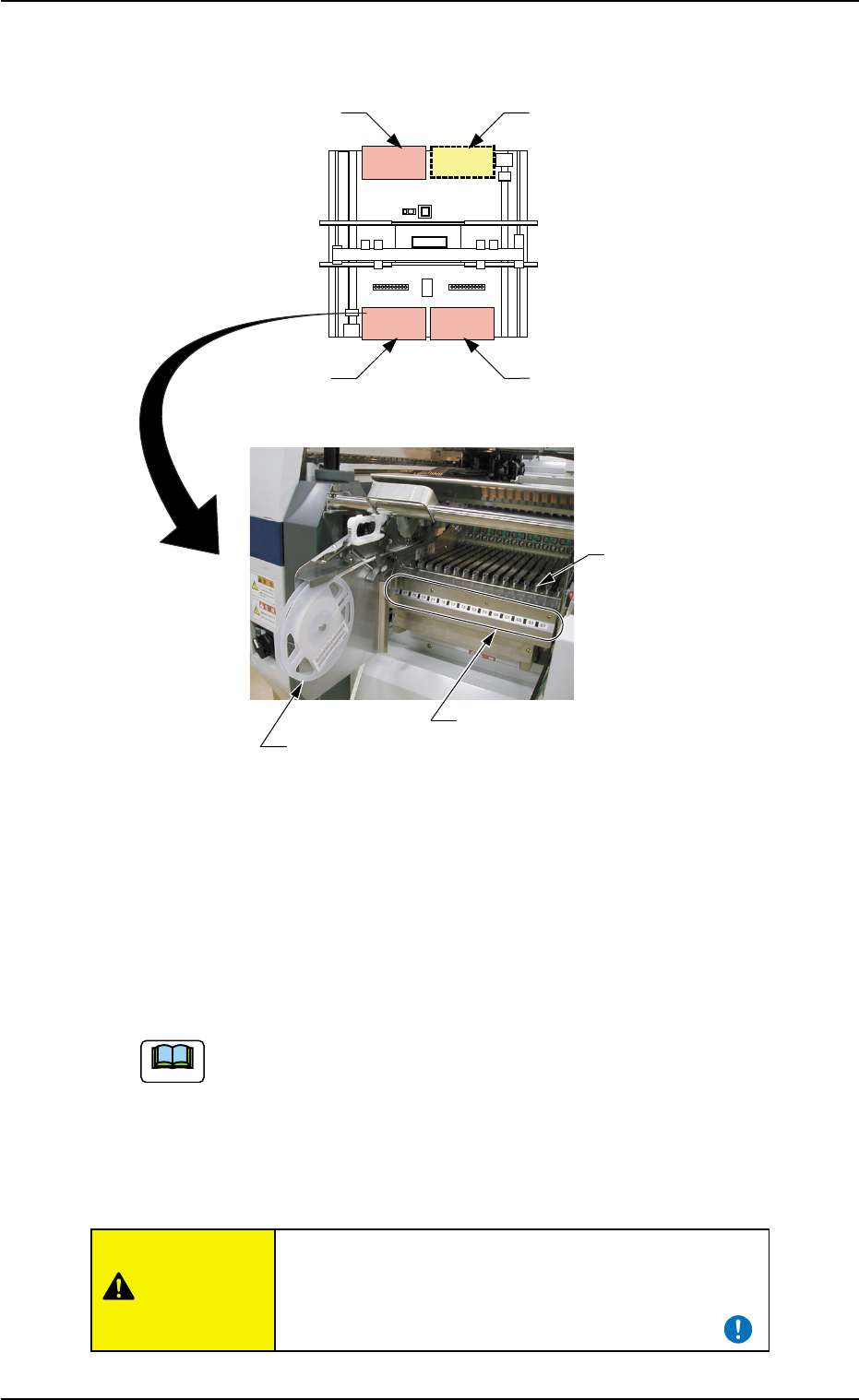

Fig. 1A20
The carriages carry feeders for component supply.
Components are supplied from the tape or the vibratory stick feeders
installed on the feeder bases.
Each feeder base is provided with a "Fdr. No." plate that indicates where
to allocate the feeders.
(a) Install the tape or the vibratory stick feeders (loaded with
components) on the corresponding feeder base.
Refer to the operation manual of the tape or the vibratory
stick feeder for details.
(b) The multi-layer tray feeder (option) or Feeder Base #2 (op-
tion) can be installed in the option space.
When a tape feeder is attached or detached, be sure
not to drop it.
Otherwise, an injury will result or the tape feeder
may be damaged.
Feeder Base
Fdr. No. Plate
Tape Feeder
Rear Side of Machine
Space for Option
Feeder Base #1
Front Side of Machine
Feeder Base #3
Feeder Base #4
(101 to 132)
(432 to 401)
(332 to 301)
(Top View)
(Rough View)
0308-004 1-26 AHB01EOPP
Note
2.4 Main Units
CAUTION
