AHB01EOPP 2. Nothing Displayed on T ouch Screen 0107-001 4 - 3 2. Nothing Displayed on T ouch Screen T able 1D2 Symptom Nothing is displayed on the touch screen. Cause (Cause 1) The screen saver function is activated. (C…
AHB01EOPP
(Remedy 3)
• Wait until the program is started completely.
• Cancel the "Emergency Stop" mode to reset the machine to its normal
condition.
Refer to "3.1 [EMERGENCY STOP] Button Pressed" for details.
• Close the front and the rear safety doors.
• Set the main air pressure to the specified one "0.4 MPa (4.1 kgf/cm
2
)".
Refer to "1.1.1 Confirmation of Power Supply and Air Pressure" in
"Section 3" for details.
(Remedy 4) Turn on the power breaker while holding down the [RESET] but-
ton (red).
1. Power Operation Impossible
0206-003 4 - 2
AHB01EOPP
2. Nothing Displayed on Touch Screen
0107-001 4 - 3
2. Nothing Displayed on Touch Screen
Table 1D2
Symptom Nothing is displayed on the touch screen.
Cause (Cause 1) The screen saver function is activated.
(Cause 2) Power is not supplied from the source.
Remedy (Remedy 1) Touch a part of the touch screen. The foreground activities will
occur in any running application.
(Remedy 2) Refer to "1. Power Operation Impossible" for details and follow
the remedial procedure.
AHB01EOPP
3. Remedial Procedures from "ERROR" Window
3.1 [EMERGENCY STOP] Switch Pressed
3.1.1 During Automatic Operation
Table 1D3

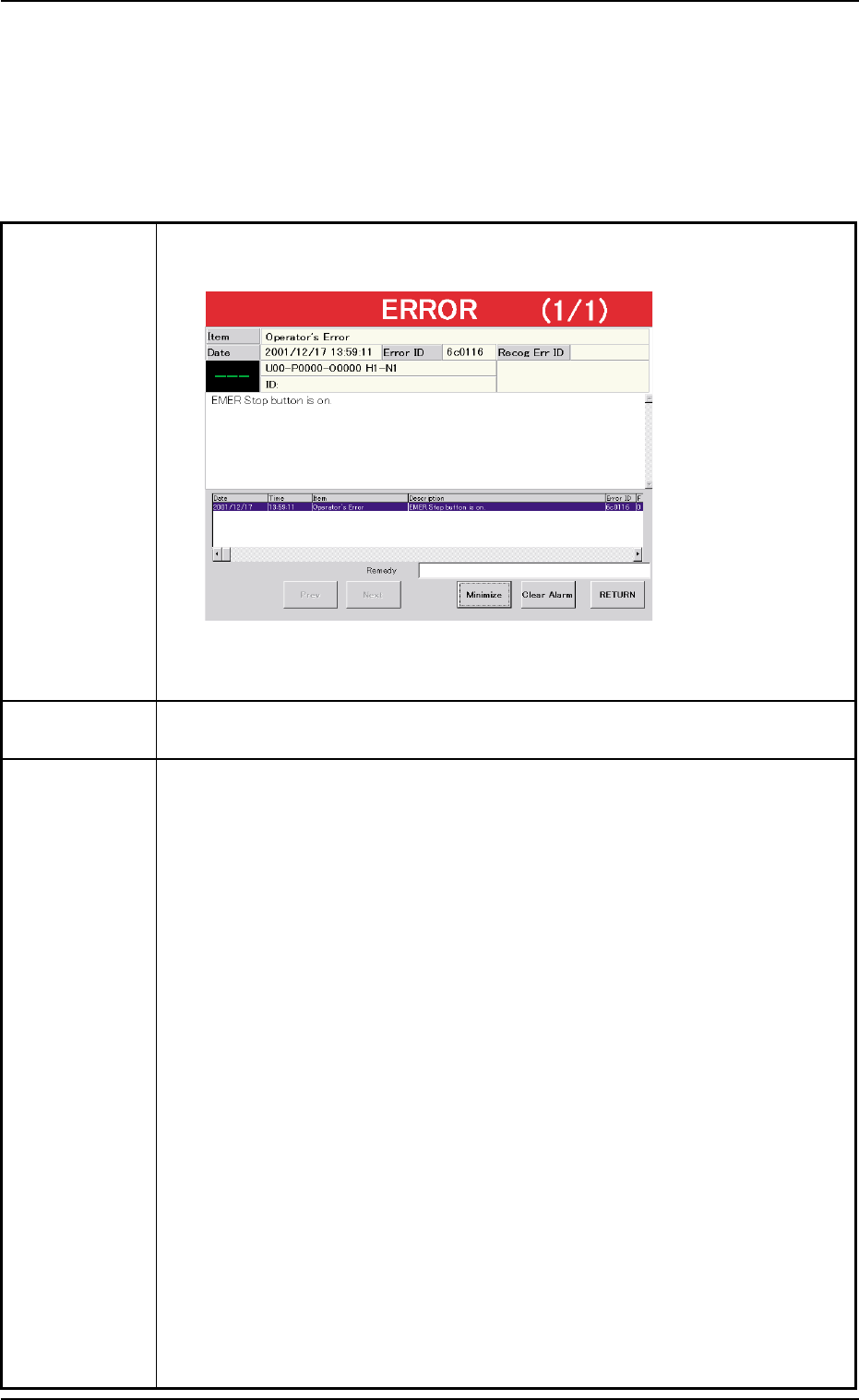

Symptom (1) The LED of the [POWER ON] button illuminates in red and the following
window opens.
Fig. 1D3
Cause (1) An [EMERGENCY STOP] switch was pressed.
Remedy (1) Check the displayed contents.
(2) Press the [RETURN] button.
(3) Remove the cause of the problem that prompted the operator to press the
[EMERGENCY STOP] switch.
(4) Check the feeders.
When the component to be picked up is left in the supply position, remove
it.
(5) Check if there is a component which has dropped inside the machine.
(6) Check whether or not the P.C.B. in the middle of component placement is
located correctly (not out of the P.C.B. positioning section) and the compo-
nents are placed normally (not dispersed).
(7) Turn the [EMERGENCY STOP] switch clockwise to release the locked
condition.
(8) Hold down the [POWER ON] button for more than 1 second to re-supply
power to the machine.
• When the LED of the [POWER ON] button illuminates in yellowish green,
it indicates that the power is supplied to the machine.
When the LED is kept red, re-check the cause and remove it.
(9) Press the [ALL] button (entitled "ZERO") in the "AUTO OPN." window. In 2
seconds, press the [ENABLE] button on the operation panel to zero all
device.
3. Remedial Procedures from "ERROR" Window
0308-004 4-4
