Section 4

Remedy of Simple Trouble

0308-003 4-A

This section describes how to troubleshoot simple problems

that can be solved by the machine operator.

When the operator cannot solve a problem, he/she should

get in contact with the supervisor (a person in charge of

machine management).

AHB01EOPP

0107-001 4 - B

AHB01EOPP

1. Power Operation Impossible

Table 1D1

Symptom When the [POWER ON] button on the operation panel is pressed, the ma-

chine is not powered.

Cause (Cause 1) The [POWER ON] button on the operation panel is not held down

for more than 1 second.

(Cause 2) The power breaker is set to "OFF"

(Cause 3) The lamp of the [POWER ON] button on the operation panel illumi-

nates in red.

(Cause 4) The power breaker is tripped.

Remedy (Remedy 1) Hold down the [POWER ON] button on the front or the rear op-

eration panel for more than 1 second.

When power is supplied, the lamp of the [POWER ON] button illumi-

nates in yellowish green.

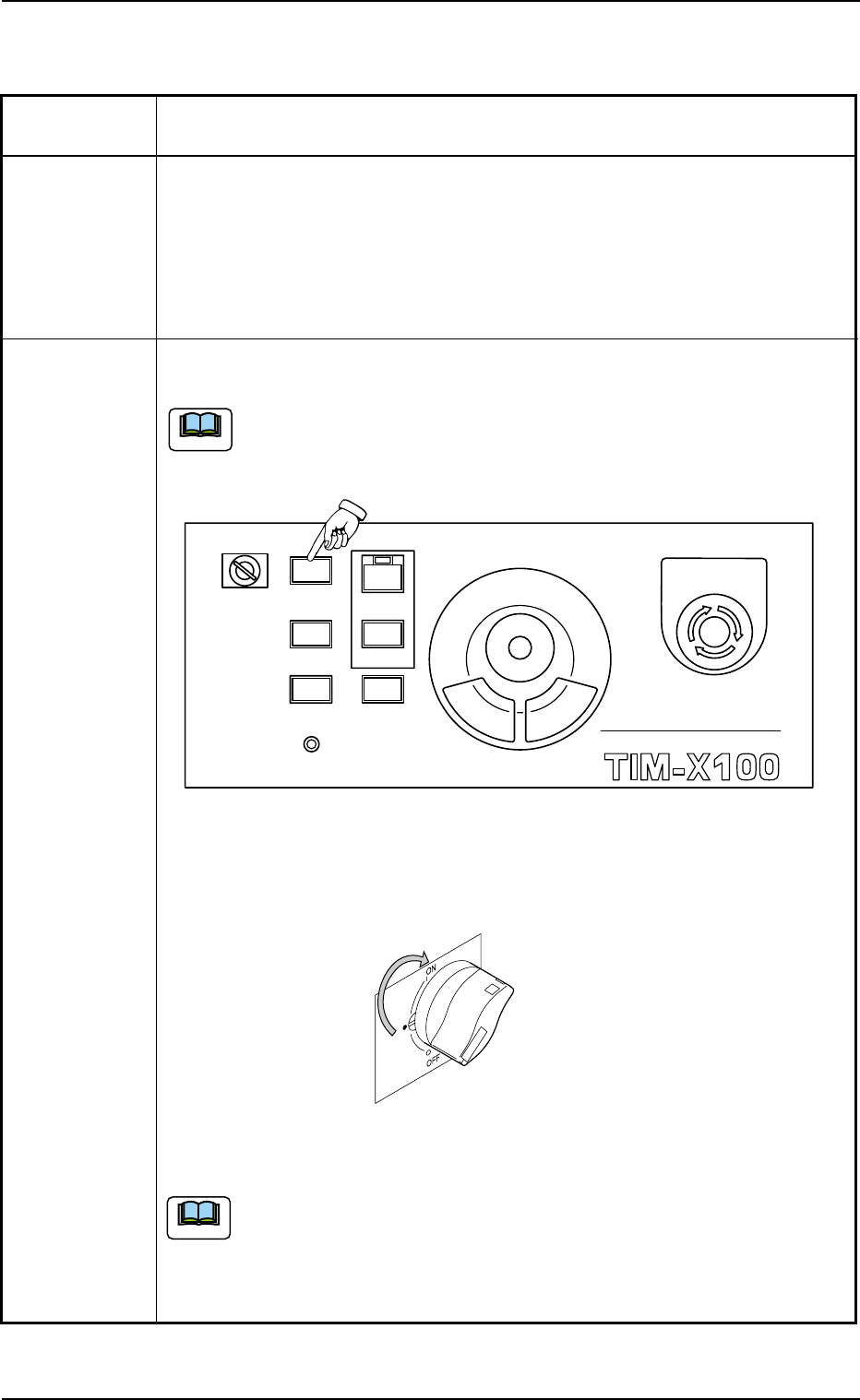

Fig. 1D1 Front Operation Panel

(Remedy 2) Set the power breaker to "ON".

Fig. 1D2

The working lamp switches are located beside the front or the rear

operation panel. When either one of the switches is turned on or off,

the working spot lamp also illuminates or extinguishes. Otherwise,

the machine is not powered.

1. Power Operation Impossible

0308-003 4-1

MULTI FUNCTIONAL MOUNTER

STOP

LOCK

OPERATION

RUN SETUP

START

ENABLE

PNL CHANGE

READY

POWER ON

EMERGENCY

Note
