*8 [OPERA TION] Switch • The selection key must be inserted to change over the [OPERA- TION] switch to "RUN" or "SETUP" The [OPERA TION] switch must be set to the "RUN" side for auto- matic …

*5 [PNL CHANGE] Button

• This button is used to select either the front or the rear operation

panel.

(a) The other operation panel can be selected by press-

ing the [PNL CHANGE] button on the unavailable (in-

valid) side only when the currently selected panel is

not set in the "Operation Locked" mode.

(b) While the LED of this button is ON, the followings be-

come available.

Front Touch Screen

[START] Button

[STOP] Button

[ENABLE] Button

[READY] Button

[OPERATION] Switch

[EMERGENCY STOP] Switch

Pointing Device

Keyboard

are always available regardless of the [PNL CHANGE]

button.

(d) When the panel operation is not locked and the [STOP]

button on the unselected operation panel is pressed,

the operation panel on the pressed button side be-

comes activated automatically.

• When this button is pressed with the LED "ON", the "LOCK" lamp

illuminates, indicating that only the front panel is available (Opera-

tion Locked).

To cancel the "LOCK" mode, press this button again.

*6 [LOCK] Lamp

• While the lamp is "ON", it indicates that only the front operation

panel is available and no panel change operation is possible.

• The lamp flickers when any operation is made on the rear

operation panel with the lamp being kept ON.

To cancel the flickering of the lamp, press the [PNL CHANGE]

button and follow the steps to set the operation-lock mode again.

*7 [READY] Button

• This button is used to turn on or off the electromagnetic lock of the

front safety door.

ON : The electromagnetic lock of the front safety door is

turned ON.

OFF : The electromagnetic lock of the front safety door is

turned OFF.

0308-004 1-14

AHB01EOPP

2.3 Equipment for Operations

Note

*8 [OPERATION] Switch

• The selection key must be inserted to change over the [OPERA-

TION] switch to "RUN" or "SETUP"

The [OPERATION] switch must be set to the "RUN" side for auto-

matic operation.

The switch can be changed over to "RUN" or "SETUP"

only when the machine is in the "STOP" mode.

• When the switch is changed to the "SETUP" side, the machine is

set as follows.

(a) The red, yellow, and green lamps of the light tower will illumi-

nate (initial setting of the machine upon shipment).

(b) The following operations are prohibited regardless of the front

safety door condition (opened/closed).

Automatic Operation, Zeroing Operation, Device Test, Unit

Adjustment, and Teaching Operation

eration panel (operations locked).

No operations are accepted on the rear operation panel.

• When the [OPERATION] switch is set to the

"SETUP" side, the interlock system of the front

safety door is deactivated.

• Do not operate the machine with the [OPERATION]

switch in the "SETUP" mode except for the setup

operations.

• Do not keep the selection key inserted unless nec-

essary. The key shall be stored by the person in

charge.

• When the selection key is turned forcibly, the switch

may be damaged.

*9 [EMERGENCY STOP] Switch

• This switch is used to stop the machine immediately in an emer-

gency.

• When this switch is pressed, the power is turned off and the ma-

chine stops immediately.

When the power is turned off, the LED of the [POWER ON] but-

ton on the operation panel illuminates in red.

0308-004 1-15

AHB01EOPP

2.3 Equipment for Operations

CAUTION

Note

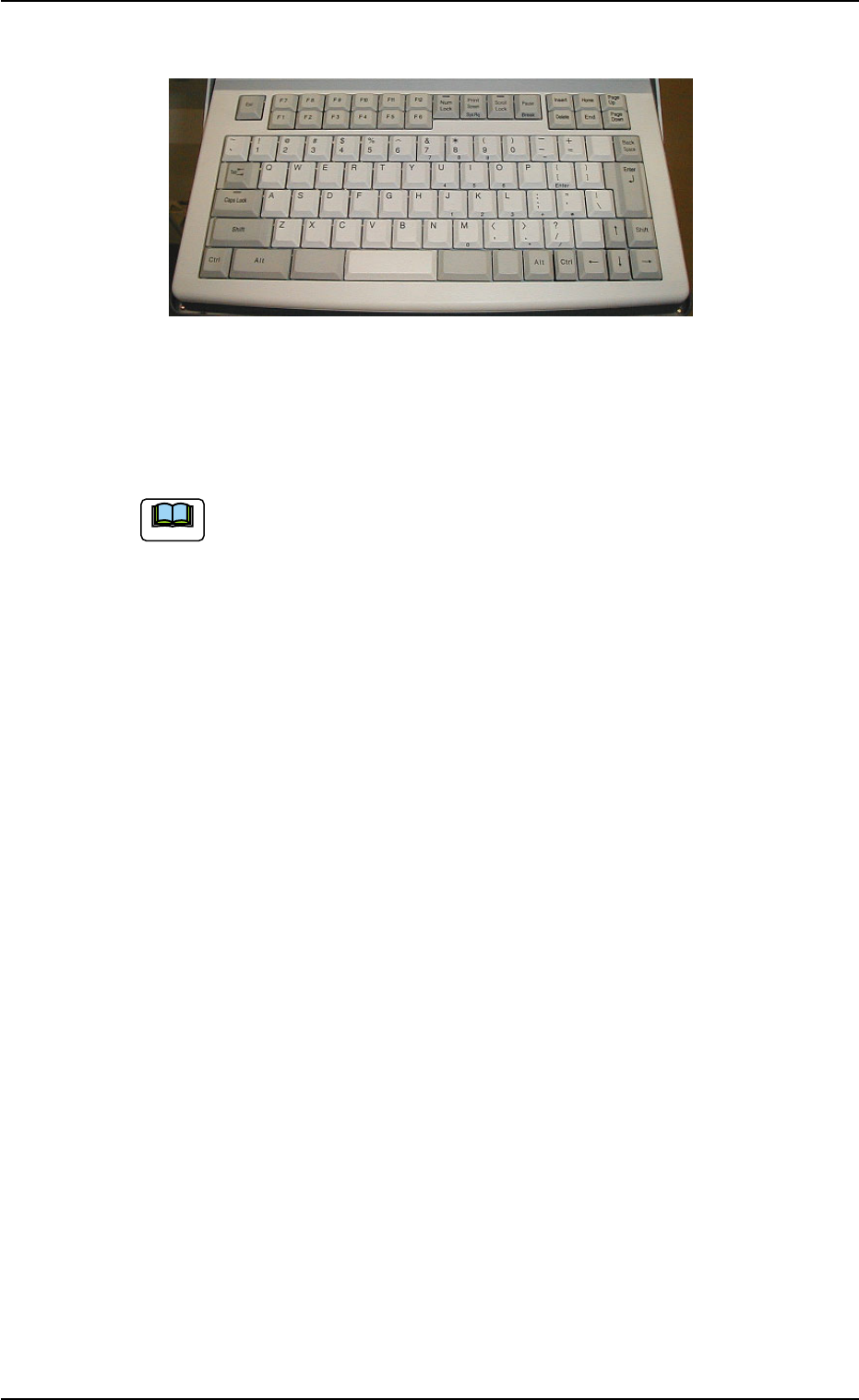

*10 Keyboard

Fig. 1A13

This keyboard can be used to enter alphanumeric characters in data

edit windows for pattern programs and component data.

To enter numerals in one of the windows that belong to "AUTO

OPN." or "MAINT.", the edit sheets on the screen can be used.

01 12-002 1-16 AHB01EOPP

2.3 Equipment for Operations

Note
