2. Name and Function of Each Section
2.1 General View
Refer to the items described in "2.2", "2.3", and "2.4" for each section.
2.1.1 Front Side of Machine
Fig. 1A2 Front Side of Machine
Fig. 1A2 Side View of Front Operation Panel
2. Name and Function of Each Section
Front Touch Screen
Front Operation
Panel
Pointing Device
Keyboard
Service Panel
Feeder Base #3
Pullout Prevention Ba
r
Feeder Base #4
Pullout Prevention Bar
Front Safety Door
L Conveyor
(Right Side: R Conveyor)
Power Breaker
[EMERGENCY STOP] Switches
[READY] Button
Light Tower
Multi-Layer Tray Feeder (Option)
0308-003 1-2 AHB01EOPP
2.1.2 Rear Side of Machine
Fig. 1A3 Rear Side of Machine
2.1 General View
Component Shortage Lamps
Multi-Layer Tray Feeder
(Option)
Rear Operation Panel
Rear Touch Screen
[READY] Button
Light Tower
Feeder Base #1
Pullout Prevention Bar
R Conveyor
(Left Side: L Conveyor)
[EMERGENCY STOP?Switch
[TRAY LOAD] Switch
(Inside)
Status Indicator
0308-004 1-3 AHB01EOPP
2.2 Safety Devices

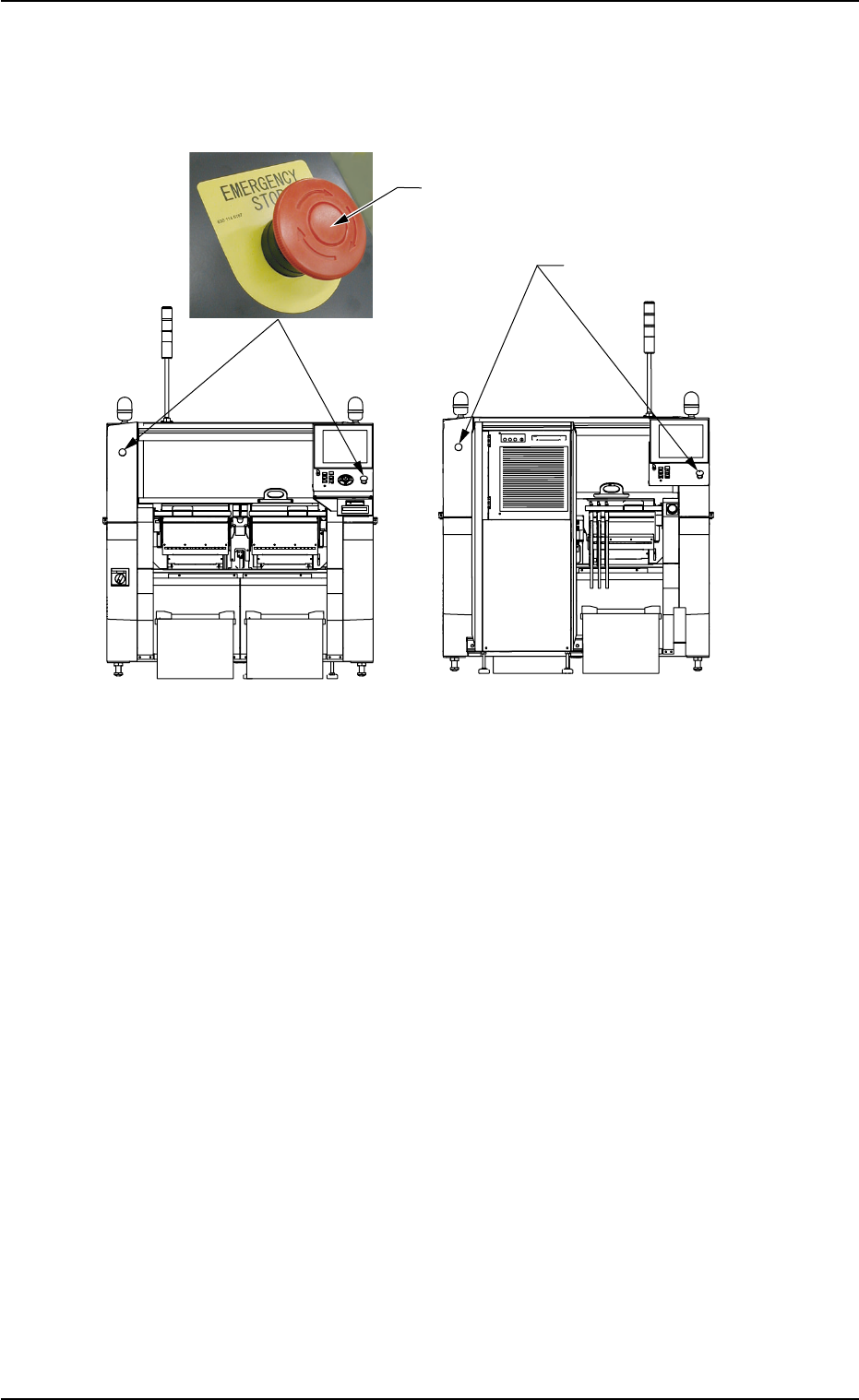

2.2.1 [EMERGENCY STOP] Switches
Fig. 1A4
Use one of the [EMERGENCY STOP] switches to immediately stop the
machine in an emergency.
When a switch is pressed, all power is shut off and the machine stops
running immediately.
When the power is shut off, the LED of the [POWER ON] button on the
operation panel illuminates in red.
• Locking the [EMERGENCY STOP] Switch
When an [EMERGENCY STOP] switch is pressed, all power is shut
off, the machine stops running, and the [EMERGENCY STOP] switch
is locked to avoid any careless power re-supply to the machine.
• Unlocking the [EMERGENCY STOP] Switch
Before re-supplying power to the machine, check and remove the
cause of emergency stop and inspect each section of the machine.
Then, unlock the [EMERGENCY STOP] switch.
To unlock the switch, turn the switch clockwise and pull it out.
2.2 Safety Devices
[EMERGENCY STOP] Switch
[EMERGENCY STOP]
Switches
Front Side of Machine
Rear Side of Machine
