3.Machine System SYS-CP842-1.1E 96 CP-842E / CP-842ME System Reference BS-Mark Data Editing Screen Block skip mark data editing can be performed from this screen. Screen Button Explana tions Display Item Explanations 1. …
SYS-CP842-1.1E 3.Machine System
CP-842E / CP-842ME System Reference 95
Problem
Panel's F-mark pattern size differs from
wire frame's mark pattern size.
Panel's F-mark pattern is deviated from the
wire frame's mark pattern (vision processing
fails).
Panel's F-mark pattern shape differs from
wire frame's mark pattern shape.
Editing Operation
If the F-mark size is incorrect, edit sizes
A, B, and C.
If the F-mark reading area setting is incorrect,
edit the reading area setting.
If the F-mark shape is incorrect, edit the
shape.
Panel's F-mark pattern color differs from the
wire frame's mark pattern color.
If the F-mark color is incorrect, edit the color.
Panel's F-mark pattern is deviated from the
wire frame's mark pattern (vision processing
fails).
If the F-mark reading tolerance is improper,
edit the mark reading tolerance value.
A "0x12055005" pitch check error occurred
during test placement.
Edit the mark pitch tolerance setting for mark
reading operations.
T002E
3.Machine System SYS-CP842-1.1E
96 CP-842E / CP-842ME System Reference

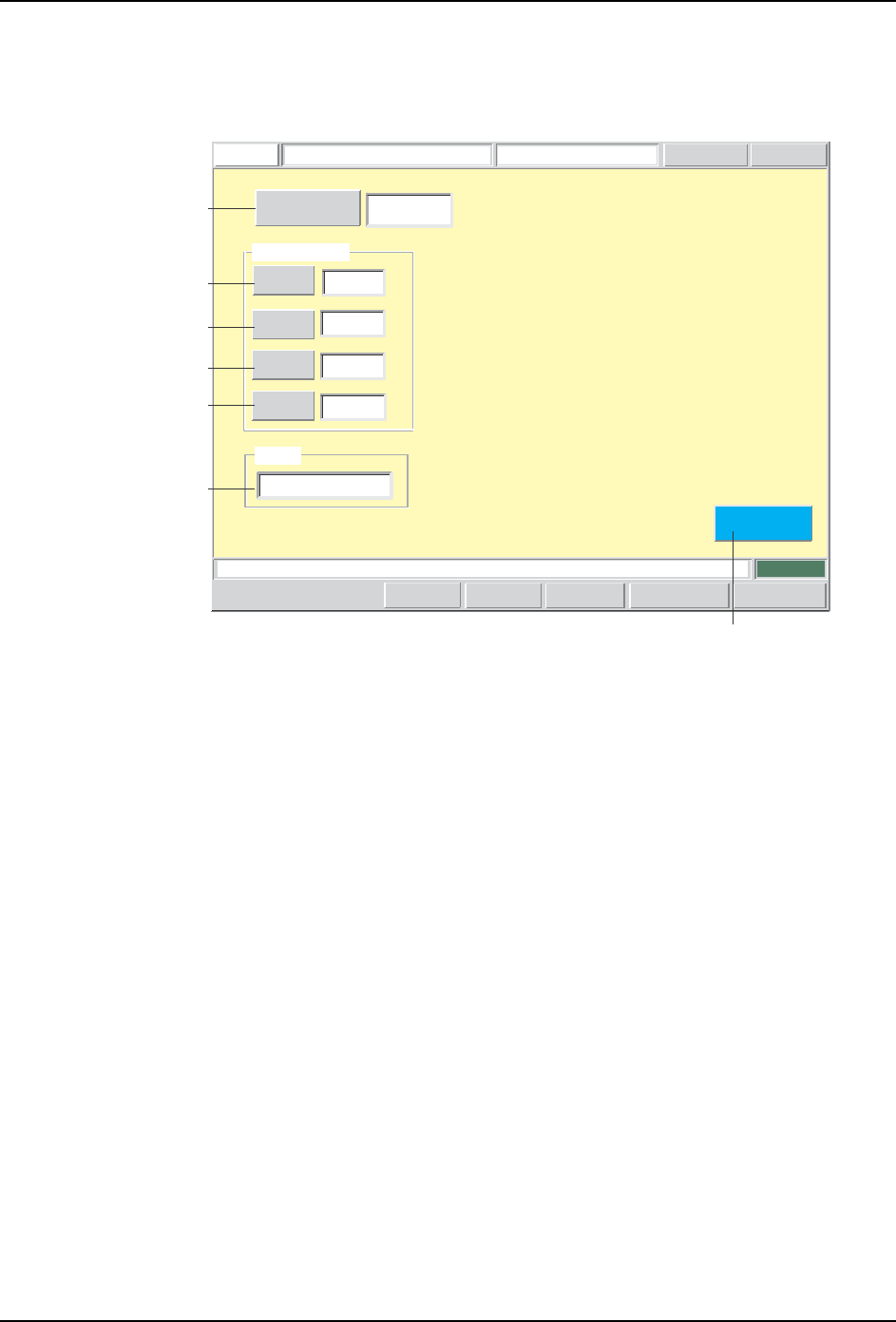

BS-Mark Data Editing Screen
Block skip mark data editing can be performed from this screen.
Screen Button Explanations
Display Item Explanations
1. [Result]:Displays the block skip mark reading result (production/pass).
Editing Operations
The following editing operations can be performed at this screen.
Press the START button.
FUJI
ErrorOperator
JOG:X Y CAM
Servo Count
GEMCCD Monitor
BS Mark Data Editor
FUJI_CP7_2001
Front
Close
3
Brightness
80
1.0000
Mark Data
Size X
Size Y
1.0000
[mm]
[mm]
Color
white
Sequence Number
Result
Product
Set Switch
CP7S2015E
F
A
B
C
D
E
1
A. [Sequence No.]: Switches to the sequence search screen.
B. [Size X]: Changes the block skip mark size “X” (GMKSIZX) which is
specified in the production program’s mark data (MARKDT).
C. [Size Y]: Changes the block skip mark size “Y” (GMKSIZY) which is
specified in the production program’s mark data (MARKDT).
D. [Brightness]: Changes the camera brightness level (GMKLVL) for block skip
mark reading which is specified in the production program’s mark
data (MARKDT).
E: [Color]: Changes the block skip mark color (GMKBORW) which is
specified in the production program’s mark data (MARKDT).
F: [Close]: Returns to the production program editing screen.
SYS-CP842-1.1E 3.Machine System
CP-842E / CP-842ME System Reference 97
Problem
Panel's BS-mark pattern size differs from
wire frame's size.
BS-mark reading result differs from panel's
BS-marks.
BS-mark reading result differs from panel's
BS-marks.
Editing Operation
If the BS-mark size is incorrect, edit sizes
X and Y.
If the BS-mark reading threshold value is
unsuitable, edit the brightness.
If the BS-mark reading color is incorrect,
edit the color.
T003E
