6.1.3 Installing the Machine Control Software

1. With the reboot dialog box displayed (from the previous section), replace the System

Software Recovery Media CD-ROM with the machine control software CD-ROM. Now

you can reboot the system (press [ENTER] on the keyboard). After rebooting, Windows

NT is started, and the system installation starts automatically.

Note: If rebooting occurs without the CD-ROM inserted, Windows NT starts, and the following message

displays: Cant find shortcut link which starts Setup.EXE. If this occurs, click [OK] and insert the

application CD-ROM. The installation starts automatically.

2. When installation starts, the [Setup] screen displays together with a Yes/No confirmation

message asking whether to proceed with the installation. Select [Yes] to proceed to the

product ID input screen.

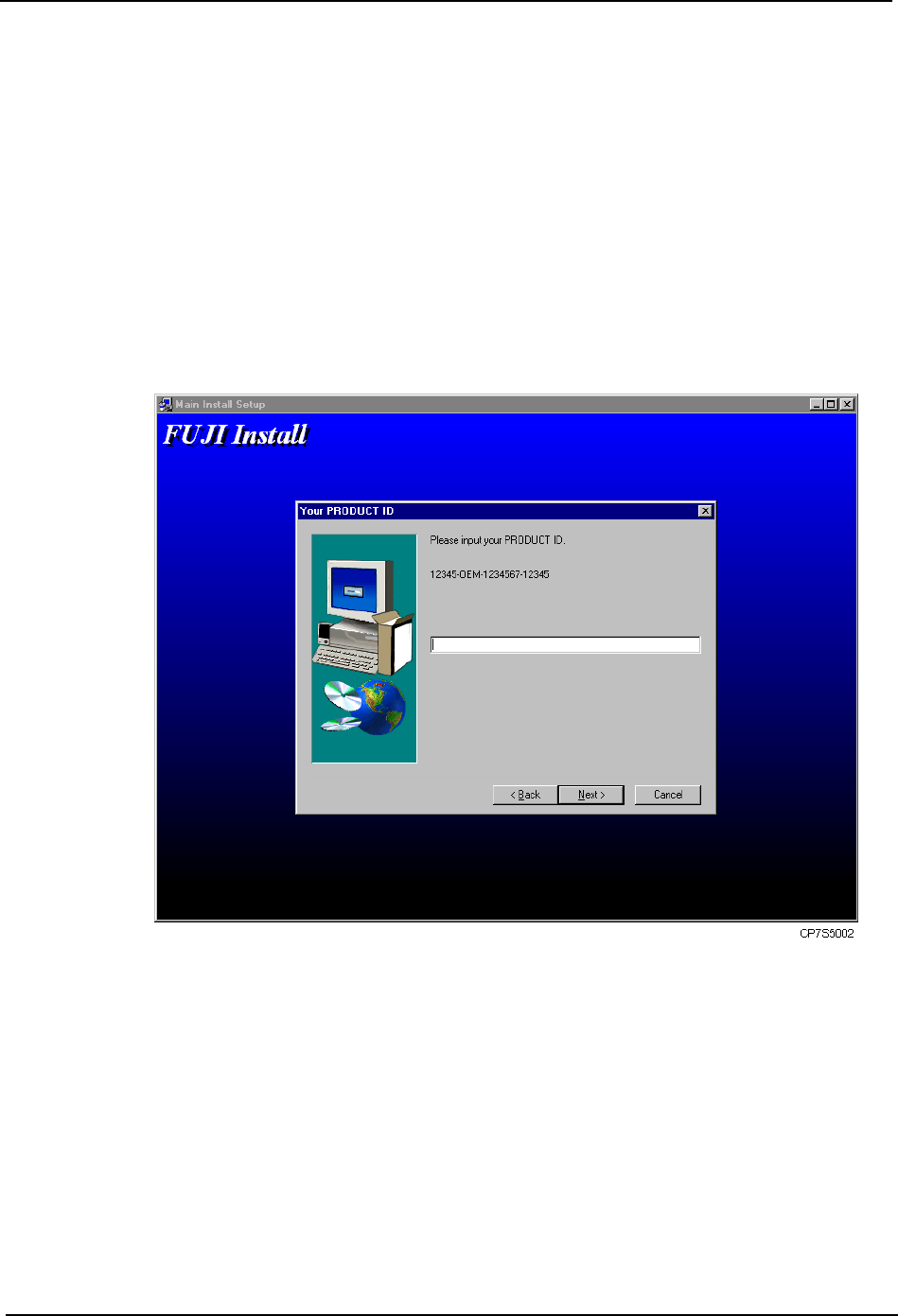

3. Enter the product ID and click [Next].

At the confirmation dialog box which then displays, verify that the ID is correct. If the ID

is incorrect, click [No] to return to the product ID input screen. If the ID is correct, click

[Yes] to continue with the installation. The remainder of the application installation is

performed automatically.

4. A message displays when installation is completed. Remove the CD-ROM and click

[OK].

5. After restarting, Windows NT will start up first, and then the application software will start

up (if correctly installed). If the installation has failed, repeat the installation from the

beginning.

6.System Installation

and Upgrade SYS-CP842-1.1E

216 CP-842E / CP-842ME System Reference

6.2 System Upgrades

Machine control software version upgrades are performed using the application CD-ROM.

Be sure to follow the procedure described below.

Note: This procedure is the same as that carried out in 1.3 Installing the Machine Control Software, except

that it does not continue on from the operating system installation.

1. With the machine power on, insert the application CD-ROM into the CD-ROM drive, then

turn the power off.

2. Turn the machine power on again. After Windows NT starts up, a Yes/No confirmation

message displays asking whether a version upgrade is to occur. Click [Yes] to

automatically begin the version upgrade processing.

3. When the control software upgrade is complete, a message displays requesting the

removal of the CD-ROM from the drive. Remove the CD-ROM and [OK].

4. Following rebooting (restart), the machine starts up with the upgraded system.

SYS-CP842-1.1E 6.System Installation

and Upgrade

CP-842E / CP-842ME System Reference 217

6.3 Installing the ID Tool License Upgrade CD

The procedure of upgrading Vision Tools is explained, which is necessary to perform the

panel ID reading.

1. Insert the license key upgrade CD-ROM into the CD-ROM drive.

2. Press the [Info.] button at the CCD monitor.

3. Press the [Upgrade Vision Tools] button at the [Vision Tool Info.] dialog box.
