2.The Machine SYS-CP842-1.1E 22 CP-842E / CP-842ME System Reference 11. Panel unclamping and unloadin g When populatio n of the current panel(s) is comp lete, the XY-table moves to the o ut-carrier. At this position, the…
SYS-CP842-1.1E 2.The Machine
CP-842E / CP-842ME System Reference 21
9. Fine Theta Adjustment
At station 8 final adjustments are made to the part angle (I).
10. Placement
Turret and XY-table movement coincide at station 9 for part placement (J).
ST1
ST2
ST3
ST4
ST5
ST6
ST7
ST8
ST9
ST13
ST16
ST15
ST14
ST12
ST11
ST10
H
Parts camera
ST1
ST2
ST3
ST4
ST5
ST6
ST7
ST8
ST9
ST13
ST16
ST15
ST14
ST12
ST11
ST10
I
C7SM1002a
2.The Machine SYS-CP842-1.1E
22 CP-842E / CP-842ME System Reference

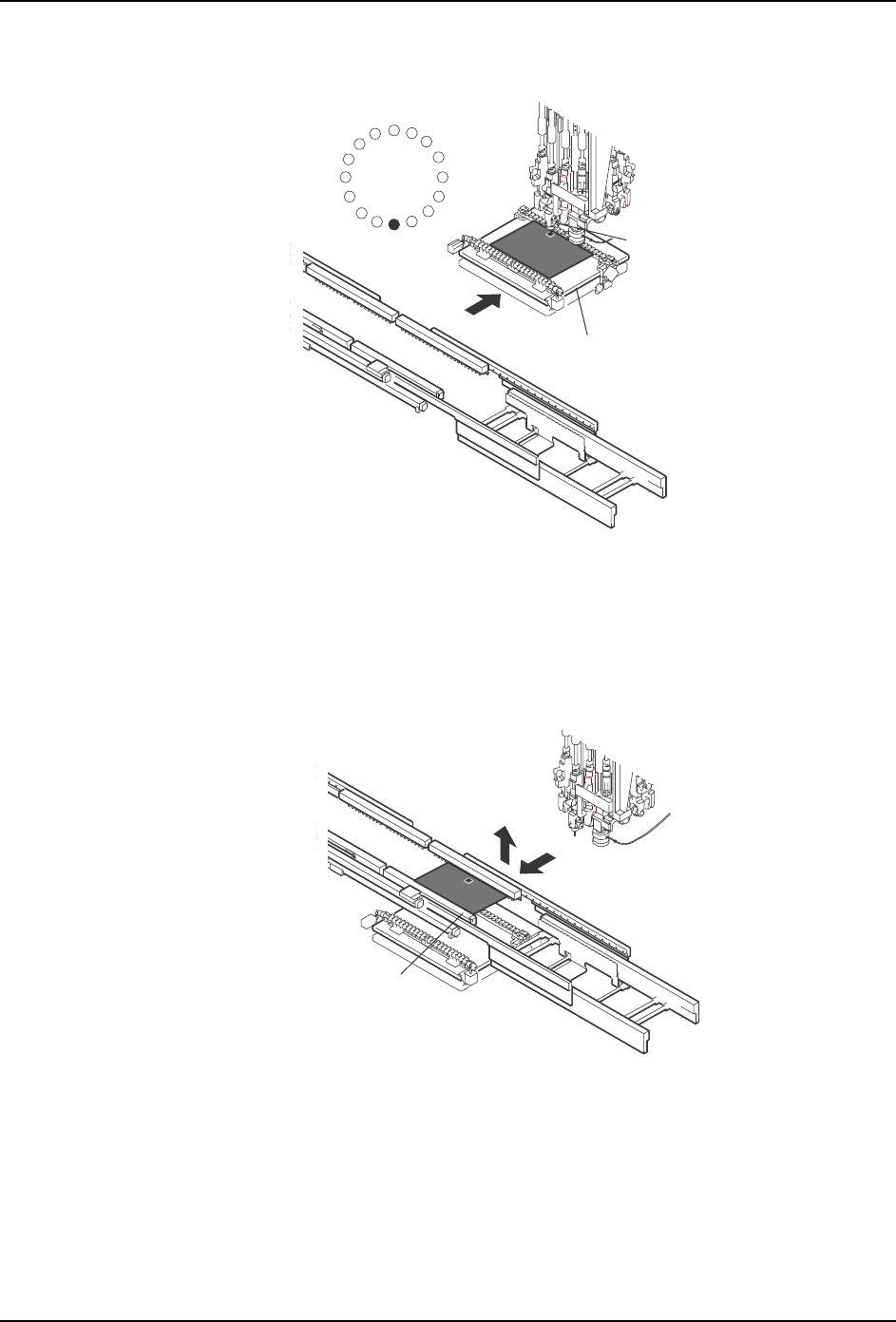

11. Panel unclamping and unloading
When population of the current panel(s) is complete, the XY-table moves to the out-carrier.
At this position, the XY-table is raised and the panel is transferred from the table to the out-
carrier (K).
The out-carrier subsequently moves to the out-conveyor and the panel is lowered onto the
out-conveyor via the out-lifter. The panel is unloaded (L).
J
XY-table
Placing head
ST1
ST2
ST3
ST4
ST5
ST6
ST7
ST8
ST9
ST13
ST16
ST15
ST14
ST12
ST11
ST10
K
Out-carrier
SYS-CP842-1.1E 2.The Machine
CP-842E / CP-842ME System Reference 23
Note: This explanation describes single panel production. The double panel production
option is the same except for the use of stoppers to position the second panel at the in- and
out-conveyor.
L
Out-conveyor
C7SM1003a
