3.Machine System SYS-CP842-1.1E 36 CP-842E / CP-842ME System Reference selected program now displays at “Cur rent Program” ( the machine foregrou nd). 4. Press [Clos e] to return to the [Main] screen.

SYS-CP842-1.1E 3.Machine System

CP-842E / CP-842ME System Reference 35

Note: The production programs are held in the machines hard drive. The number of programs which can be

stored is limited only by the amount of hard disk space available. Scroll down to view the full list of

programs.

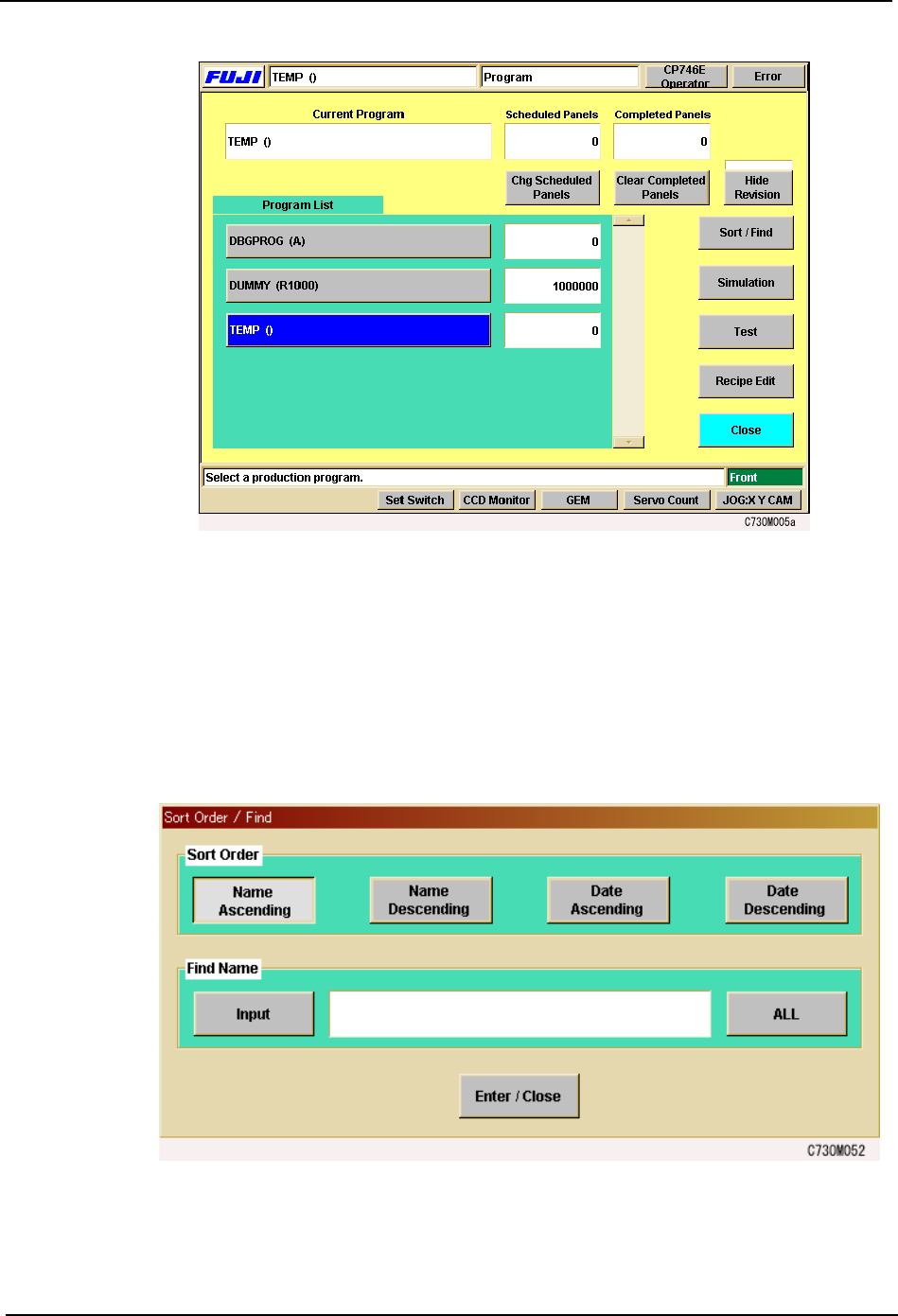

2. The [Sort Order/Find] function can alter of the order of the program list held at the

machine. It can also search the list by program name. To alter order of the program list,

select the type of ordering from the choices in the [Sort] section. To display program

names that contain a particular word string, select [Input] and use the virtual keyboard

to enter the word string. When finished, push the [Enter/close] button.

Note: To display all programs again after using the search function, press [All] in the [Sort Order/ Find] box.

3. Press [OK] after selecting the program to be used in production. The name of the

3.Machine System SYS-CP842-1.1E

36 CP-842E / CP-842ME System Reference

selected program now displays at “Current Program” (the machine foreground).

4. Press [Close] to return to the [Main] screen.

SYS-CP842-1.1E 3.Machine System

CP-842E / CP-842ME System Reference 37

3.1.3 Modes of Running the Machine

The machine has settings which allow the user to set how the machine runs. These settings

are divided into Operation modes and Production modes. The standard combination of

modes used during assembly is Operation set to Production, and Production mode set to

Automatic. The other modes facilitate testing of machine operation and production

programs.

Setting the Operation Mode

The machine has five modes of operation, Production, Idle, Idle operation with loading Idle

operation without pickup and Pass. These modes of operation have different purposes as

is explained below.

Note: Both Idle operation with loading and Idle operation without pick up can be selected at the same time.

Procedure

1. Press [Operation] at the [Main] screen, the [Operation] screen displays.

2. Select the desired operation mode by pressing either [Production], [Idle] or [Pass].

3. When using idle mode with additional functions, select [Loader] and/or [No pick up] in

the “Loader 2”section. Both can be selected at the same time.

Production: This mode is used during assembly. Parts are picked

up, part inspection is performed, and the parts are

placed on the panel.

Idle: This mode is used primarily for adjustments and test

runs. Operation is identical to that which occurs in the

Production mode, except that panel changes and vision

processing do not occur. When using the idle mode,

there must be no feeders at the feeder pallets.

Idle operation with loading: This is the Idle mode with the addition of loader

movement performed by the loader. When using this

mode, there must be no feeders at the feeder pallets.

Idle operation without pickup: Operates in the same manner as the standard idle

mode except that pickup is not performed.

Pass: Pass mode is used when the machine is not used in

current production. In pass mode the machine simply

acts as a conveyor, moving the panel on to the next

machine in the line.

Production

Operation Mode

Pass

Idle
