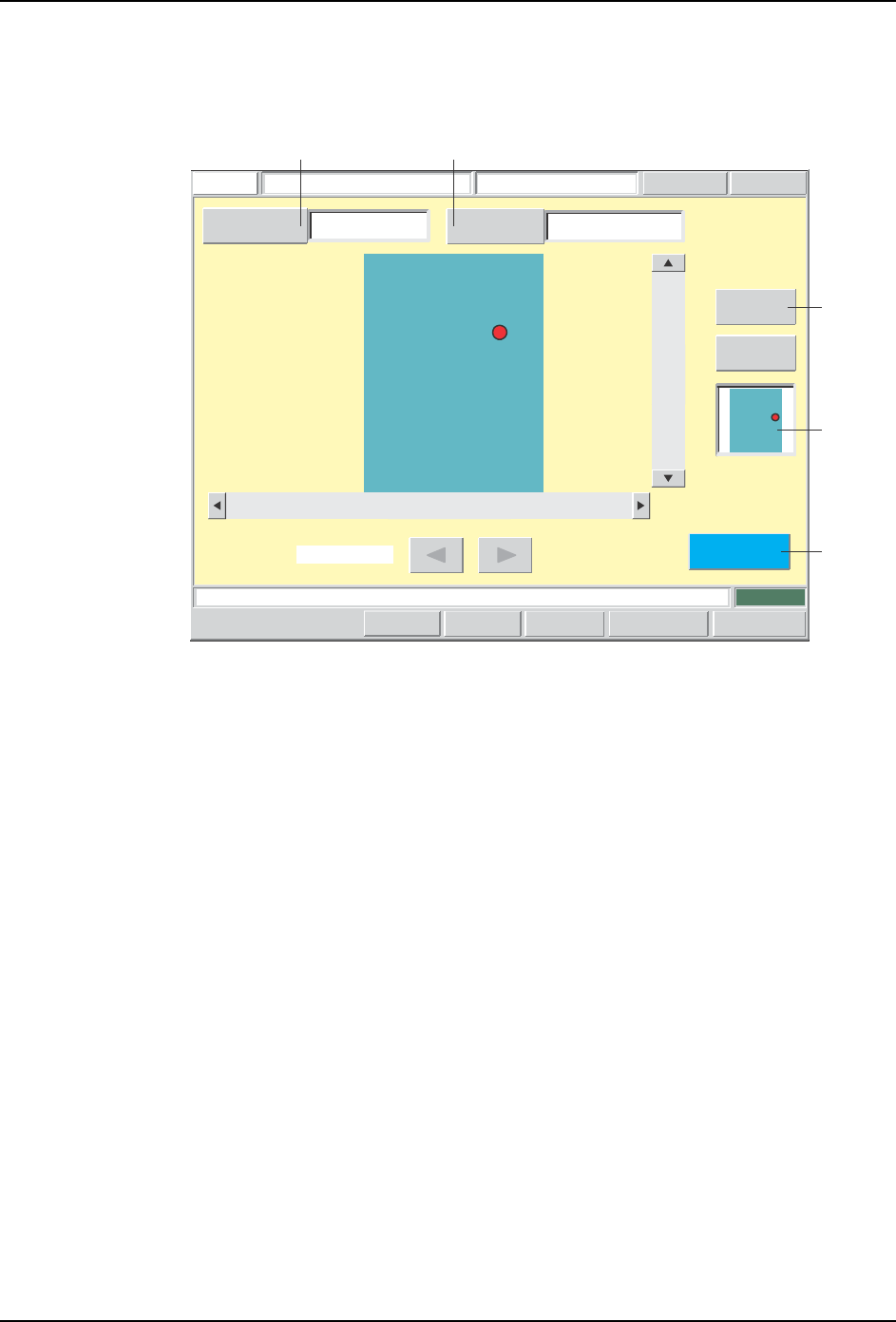

Sequence Search Screen
The sequence for which a simulation or test placement is desired is selected on this screen.
Screen Button Explanations
Display Item Explanations
Specifying A Sequence
A sequence can be specified in the following 3 ways.
Specify the sequence number.
FUJI
ErrorOperator
JOG:X Y CAM
Servo CountGEMCCD Monitor
Sequence SearchFUJI_CP7_2001
Front
Close
123
Sequence Number
ZOOM +
ZOOM -
Move Cursor
Reference
Designation Search
MIN
Set Switch
CP7S2010E
AB
C
1
D
A. [Sequence No.]: Displays a ten-key pad where the desired
sequence number (search object) can be
entered.
B. [Reference Designator Search]: Displays a ten-key pad where the desired
referencedesignator (search object) can be
entered.
C. [ZOOM+]: Zooms in and enables image scrolling, and
sequence cursor movement.
D. [Close]: Returns to either the simulation or the test
placement screen (returns to the screen from
which this screen was accessed).
1. [Monitoring Preview] Displays the panel position of the sequence number indicated
by the [Sequence No.] item (item A. above).
SYS-CP842-1.1E 3.Machine System
CP-842E / CP-842ME System Reference 85
1. By entering the sequence number directly.
2. By entering a reference desighnator.
3. By moving the cursor to the desired position on the modeling object.
A. Click the [Sequence No.] button to display a ten-key pad, then enter the desired
sequence number. If the modeling object is enabled, the part for the specified
sequence displays on the modeling object.
B. Click the [Reference Designator] button to display a ten-key pad, then enter the
search object reference designator. If the modeling object is enabled, the part for
the specified sequence displays on the modeling object.
C. Click the [ZOOM+] button to enable the modeling object. The procedure for
specifying a sequence using the modeling object is explained on the following
page (Sequence Search 2 Screen).
3.Machine System SYS-CP842-1.1E
86 CP-842E / CP-842ME System Reference

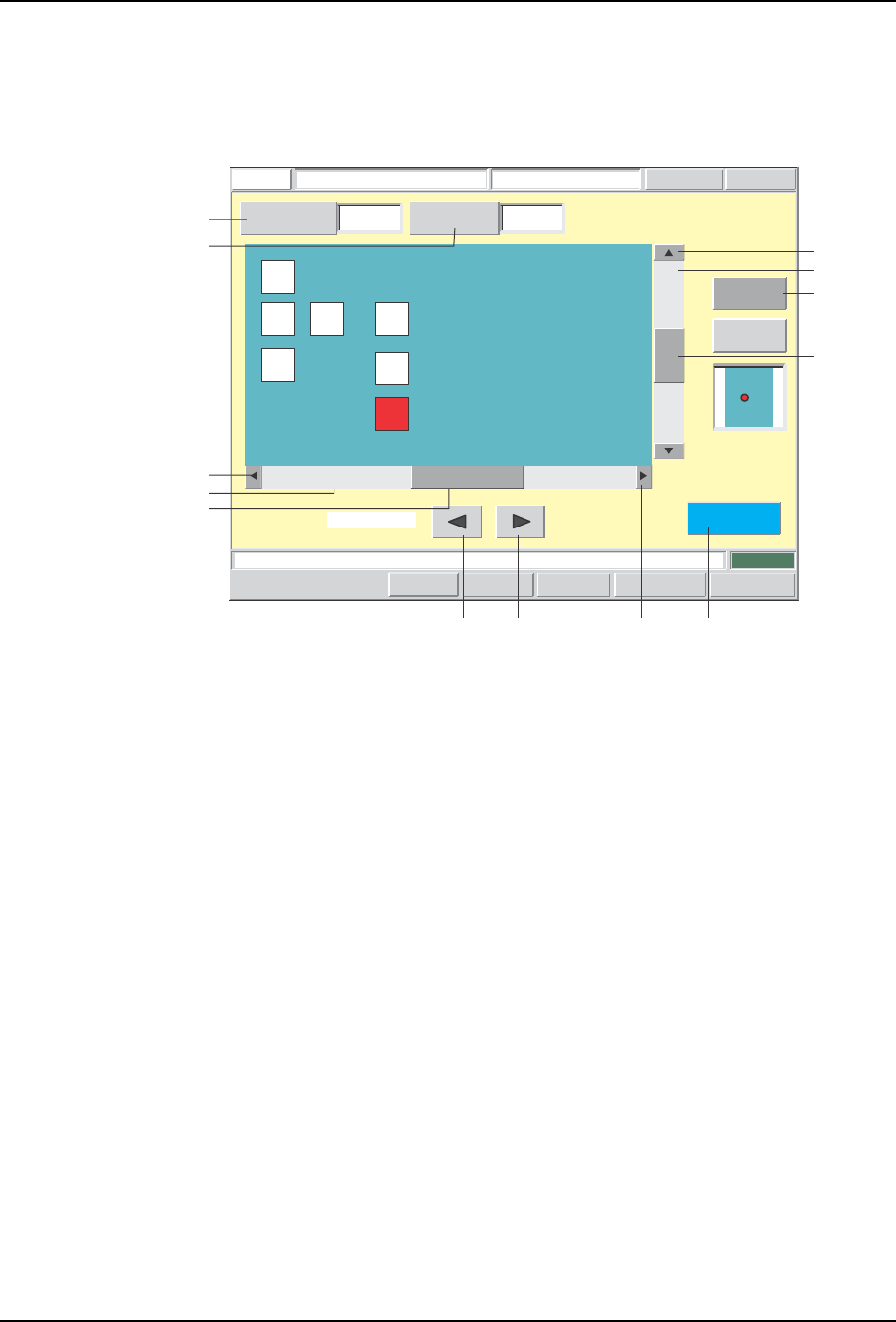

Sequence Search 2 Screen
Click the [ZOOM +] button on the sequence search screen to zoom in (enlarge) on the
modeling object. The desired sequence can then be selected from the modeling object.
Specify the sequence number.
