3.Machine System SYS-CP842-1.1E
104 CP-842E / CP-842ME System Reference

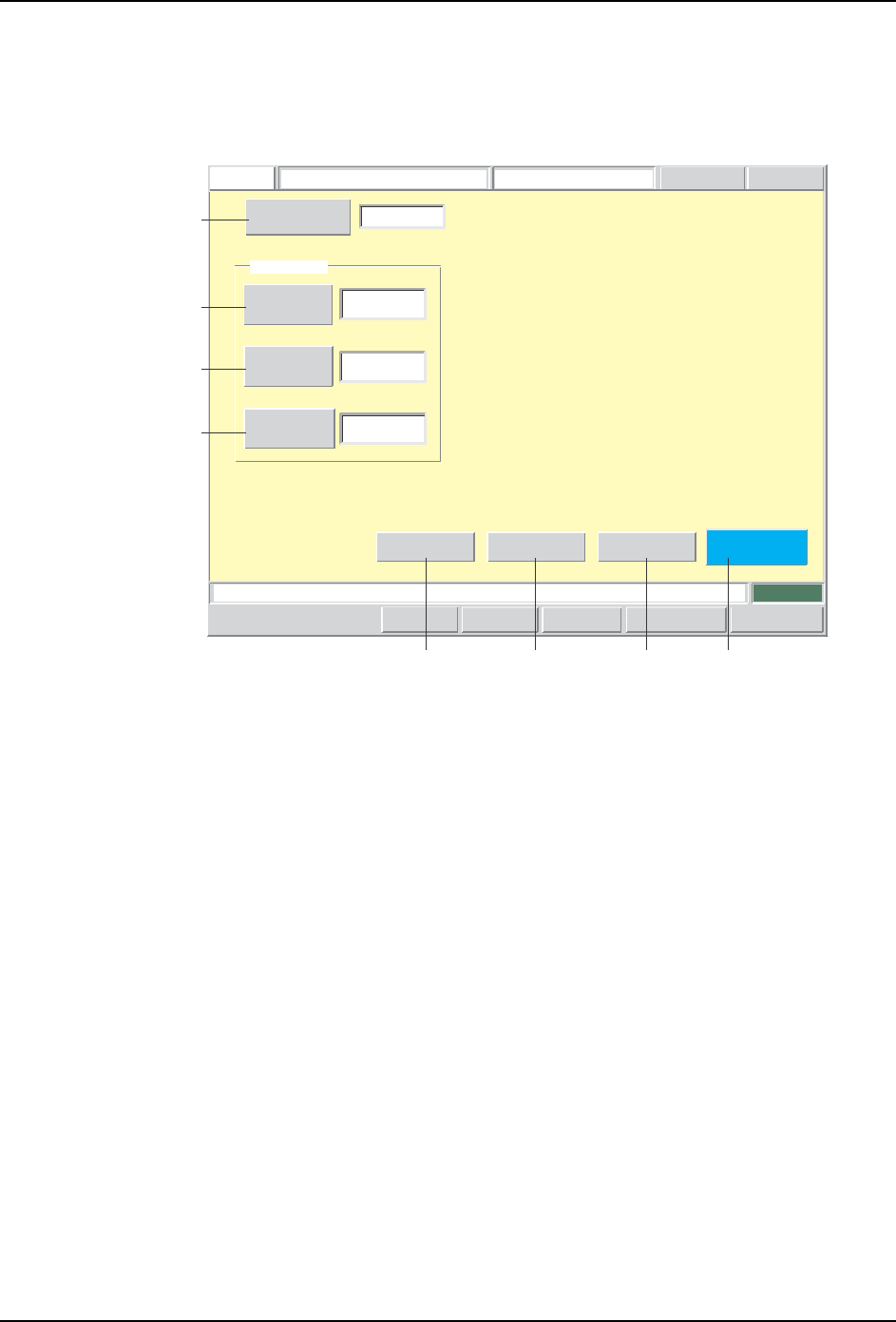

Vision Type Editing Screen
The vision type can be edited from this screen. For vision type details, refer to the SMD3
Operation Manual.
Screen Button Explanations
Close
Lead
ElementBody
Vision
Type
Camera
Type
Lighting
1
0
Sequence Number
FUJI
FUJI_CP7_2001
Vision Type Editor
Operator
Error
Push the START button.
Front
CCD Monitor GEM Servo Count
JOG:X Y CAM
Basic Data
Set Switch
123
10
CP7S2019E
A
B
C
D
HE F G
A. [Sequence No.]: Switches to the sequence search screen.
B. [Vision Type]: Changes the vision processing unit’s “vision number”
(PTPVICVT) which is specified in the production program’s part
shape data (VISION).
Setting examples:
10: Square chips
20: SOT (small outline transistor)
100: IC lead parts
C. [Camera Type]: Changes the image acquisition camera type (PENVICT) which is
specified in the production program’s part shape data (ENVDT).
Setting examples:
0: Wide camera
1: Narrow camera
D. [Lighting]: Changes the part lighting type (PENVILIT) which is specified in
the production program’s part shape data (VISION).
Setting examples:
SYS-CP842-1.1E 3.Machine System
CP-842E / CP-842ME System Reference 105
0: Backlight
1: Frontlight
E. [Body]: Switches to the body data editing screen.
F. [Element]: Switches to the element data editing screen.
G. [Lead]: Switches to the lead data editing screen.
H. [Close]: Returns to the production program editing screen.
3.Machine System SYS-CP842-1.1E
106 CP-842E / CP-842ME System Reference
Editing Operations
The following editing operations can be performed at this screen.
Problem Editing Operation
A vision processing error occurs during test
placement.
Error code: 0x1CA18005
No part line was found.
Error code: 0x1CA18006
No part line was found.
If the vision type is incorrect, edit the vision
type setting.
A vision processing error occurs during test
placement.
If the lighting is incorrect, edit the lighting
setting.
A vision processing error occurs during test
placement.
Error code: 0x1CB01101
Incorrect camera type setting.
If the camera type is incorrect, edit the
camera type setting.
T007E
