1.Safety Guideline SYS-CP842-1.1E
8 CP-842E / CP-842ME System Reference
1.3 Safety Rules for Individual Machine Types
1.3.1 CP-842E/842ME
WARNING
Do not insert hands or other body parts into the conveyor inlets.
Body parts may get caught in the machine resulting in injury.
Do not operate the machine when the front/rear cover has been
removed.
Body parts may get caught in the machine resulting in injury.
Do not perform cam box maintenance with power to the machine on.
Injury may result from electric shock if maintenance on the cam box
is carried out with the power to the machine on.
Caution required if cam is not at its origin (0°).
1. Operators must ensure the cam is at its origin (0°) prior to
carrying out any operations on the machine.
If the cam is not at its origin, recoil from springs used to drive the
placing heads may cause unexpected movement which is
potentially dangerous for the operator.
If an emergency stop occurs, the machine stops immediately. In
this case there is a strong possibility that the cam will not be at its
origin.
2. If the cam is not at its origin when the machine stops, use the
cam handle to return it to its origin.
Do not stare into the laser beam.
(On machine fittied with laser type fiber sensors (class 2))
Exercise extreme caution when working in areas where there is a
risk of eye damage from the laser beams.
SYS-CP842-1.1E 1.Safety Guideline
CP-842E / CP-842ME System Reference 9
1.4 Safety Labels

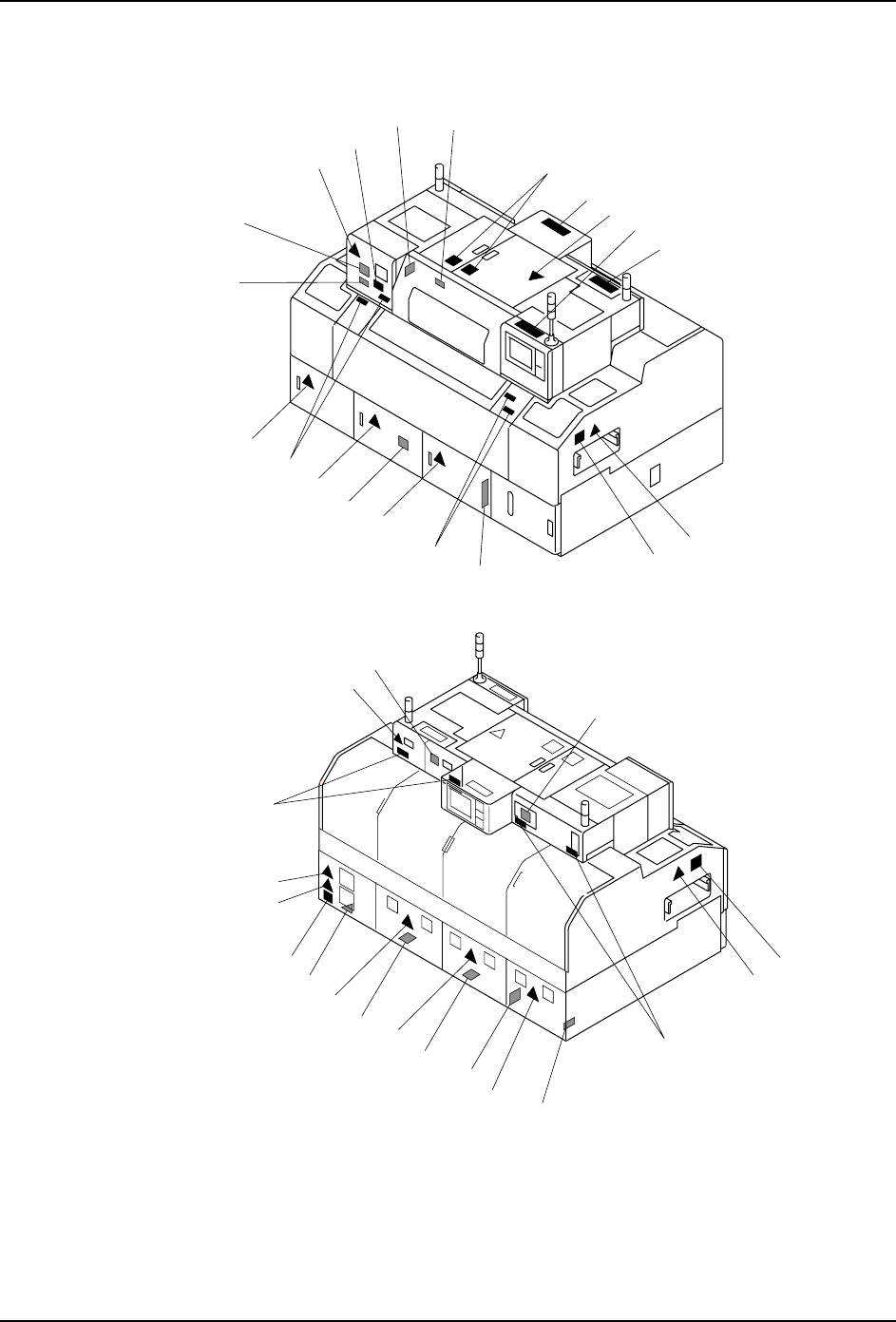

To warn the operator of hazards, safety labels are attached to the machine at the positions
indicated in the figure below.
Familiarize yourself with each label and its message before operating the machine.
1.4.1 <CP-842E>
Frontside
1
1
1
7
7
7
2
5
5
3
2
1
8
1
8
6
1
13
13
14
5
3
Rearside
8
5
C7SM0001
1
9
5
9
4
1
10
6
8
11
8
1
1
8
1.Safety Guideline SYS-CP842-1.1E
10 CP-842E / CP-842ME System Reference
1.4.2 <CP-842ME>
Frontside
1
1
1
7
7
7
2
5
5
3
2
1
8
1
8
6
5
3
Rearside
8
5
13
13
14
C7SM0007
1
9
5
9
4
1
10
6
8
11
8
1
1
8
1
