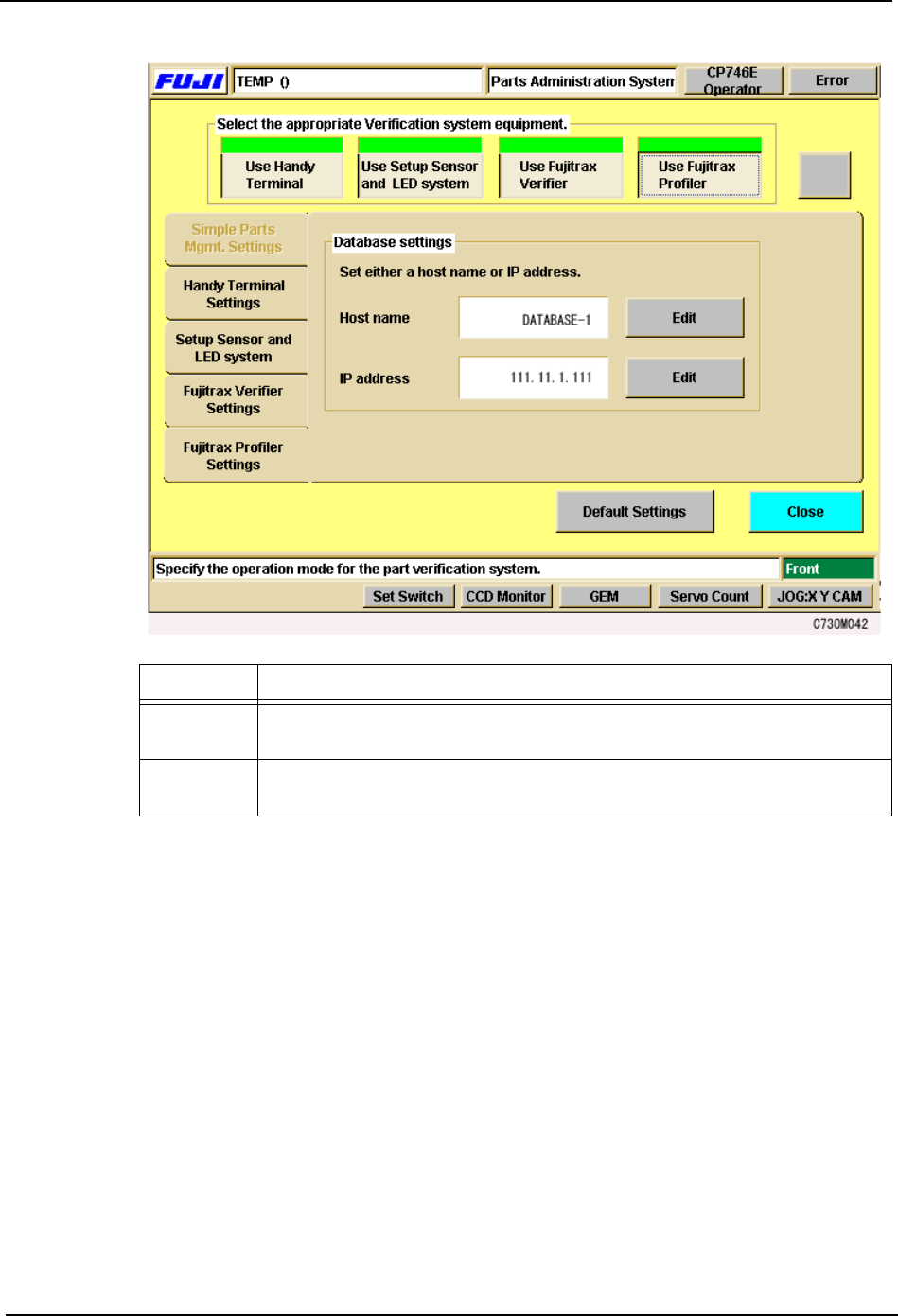

Items Explanation

Host name This button is used to set the Fujitrax-Profiler host name. Specify either a

host name or an IP address.

IP Address This button is used to set the IP address for the Fujitrax-Profiler host.

Specify either a host name or an IP address.

3.Machine System SYS-CP842-1.1E

122 CP-842E / CP-842ME System Reference

3.5.4 Settings for Panel ID (1D Code) Reading by Dedicated Barcode

Reader

Setting the Connection Port No. For Barcode Reader Communication

Note: On machines equipped with barcode readers, this setting is specified at the factory, and does not

require setting by the user.

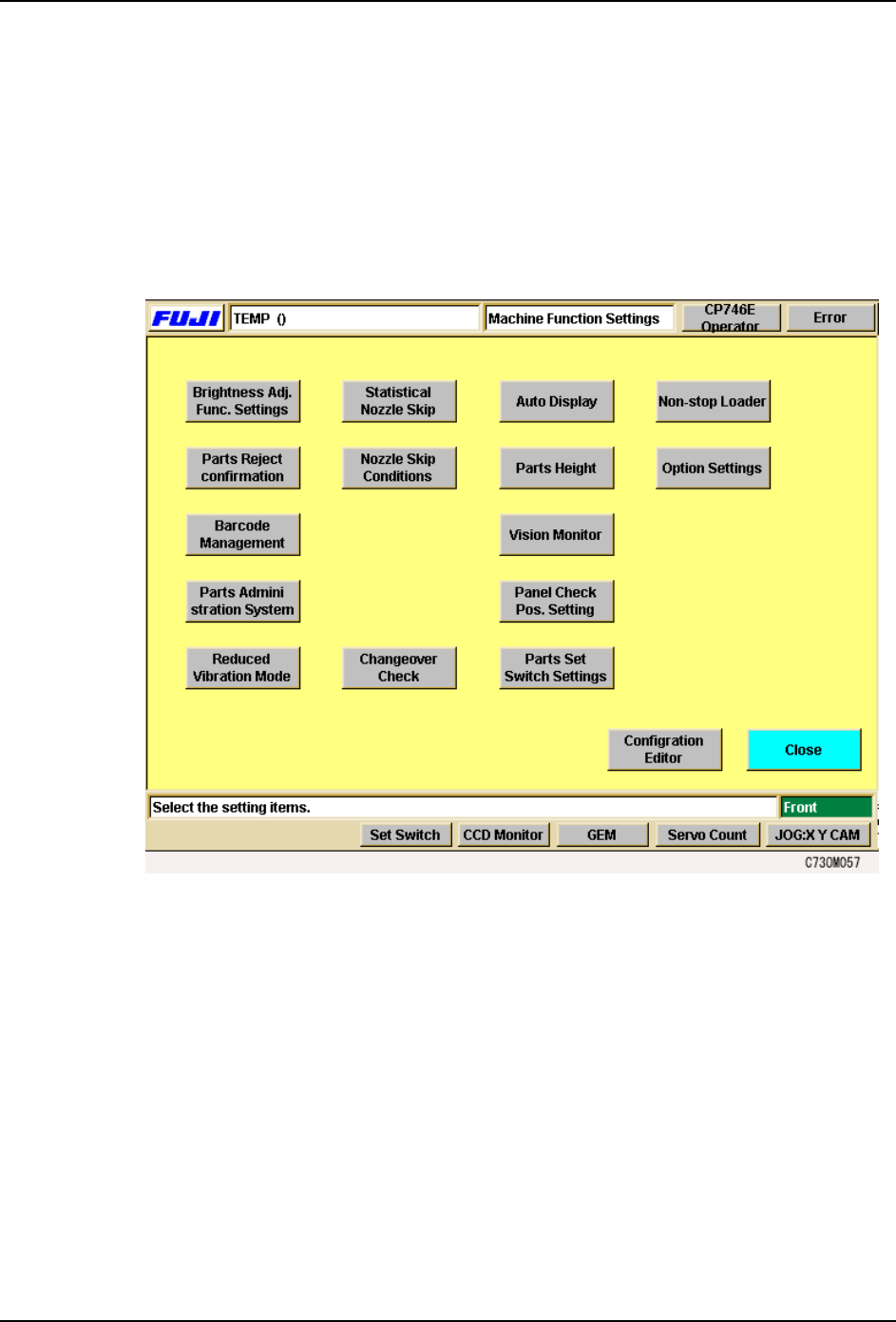

Select the [Maintenance] - [Configuration] commands to display the [Barcode

Management] setting screen.

The communication port to be used for the panel ID reader connection can be specified at

the [Barcode Management] screen. ID reading tests can also be performed here.

SYS-CP842-1.1E 3.Machine System

CP-842E / CP-842ME System Reference 123

1 A green indicator appears over the [Use Upper ID Reader] button when on (upper ID

reader “Used”).

2 Depressed when “Used” setting is specified.

3 Sets the Upper ID Reader’s connection port No. Press to display a ten-key pad, then

enter the port No. to which the Upper ID Reader is to be connected. Use care to avoid

entering a vacant port No. or a port No. in use by another device. This port No. setting

is a factory setting, and does not normally require changing.

4 “Port No.” display area.

5 On/off indicator for the [Use Lower ID Reader] button.

6 Depressed when “Used” setting is specified.

7 Sets the Lower ID Reader’s connection port No. Press to display a ten-key pad, then

enter the port No. to which the Lower ID Reader is to be connected. Use care to avoid

entering a vacant port No. or a port No. in use by another device. This port No. setting

a factory setting, and does not normally require changing.

8 “Port No.” display area.
