3.Machine System SYS-CP842-1.1E

44 CP-842E / CP-842ME System Reference

3.1.5 Nozzle Related Functions

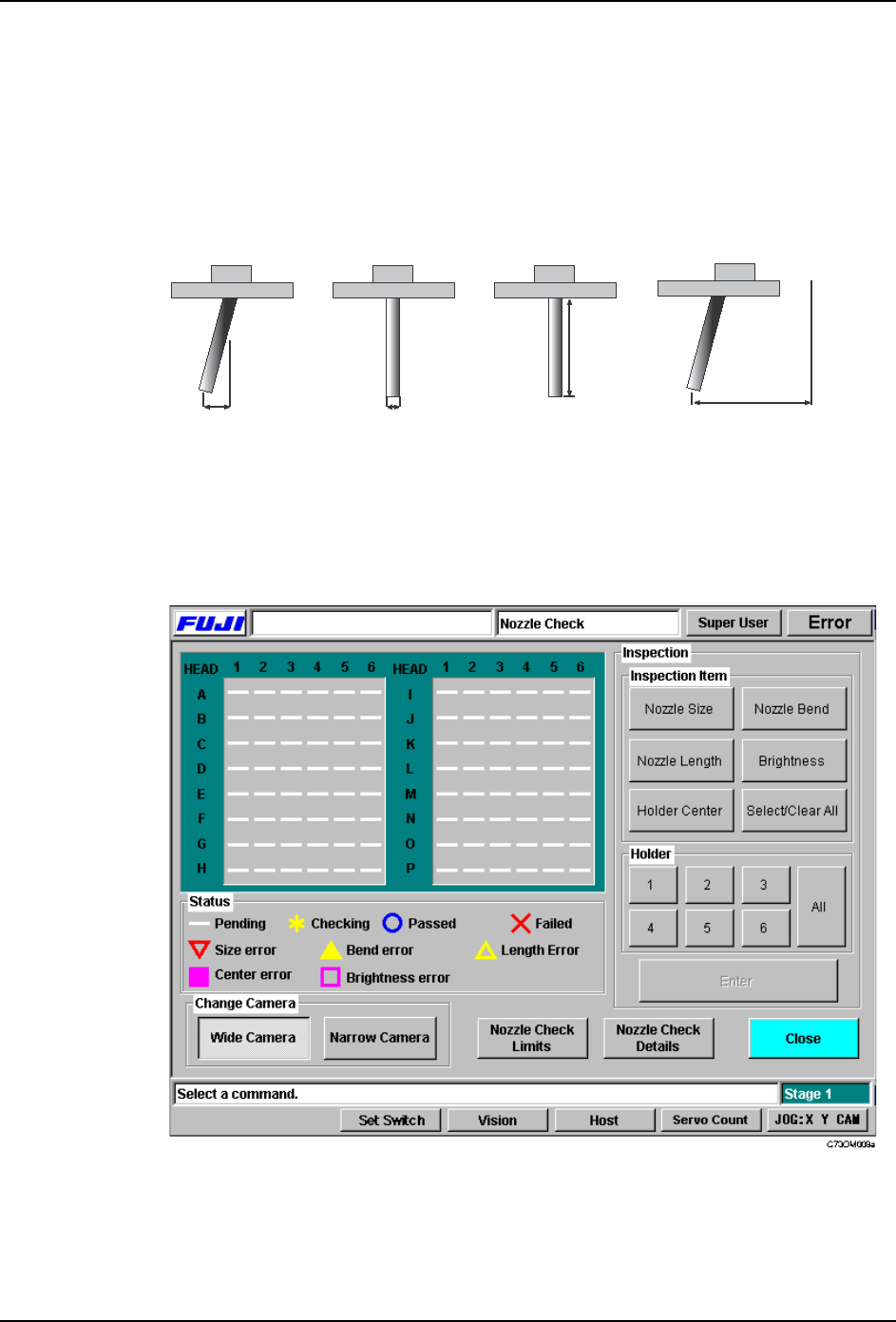

Performing a Nozzle Check

A nozzle check is performed to determine the condition of the nozzles on the placing heads.

The following four types of nozzle check are available, nozzle bend check, nozzle diameter

check, nozzle length check, and the nozzle holder center check.

Procedure

1. At the [Main] window, select [Nozzle Check]. The [Nozzle Check] screen displays.

2. From the “Inspection Item” section, select which of the nozzle checks you wish to carry

out. Select [Select All] to choose all tests as a batch.

3. At the “Holder” section, select which of the nozzles positions (1 to 6) will be checked.

Select [All] to choose all six holders as a batch.

Bend Diameter Length

Holder center

End of

nozzle

Inspection

origin

C73OM001a

SYS-CP842-1.1E 3.Machine System

CP-842E / CP-842ME System Reference 45

4. To specify the tolerance limits for the nozzle check, press [Nozzle Check Limits].

5. At “Change Display”, select between displaying results for the narrow camera, or the

wide camera.

6. When your settings are complete, press [Enter] to enable the START button. Press the

START button to execute the nozzle check.

When the START button is pressed, the machine begins the specified nozzle checks. The

progress of the check is shown at the green table in the [Nozzle Check] screen. A key of

the symbols is below the results table. When the test is complete, you will be able to see

which nozzles can be used, and which nozzles need to be replaced.

Note: Nozzle replacement information is in your Mechanical Reference.

To view the statics of the nozzles gathered by the machine during the nozzle check, press

[Nozzle Check Details].

Note: Only the nozzle length inspection is performed for frontlight type black nozzles.

3.Machine System SYS-CP842-1.1E

46 CP-842E / CP-842ME System Reference

Specifying Nozzle Tolerance Values at the Machine

You can set the tolerances values for the various nozzle checks at the [Nozzle Check

Limits] screen. The settings made at this screen are used to determine whether nozzles

are acceptable for production or not.

Procedure

1. At the [Main] screen, press [Nozzle Check]. The [Nozzle Check] screen displays.

2. From the [Nozzle Check] screen, press [Nozzle Check Limits]. The following screen

displays.

3. The screen for holder 1 tolerance values displays first. Use the up and down arrows on

the right to move between the nozzle holders.

4. In the “Set Limit Value” section, select the tolerance to be set. When you select a

command, the numeric keypad displays. Input the tolerance limit (the input range

displays at the numeric keypad), and press [OK] to enter the setting.

5. When your settings are complete, press [Close] to return to the [Nozzle Check] screen.

Skipping a Nozzle Manually (Changing Nozzle Status)

Users can manually change the status of a nozzle at the machine. There are five nozzle

statuses..

OK: The condition of the nozzle is acceptable for production.

NU (Not Used): There is no nozzle in that position.
