SYS-CP842-1.1E 3.Machine System
CP-842E / CP-842ME System Reference 71

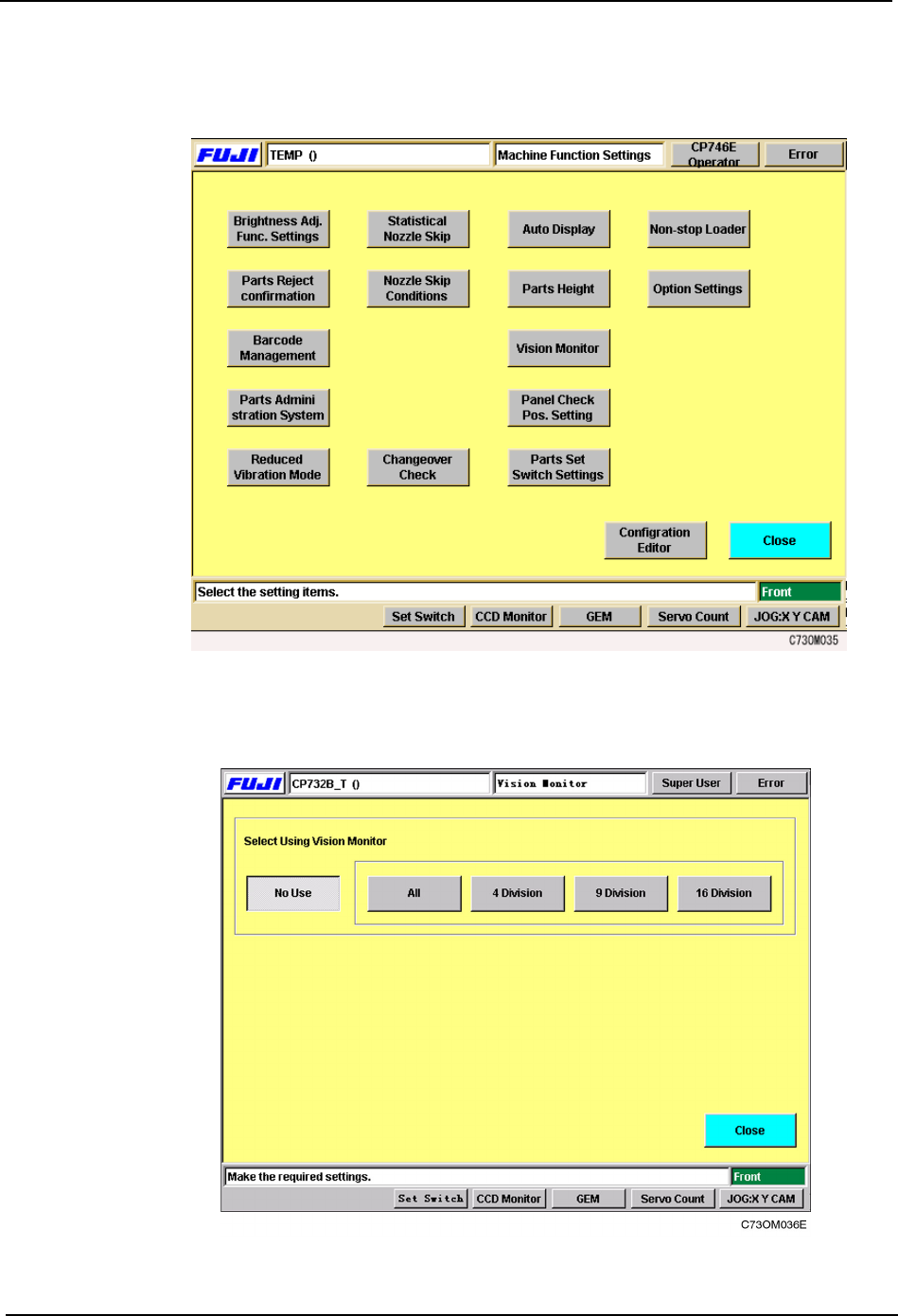

Camera Monitor Settings
1. Select [Maintenance] [Configuration] [Vision Monitor] from the [Main] screen.
2. Select from [All], [4 Division], [9 Division] or [16 Division] for the display mode at the
external vision monitor.
3.Machine System SYS-CP842-1.1E
72 CP-842E / CP-842ME System Reference
Display
Display is carried out during automatic operation, nozzle checks and PAM measurements.
Appended information for the current display is shown at the bottom left, if a cycle or
emergency stop occurs .
Note: This is not a realtime display during operation.
Description of the Appended Information

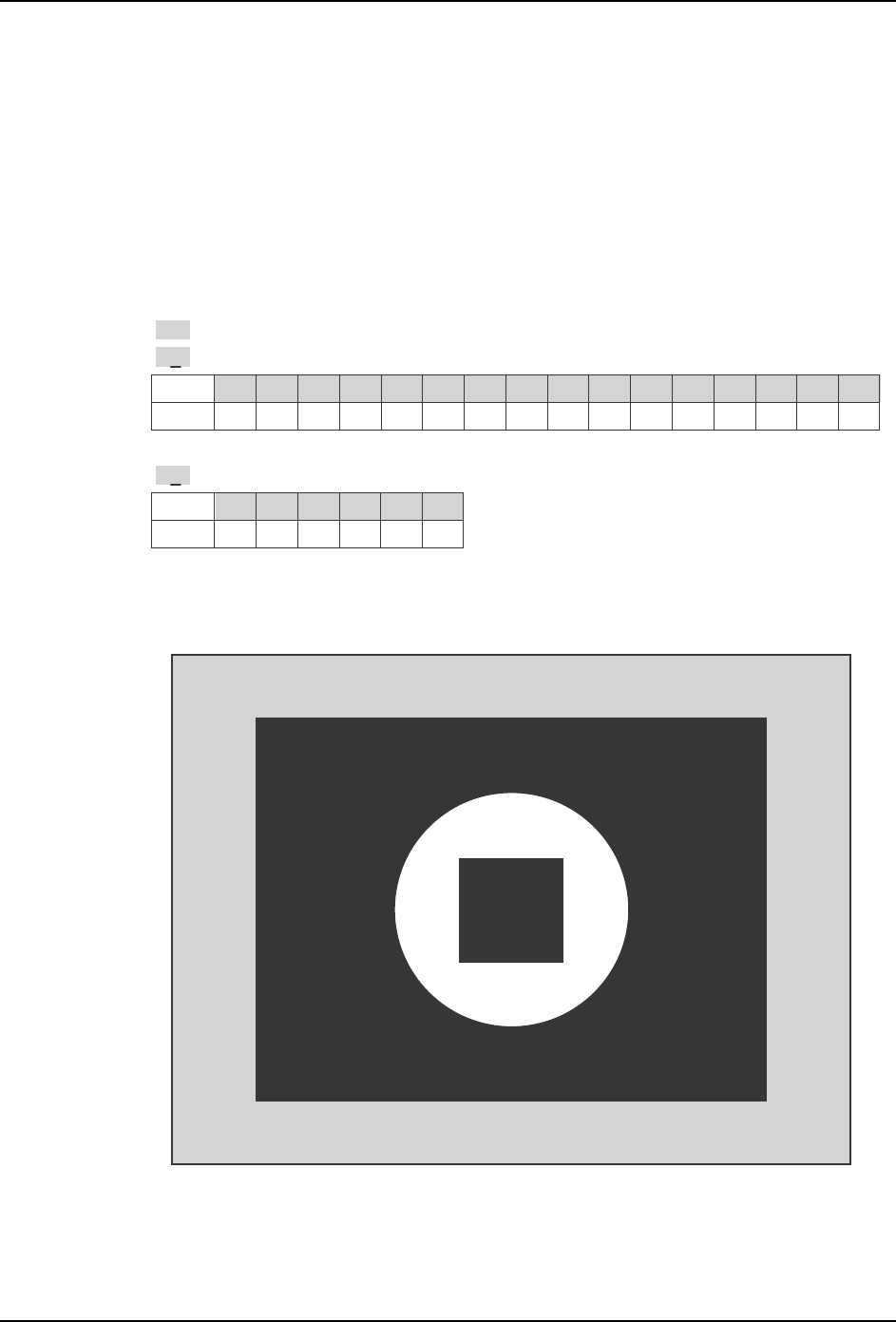

Display when [ ALL ] is selected
Display
Head
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
ABCDE FGH I J KLMNO
P
Display
Holder
012345
123456
.
>>
: Indicates the image is the last processed image acquired.
H8
: Indicates the image is of I-head.
N2
: Indicates the image is of holder 3.
T010E
>>
H8 N2
CP7S2023E
SYS-CP842-1.1E 3.Machine System
CP-842E / CP-842ME System Reference 73
Display when [ 4 Division ] is selected
Display when [ 9 Division ] is selected
>>
H8 N2 H9 N2
H6 N2 H7 N2
CP7S2024E
CP7S2025E
H1 N2
H1 N2
H4 N2
H4 N2
H7 N2
H7 N2
H2 N2
H2 N2
H5 N2
H5 N2
>>
>>
H8 N2
H8 N2
H3 N2
H3 N2
H6 N2
H6 N2
H9 N2
H9 N2
H1 N2
H4 N2
H7 N2
H2 N2
H5 N2
>>
H8 N2
H3 N2
H6 N2
H9 N2
