FlexTRAK Series 2MB Mater ial Handler Adden dum Tour of HMI Softw are for the Material Handler © 2023 Nordson Corporation 5-37 Figure 5-17 Alarm Counts Screen Table 5-18 Alarm Counts Screen Controls and Indicators Contro…
FlexTRAK Series 2MB Material Handler Addendum Tour of HMI Software for the Material Handler
5-36 © 2023 Nordson Corporation
3. Touch the RESET USER COUNT button.
„ The User Count screen opens (Figure 5-16).

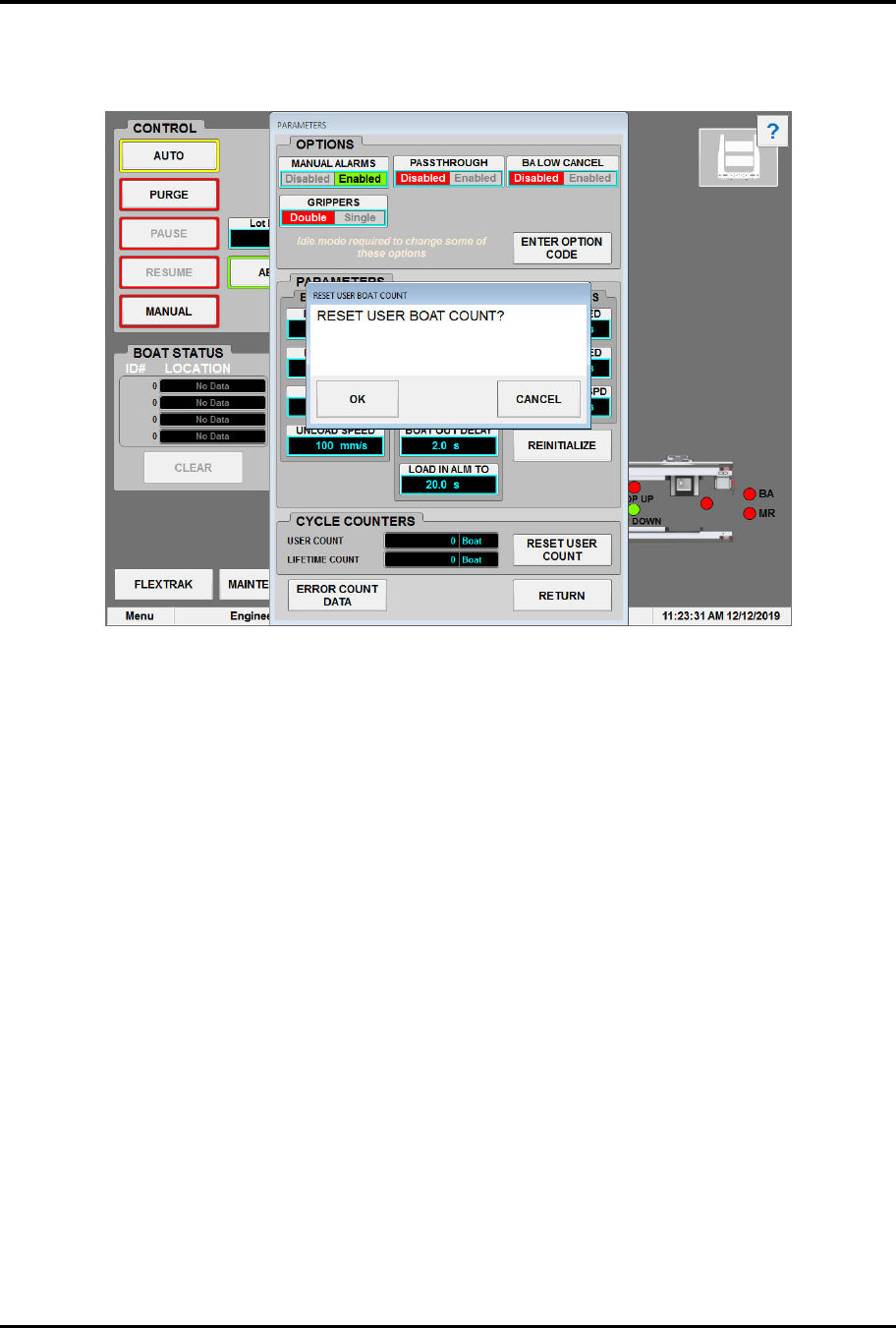

Figure 5-16 User Count Screen
5.5.5.2 Alarm Counts Screen
To view the alarm counts screen:
1. On the MH Overview screen, touch the MAINTENANCE button.
„ The Maintenance Master screen opens (Figure 5-5).
2. Touch the SYSTEM button.
„ The Parameters screen opens (Figure 5-15).
3. Touch the ERROR COUNT DATA button.
„ The Alarm Counts screen appears (Figure 5-17).
FlexTRAK Series 2MB Material Handler Addendum Tour of HMI Software for the Material Handler
© 2023 Nordson Corporation 5-37

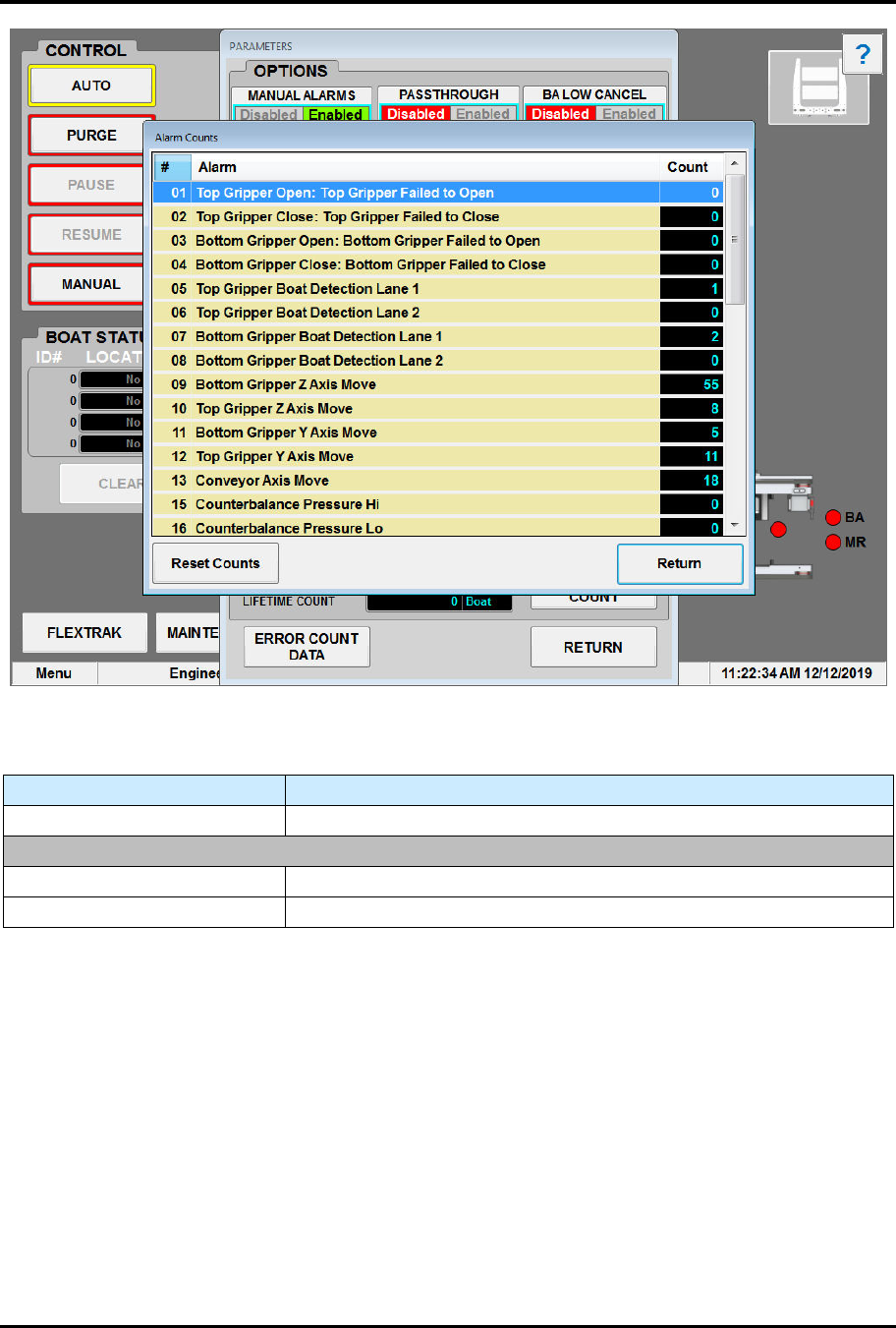

Figure 5-17 Alarm Counts Screen
Table 5-18 Alarm Counts Screen Controls and Indicators
Control Description
RESET COUNTS Touch to reset all alarm counters to zero.
ALARM (NAME) Displays the list of alarms.
(ALARM) COUNT Shows how many times the alarm has been triggered.
5.5.6 Variable Snapshot Screen
The Variable Snapshot screen (Figure 5-18) creates a snapshot of the machine state that can be sent to
Technical Support for troubleshooting. See Table 5-19 for descriptions of the Variable Snapshot screen
controls and indicators.
To access the parameters screen:
1. Touch the MAINTENANCE button on the MH Overview screen to access maintenance
commands.
„ The Maintenance Master screen opens (Figure 5-5).
2. Touch the VARIABLE SNAPSHOT button.
„ The Variable Snapshot screen opens (Figure 5-18).
FlexTRAK Series 2MB Material Handler Addendum Tour of HMI Software for the Material Handler
5-38 © 2023 Nordson Corporation

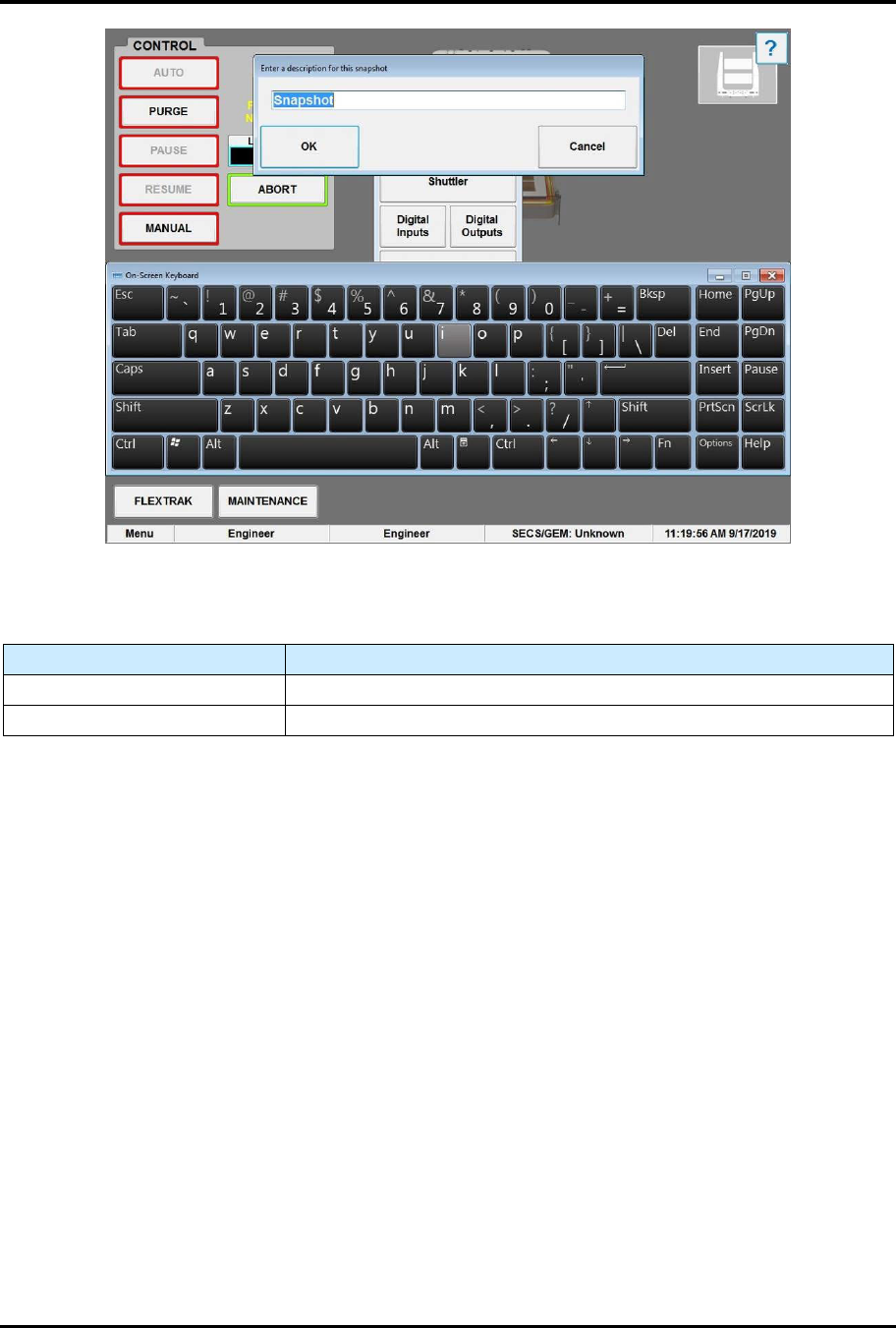

Figure 5-18 Variable Snapshot Screen
Table 5-19 Variable Snapshot Screen Controls and Indicators
Control Description
SNAPSHOT DESCRIPTION Touch to enter a description for the snapshot.
OK Touch OK to create a snapshot with the above description.
