FlexTRAK Series 2MB Mater ial Handler Adden dum Installation 3-12 © 2023 Nordson Corporation 4. Verify that an EMO button has not bee n activated (Figure 3-6). If an EMO has been activ ated, reset it by turning the bu tt…
FlexTRAK Series 2MB Material Handler Addendum Installation
© 2023 Nordson Corporation 3-11
3. Turn the main circuit breaker (Figure 3-5) to the ON (up) position.
Item Description
1 FlexTRAK-2MB Rear Access Panel
2 Main Circuit Breaker

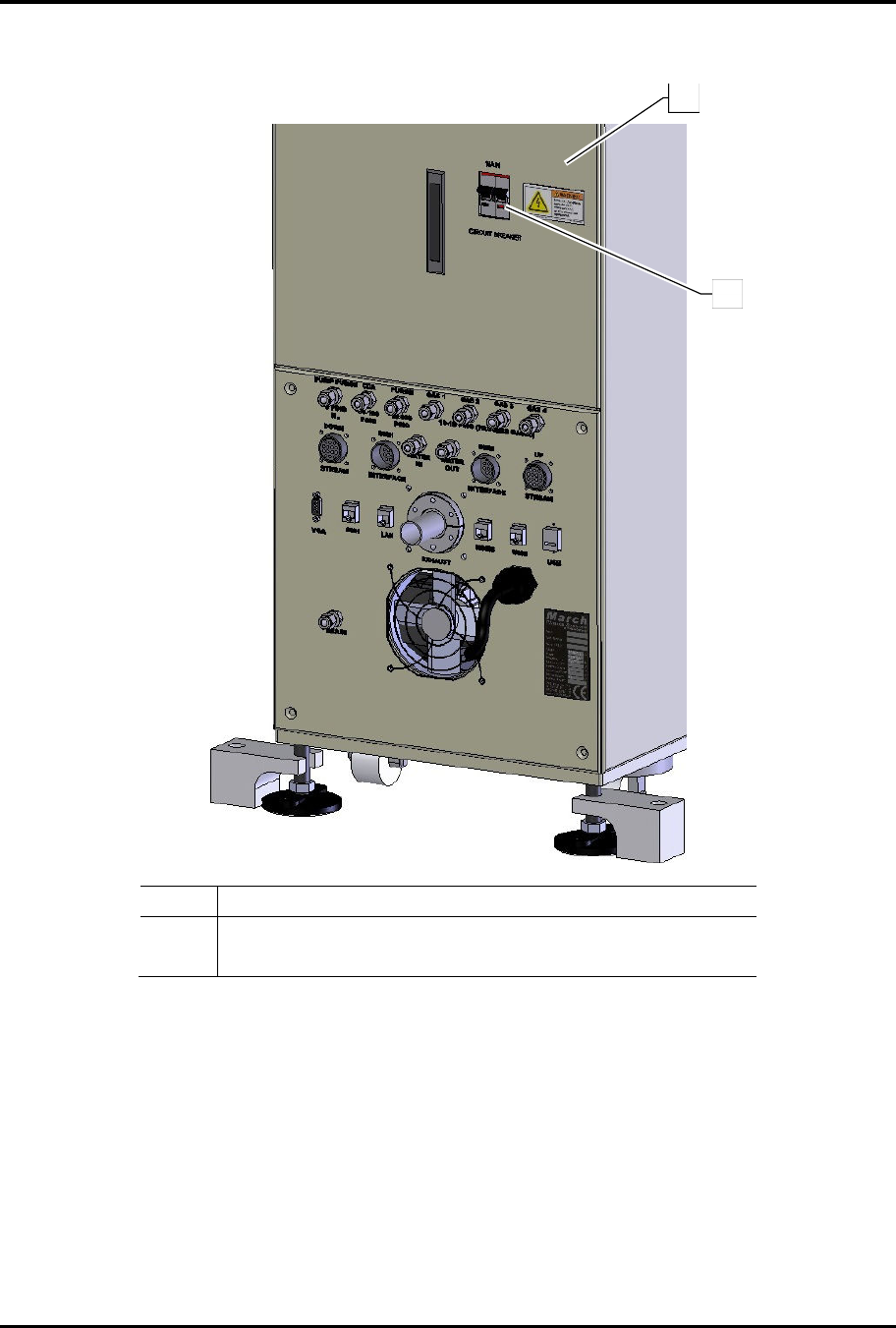

Figure 3-5 Main Circuit Breaker
1
2
FlexTRAK Series 2MB Material Handler Addendum Installation
3-12 © 2023 Nordson Corporation
4. Verify that an EMO button has not been activated (Figure 3-6). If an EMO has been
activated, reset it by turning the button in the direction of the arrows until it pops out.
5. Press the green ON button on the front panel to start the system.
„ The system will start and load the HMI software.
Item Description
1 HMI Software
2 Front EMO Button (2)
3 Green ON Button (2)
4 Rear EMO Button

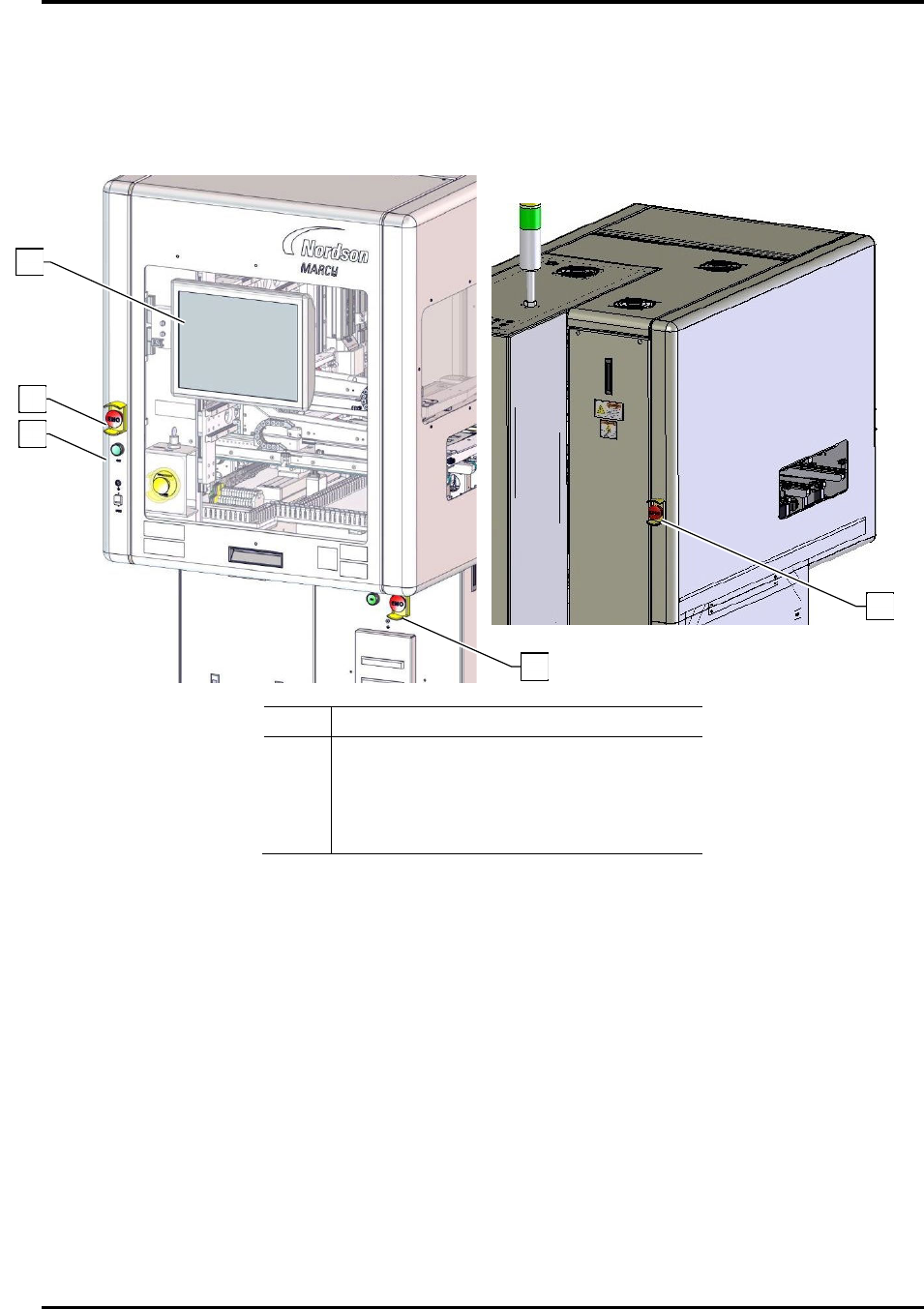

Figure 3-6 System Startup
6. Leak-check the CDA and purge gas lines as follows:
a. Close the valve on the supply line being checked.
b. Monitor the gauge inside the rear enclosure for at least one (1) minute.
c. If the pressure reading drops within one minute, there is a substantial leak in the line.
Find and repair any leaks before proceeding.
7. Open facility process gas supply valves and make sure pressure at the cylinders is 10 to
15 psi (0.7 to 1.0 bar).
2
4
3
1
4
© 2023 Nordson Corporation 4-1
4 System Components
4.1 Overview
This section provides an illustrated tour of the FlexTRAK-2MB System as well as detailed descriptions of
the following major components:
q FlexTRAK-2MB System
q Material Handler (MH)
4.2 FlexTRAK-2MB System
The FlexTRAK-2MB System is a unique in-line plasma system. It supports high-speed processing of
larger parts and process carriers (also known as boats) holding multiple products.
The system provides maximum performance and flexibility for etching, surface modification, and
cleaning of substrate material for applications such as adhesion promotion and material removal. The
system operates in both automatic and manual modes, with a multi-processing feature, which allows you
to run single or multiple recipes in one operation.
