FlexTRAK Series 2MB Mater ial Handler Adden dum System Compo nents © 2023 Nordson Corporation 4-5 Item Description Item Des cript ion 1 Terminal Block 13 Motor Control 3 Motor Contr oller Lane 2 2 Motor Controller Lane 1…
FlexTRAK Series 2MB Material Handler Addendum System Components
4-4 © 2023 Nordson Corporation
Item Description Item Description
1 AC Distribution Block 7 Z-axis MH Lower Gripper PCON Controller
2 48VDC Power Supply 8 Z-axis MH Upper Gripper PCON Controller
3 24VDC Power Supply 9 2MB Main Motherboard
4 Dual Lane Conveyor PCON Controller 10 MH PLC Assembly
5 Y-axis MH Lower Gripper PCON Controller 11 PCON Input w/SIO Terminal Assembly
6 Y-axis MH Upper Gripper PCON Controller

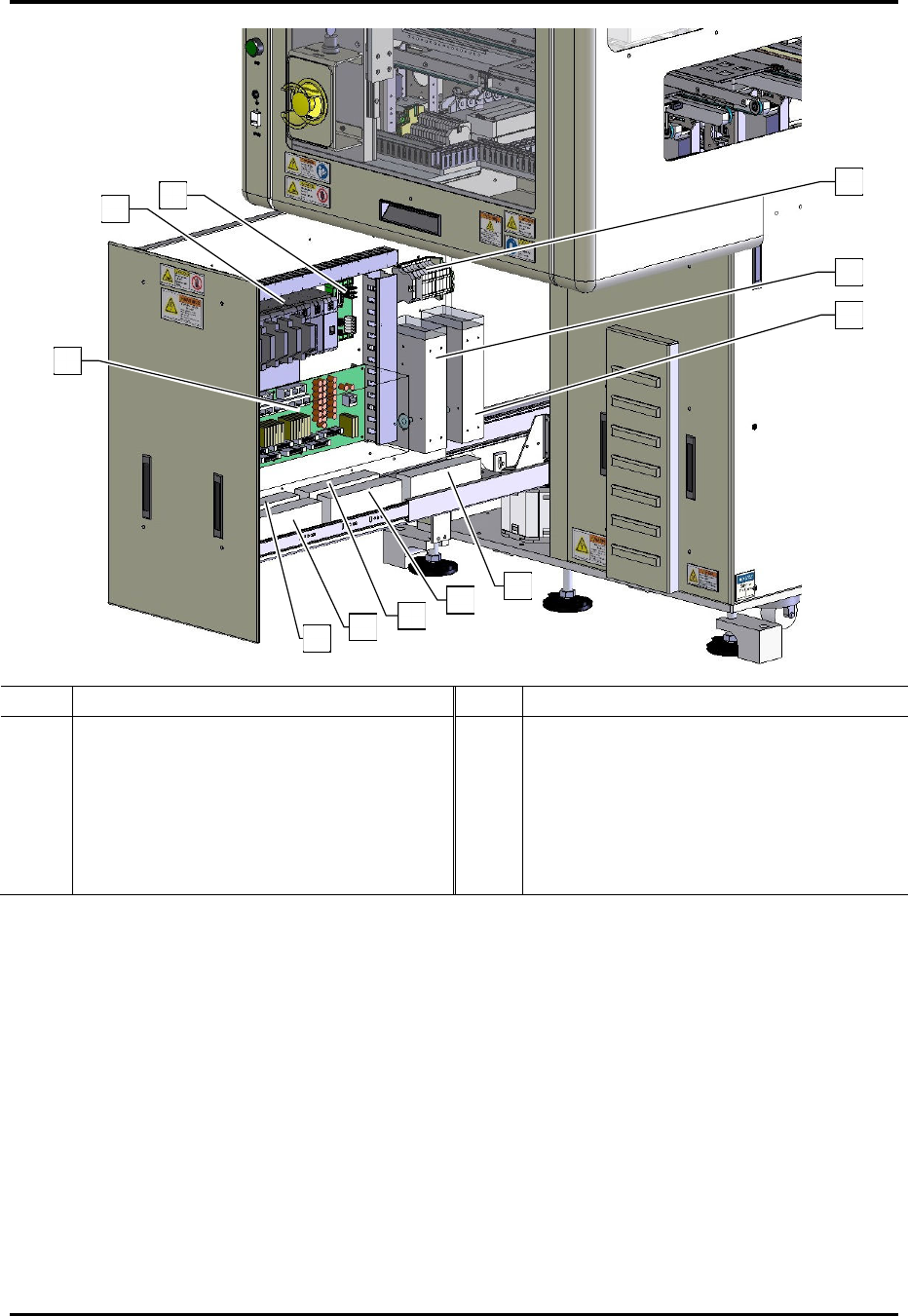

Figure 4-3 FlexTRAK-2MB Electrical Enclosure
8
7
6
5
4
1
3
2
10
9
11
FlexTRAK Series 2MB Material Handler Addendum System Components
© 2023 Nordson Corporation 4-5
Item Description Item Description
1 Terminal Block 13 Motor Control 3 Motor Controller Lane 2
2 Motor Controller Lane 1

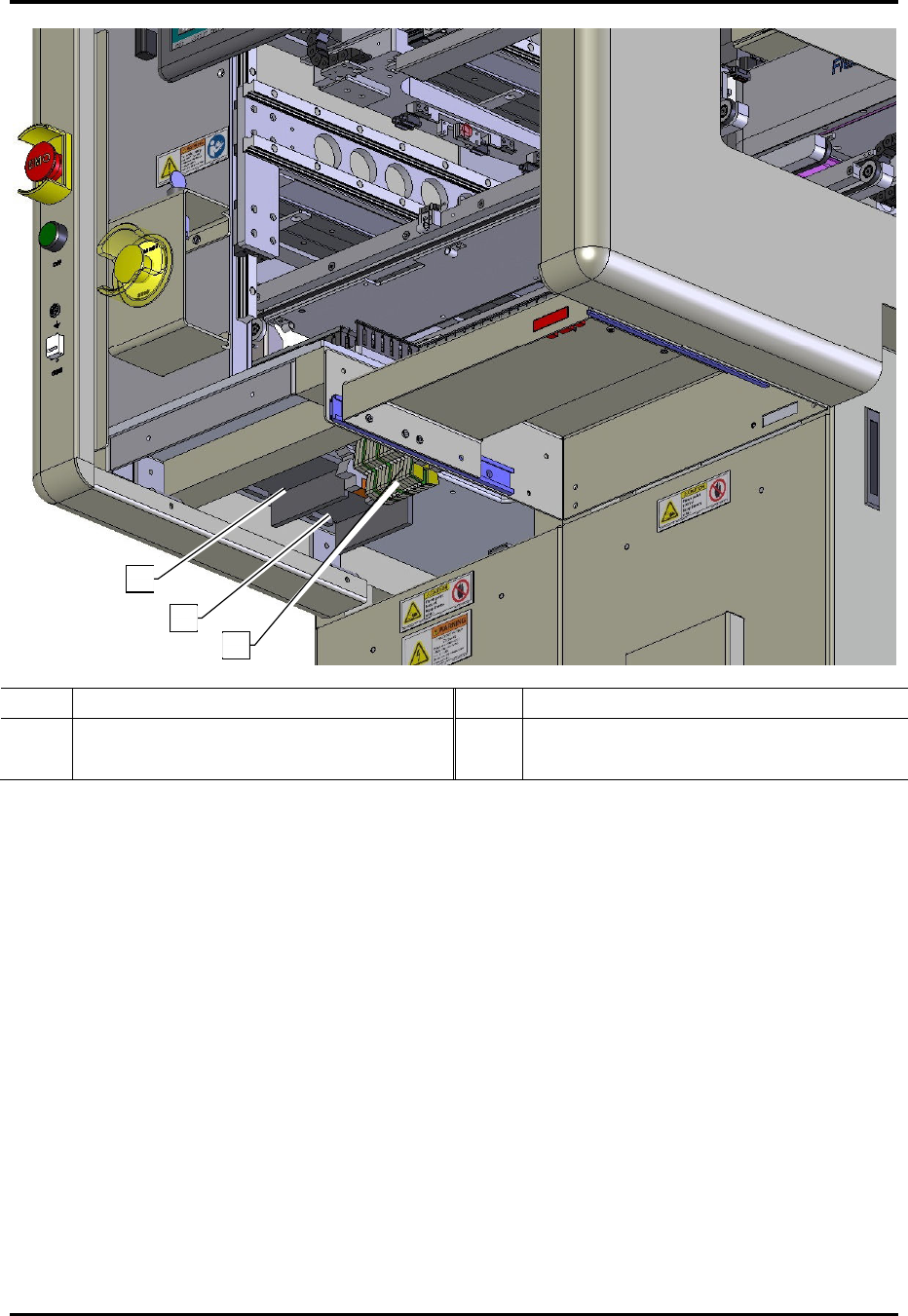

Figure 4-4 FlexTRAK-2MB Conveyor Motor Control
2
3
1
FlexTRAK Series 2MB Material Handler Addendum System Components
4-6 © 2023 Nordson Corporation
Item Description Item Description
1
MH High Pressure Limit Switch (62 psi)
6
Conveyor Lane Stop Solenoids Block
2
MH Transfer System Air Outlet
7
Conveyor Lane Stop Flow Controls
3
MH Low Pressure Limit Switch (42 psi)
8
Gripper Open/Close Solenoids Block
4
MH Gripper Exhaust Backpressure
Manifold
9
MH Gripper Exhaust Backpressure
Regulator (30 psi)
5
MH Transfer System Air Outlet Manifold
10
MH Transfer System Regulator (52 psi)

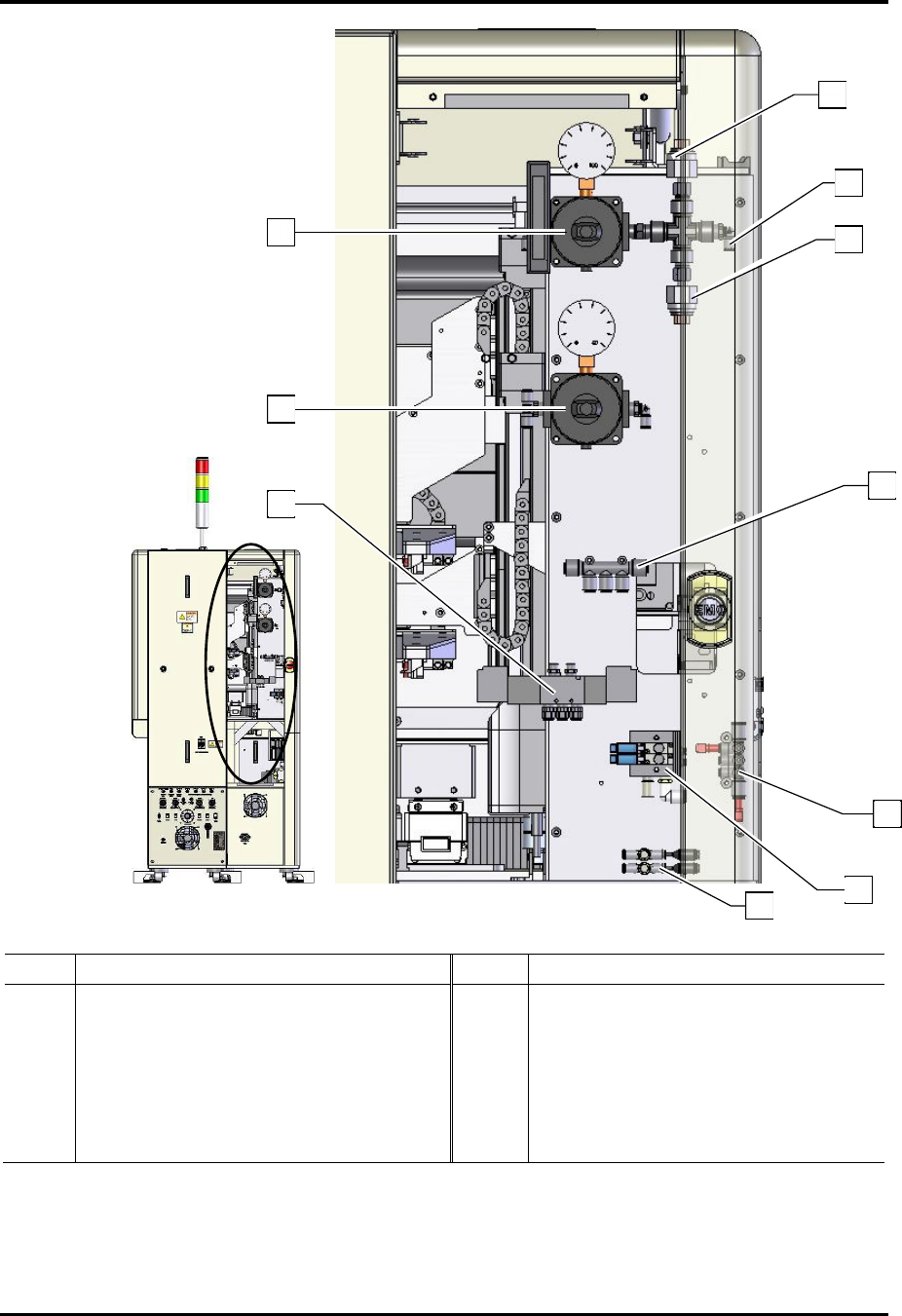

Figure 4-5 Rear Enclosure
10
1
7
6
8
9
5
3
2
4
