© 2023 Nordson Corporation 4-1
4 System Components
4.1 Overview
This section provides an illustrated tour of the FlexTRAK-2MB System as well as detailed descriptions of
the following major components:
q FlexTRAK-2MB System
q Material Handler (MH)
4.2 FlexTRAK-2MB System
The FlexTRAK-2MB System is a unique in-line plasma system. It supports high-speed processing of
larger parts and process carriers (also known as boats) holding multiple products.
The system provides maximum performance and flexibility for etching, surface modification, and
cleaning of substrate material for applications such as adhesion promotion and material removal. The
system operates in both automatic and manual modes, with a multi-processing feature, which allows you
to run single or multiple recipes in one operation.
FlexTRAK Series 2MB Material Handler Addendum System Components
4-2 © 2023 Nordson Corporation
Item Description Item Description
1 FlexTRAK-2MB Front Door 6 FlexTRAK Electrical Enclosure (Pull Out)
2 Material Handler (MH) System 7 FlexTRAK System
3 HMI Touchscreen (Swing Out) 8 FlexTRAK Chamber Side Access Panel
4 MH E-Stop Bypass Key Switch 9 Dual Lane Conveyor
5 MH Electrical Enclosure (Pull Out)

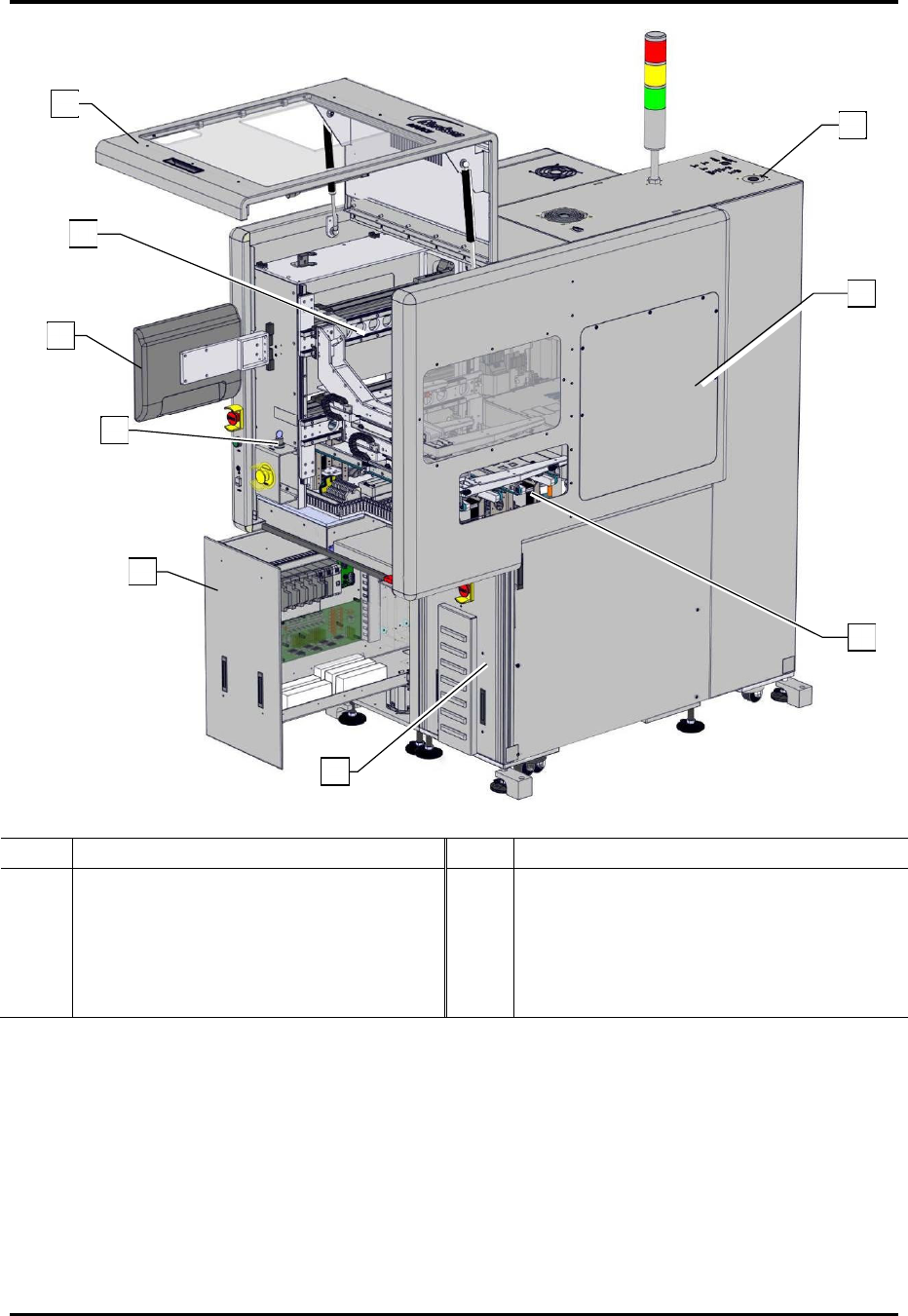

Figure 4-1 FlexTRAK-2MB Front View
1
2
9
5
6
7
8
3
4
FlexTRAK Series 2MB Material Handler Addendum System Components
© 2023 Nordson Corporation 4-3
Item Description Item Description
1 FlexTRAK System 3
FlexTRAK-2MB Rear Access Panel
(Attached with Fasteners)
2
FlexTRAK Rear Access Panel (1/4 Turn
Lock and Pull off)
4
System Facilities Panel

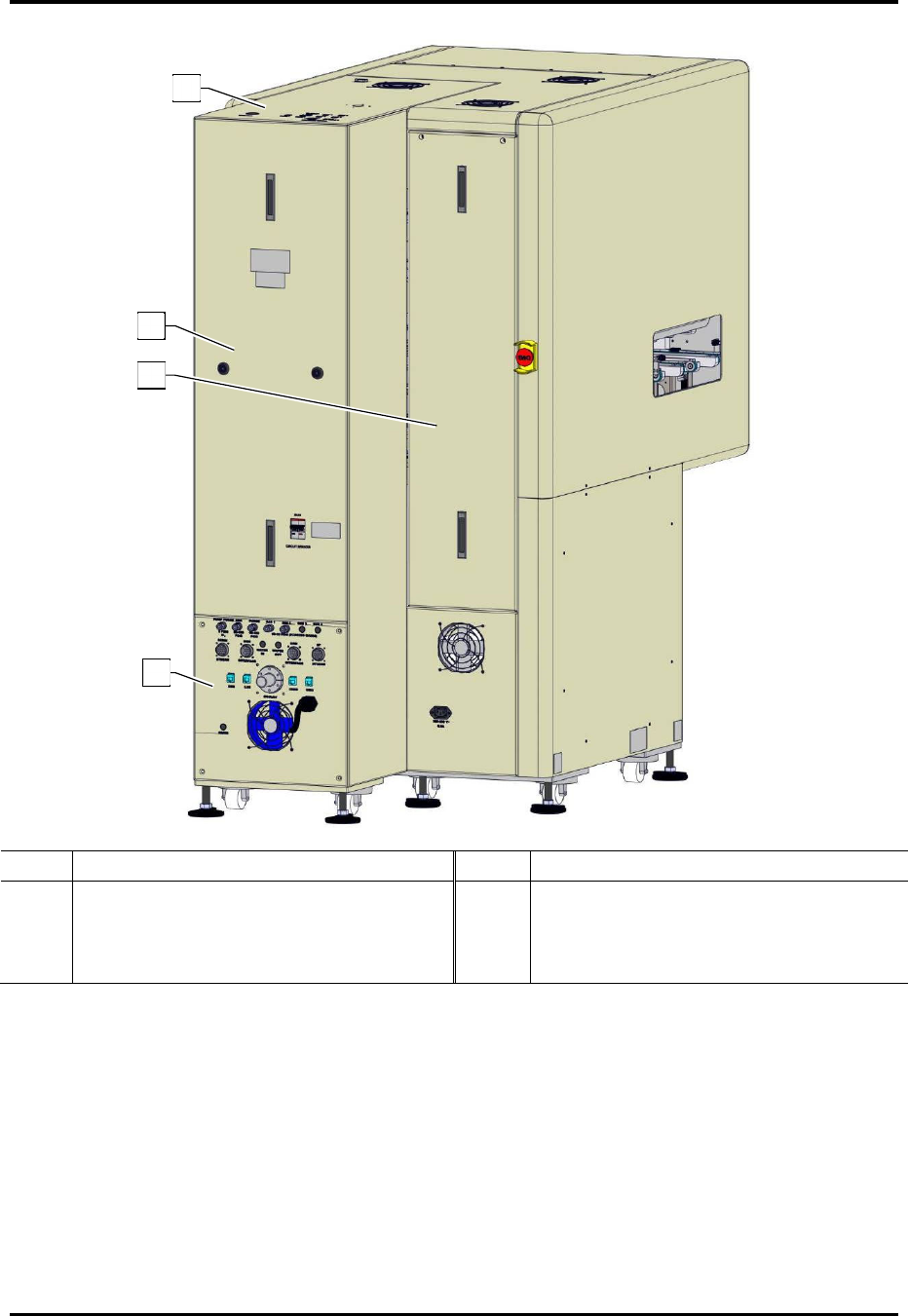

Figure 4-2 FlexTRAK-2MB Rear View
1
2
3
4
