© 2023 Nordson Corporation 6-1
6 Operations
6.1 Overview
FlexTRAK-2MB System operations can begin only after the 2MB material handler axis positions are
taught, the initial start-up procedure is performed, and the process recipes are properly programmed and
loaded by trained engineering personnel.
For more information about teaching material handler axis positions, see Section 7 Teaching Axis
Positions. For more information about recipes, refer to the FlexTRAK Installation, Operation, and
Maintenance Manual. For information on the FlexTRAK plasma module HMI screens refer to the HMI
Software User Guide.
This section covers the following basic operating information:
q
Stopping The Material Handler
q
Manual Mode
q
System Start
-
up
q
Resetting the Number of Cycles
q
Material Handler Homing Routine
q
Reinitializing System Parameters
q
Automatic (Auto) Mode
6.2 Safety First
Before operating your FlexTRAK-2MB System, see Section 2 - Safety.
WARNING! To prevent exposure to high voltages, RF energy, hot surfaces,
and moving parts, always make sure that all doors are closed and all access
panels are secured.
FlexTRAK Series 2MB Material Handler Addendum Operations
6-2 © 2023 Nordson Corporation
6.3 Stopping The Material Handler
6.3.1 E-STOP
To immediately stop all movement of the material handler, press the E-STOP button (Figure 6-1). This
method can be used during both Automatic and Manual modes.
6.3.2 Emergency Off
In an emergency, push the red EMO button on your plasma system to completely shut off power. This
method can be used during both Automatic and Manual modes.
?
NOTE Using the EMO button will completely turn off power to the plasma system. The system
will have to be restarted.
Item Description
1 EMO Button
2 E-Stop Button (EMERGENCY STOP)

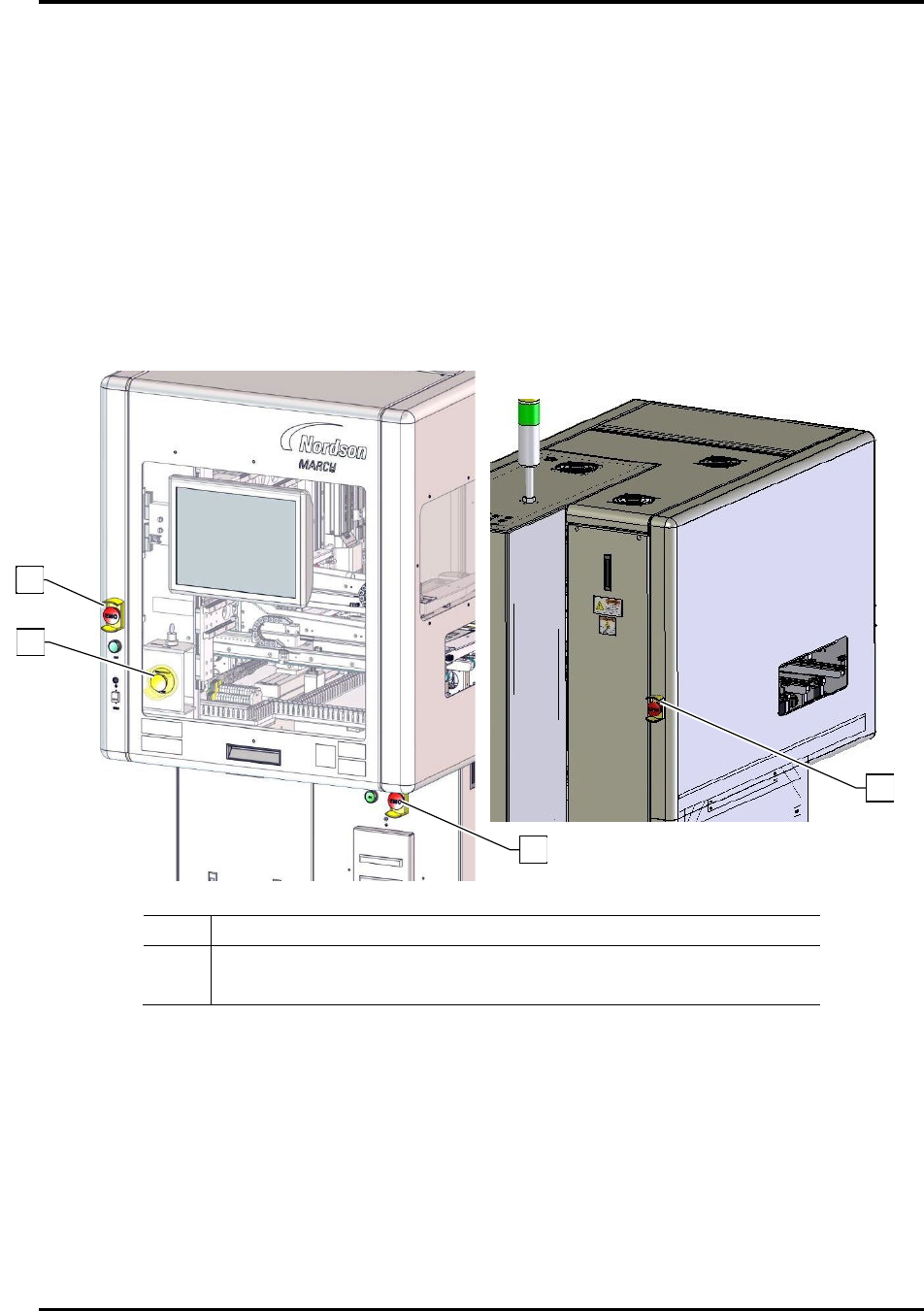

Figure 6-1 E-STOP and EMO Locations
1
1
1
2
FlexTRAK Series 2MB Material Handler Addendum Operations
© 2023 Nordson Corporation 6-3
6.4 System Start-up
?
NOTE See 3.6 Initial Startup Procedure when starting the system for the first time.
To start the system:
1. Make sure of the following:
„ Safety cover doors and all access panels are closed.
„ The purge gas, CDA, and process gases are connected and set at recommended
pressures. Verify that the lockable gas valves, if installed, are open.
„ The exhaust is connected to a suitable facility exhaust system.
„ The main circuit breaker is in the ON (up) position, indicating that power is supplied to
the machine.
2. Reset each of the three (3) EMO/OFF buttons by turning the knob clockwise until it
pops out.
3. Press the green START button (Figure 5-1) to turn on system main power.
„ When the system is on and initialized, the PC automatically boots up and runs the HMI
software. Boot-up should take about three minutes. The yellow LED on the light tower
comes on.
„ The plasma system starts up in idle mode and the FlexTRAK-2MB MH Overview
screen (Figure 6-3) displays. Material handler operations are controlled through this
screen. Figure 5-4 describes the MH Overview screen menu in detail.
Item Description
1 EMO Button
2 Start Button
3 Main Circuit Breaker
Figure 6-2 System Startup
1
2
3
