FlexTRAK Series 2MB Material Handler Addendum System Components
4-10 © 2023 Nordson Corporation
Table 4-1 Fully Adjustable Dual-Lane Conveyor Components
Item Name Description
1 Lane 1 Lane position is fixed.
2 Lane 2
Lane position is adjustable along the Y-axis. The width of the lane is teachable,
see 7.1 Teaching MH Axis Positions.
3 Stepper Motor
The stepper motors supply power to the belt assemblies. There are two
stepper motors per lane. Both motors are synchronized to operate together and
drive the carriers down the length of the conveyor.
4 Belts
High temperature belts move the parts through the system. There are two belts
per lane, see 4.3.1.7 High Temperature Belts.
5 Carrier Stops
The pneumatic carrier stop prevents over travel of the part. There is one carrier
stop per lane, see 4.3.1.6 Carrier Stops.
6
Lane Position
Sensors
The lane position sensors detect parts throughout the length of the conveyor.
The number of sensors per lane can vary, depending upon the size of the
process carrier and ensure traceability of the carrier, see 4.3.1.4 Lane Position
Sensors.
7
Separator
Actuator
The separator actuator controls the position of Lane 2. There are two teachable
positions (grip and conveyance). Home position is built into the actuator, see
4.3.1.5 Separator Actuator.
FlexTRAK Series 2MB Material Handler Addendum System Components
© 2023 Nordson Corporation 4-11
4.3.1.2 Adjustable Single-Unit Dual-Lane Conveyor
In this configuration, Lanes 1 and 2 are a single fixed assembly, aligned, leveled, and secured at the
factory (Figure 4-9).
The two-lane assembly is controlled by a linear actuator, and its positions are taught using the
FlexTRAK-2MB software, see Section 7 - Teaching Axis Positions.

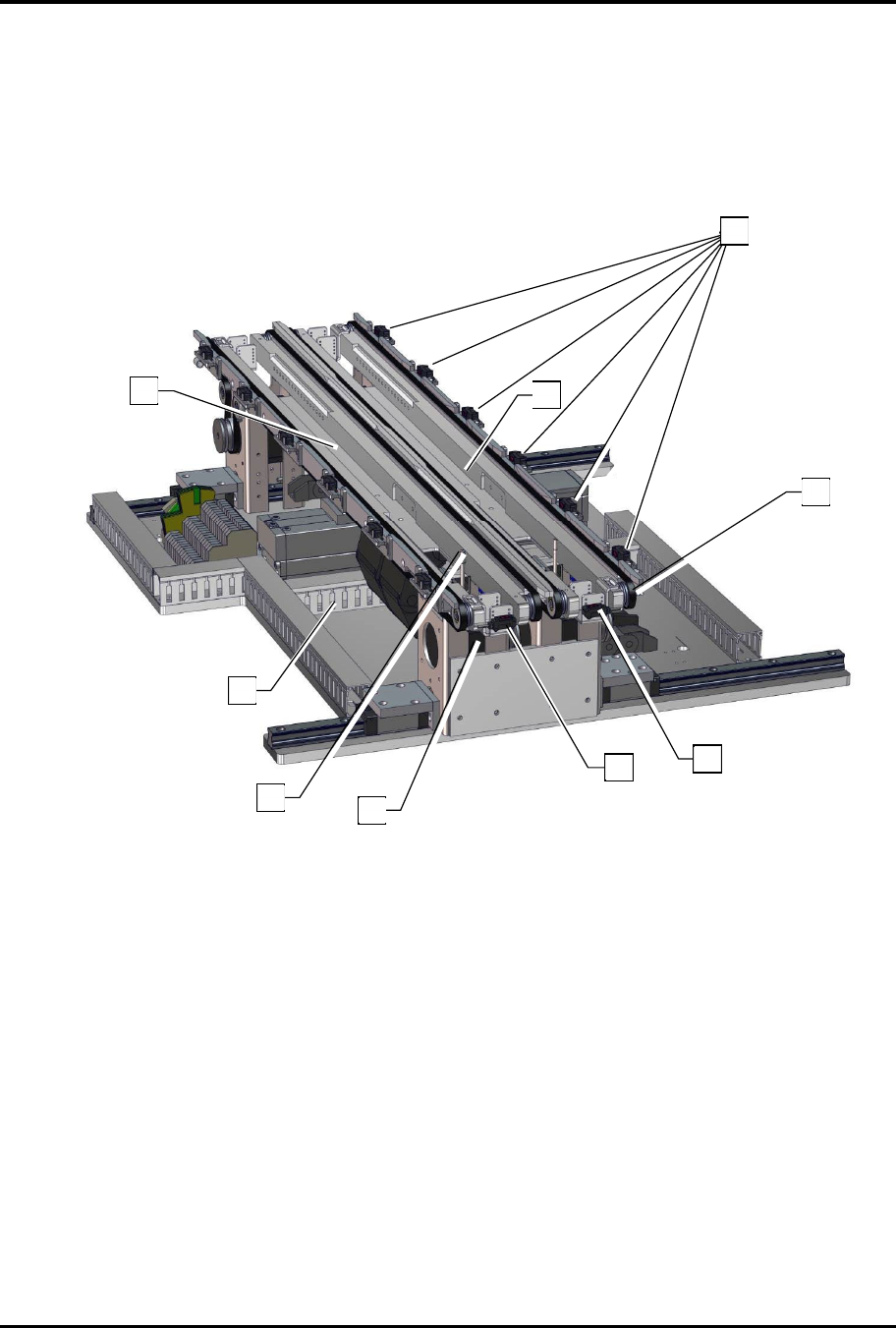

Figure 4-9 Adjustable Single-Unit Dual-Lane Conveyor
1
2
3
5
6
7
4
4
4
FlexTRAK Series 2MB Material Handler Addendum System Components
4-12 © 2023 Nordson Corporation
Table 4-2 Adjustable Single-Unit Dual-Lane Conveyor Components (Front View)
Item Name Description
1 Lane 1
Fixed position relative to Lane 2. Lane position is adjustable along
the Y-axis, see 4.3.1.3 Fixed Position Dual-Lane Conveyor.
2 Lane 2
Fixed position relative to Lane 1. Lane position is adjustable along
the Y-axis, see 4.3.1.3 Fixed Position Dual-Lane Conveyor.
3 Stepper Motor
The stepper motors supply power to the belt assemblies. There are
two stepper motors per lane. Both motors are synchronized to
operate together and drive the carriers down the length of the
conveyor.
4
Lane Position
Sensors
The lane position sensors detect parts throughout the length of the
conveyor. Five sensors per lane ensure traceability of the carrier, see
4.3.1.4 Lane Position Sensors.
5
Separator
Actuator
The separator actuator controls the position of the entire dual lane
assembly. There are three teachable positions: Lane 1 conveyance,
Lane 2 conveyance, and grip. Home position is built into the actuator,
see 4.3.1.5 Separator Actuator.
6 Belts
High temperature belts move the parts through the system. There are
two belts per lane, see 4.3.1.7 High Temperature Belts.
7 Carrier Stops
The pneumatic carrier stop prevents over travel of the part. There is
one carrier stop per lane, see 4.3.1.6 Carrier Stops.
