FlexTRAK Series 2MB Material Handler Addendum Parts Replacement B-8 © 2023 Nordson C orporation B.7.3 Upper Gripper Drive Assembly Item Des cription 2 LINEAR BEARING, 15MM 17 PH OTOMICROSNSR, DA RK ON, L-SHAPE 2 ACTUATOR…
FlexTRAK Series 2MB Material Handler Addendum Parts Replacement
© 2023 Nordson Corporation B-7
B.7.2 2MB Shuttler System
Item
D
escription
Item
Description
13 GAUGE,2IN DIAL1/4NPT,1-100PSI 16 VLV, 5PRT, 3POS, CLSD CNTR, 24VDC
2 SWITCH, PRESSURE, 62PSI, INCR 2 VALVE, SOLENOID, 3PORT, 24VDC
14 REGULTR, DIALSET, 160PSI, 1/4"NPT 15 GAUGE, 2IN DIAL1/4NPT, 1-60
2 SWITCH, PRESSURE, 42PSI, DECR
Figure B-4 2MB Shuttler System
1
3
1
4
2
1
5
1
4
1
6
2
2
FlexTRAK Series 2MB Material Handler Addendum Parts Replacement
B-8 © 2023 Nordson Corporation
B.7.3 Upper Gripper Drive Assembly
Item
Des
cription
2 LINEAR BEARING, 15MM
17 PHOTOMICROSNSR, DARK ON, L-SHAPE
2 ACTUATOR, 500MM RCP2-SA7C
2 ACTUATOR, 150MM RCP2-SA6C
Figure B-5 Upper Gripper Drive Assembly
2
2
1
7
2
2
b
2
FlexTRAK Series 2MB Material Handler Addendum Parts Replacement
© 2023 Nordson Corporation B-9
B.7.4 Lower Gripper Drive Assembly
Item
Description
2 LINEAR BEARING, 15MM
17 PHOTOMICROSNSR, DARK ON, L-SHAPE
2 ACTUATOR,150MM RCP2-SA6C
2 ACTUATOR,500MM RCP2-SA7C
2 CYL,1-1/16 BORE X 1.75"STR

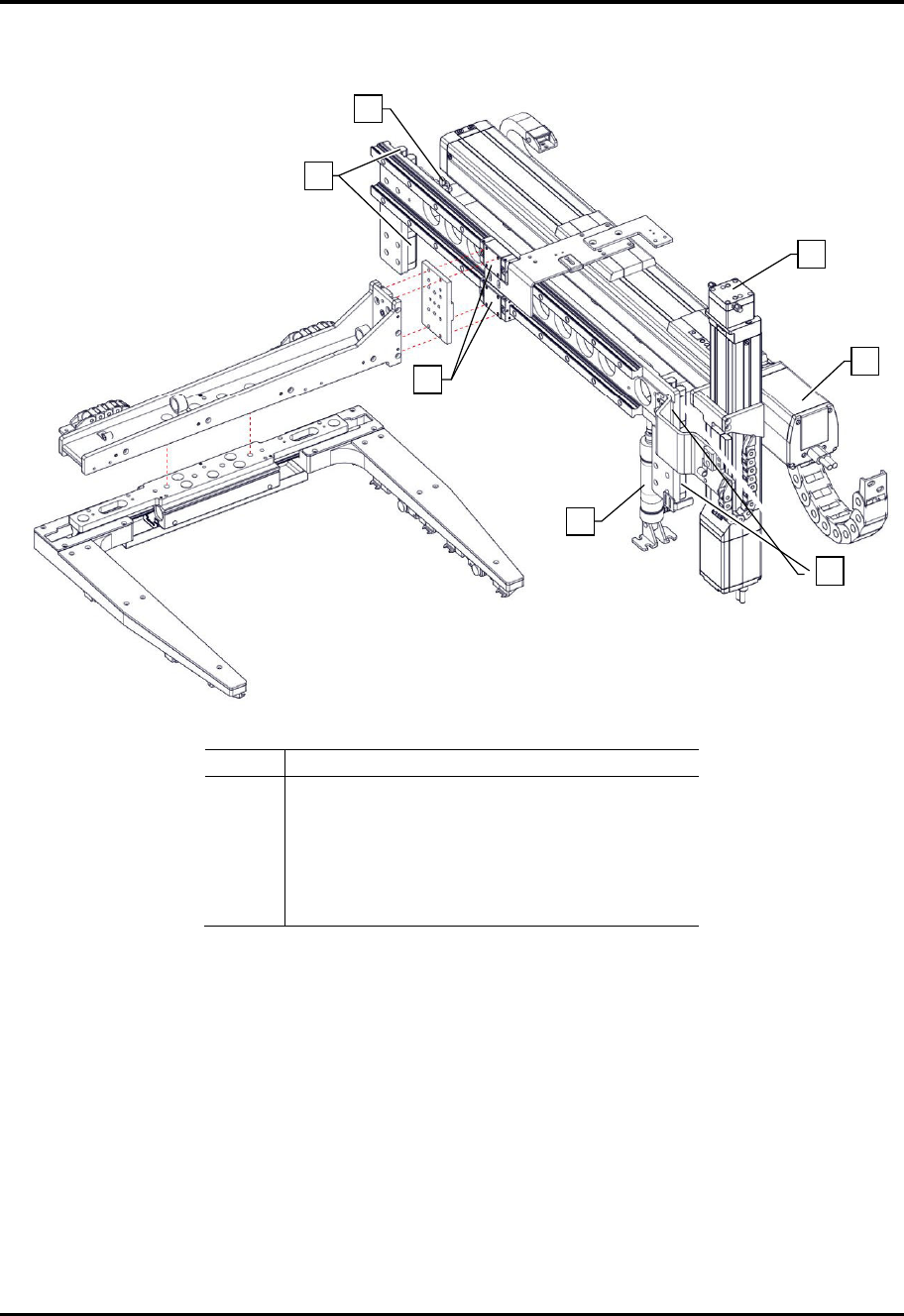

Figure B-6 Lower Gripper Drive Assembly
1
7
2
2
2
2
2
2
