FlexTRAK Series 2MB Material Handler Addendum Parts Replacement
© 2023 Nordson Corporation B-3
B.5 Unpacking and Inspecting Replacement Parts
Replacement parts are shipped to distributor or customer facilities in individual shipping
cartons. Review the packing slip to ensure that the correct parts were received.
Contact Technical Support if any discrepancies are discovered.
Before unpacking your spare parts, visually inspect the carton for damage. If
applicable, check the shock sensors and the tip sensors for indications of improper
shipping and handling. Inform the freight carrier of any damage.
WARNING! Parts replacement should only be performed by a trained
service technician. Nordson assumes no liability for personal injury or
property damage that may occur as a result of spare parts being
replaced by a non-certified technician.
B.6 Spare Parts List
This section contains a list of item numbers corresponding to the part description. Review the
spare parts kits Excel file for item number referencing the part number when ordering
replacement parts for the FlexTRAK 2MB Material Handler. Contact Technical Support for
questions.
FlexTRAK Series 2MB Material Handler Addendum Parts Replacement
B-4 © 2023 Nordson Corporation
B.7 Illustrated Parts
Item
Description
3
INTERLOCK, CODED SWITCH,
10MCABLE
4 SPRING, GAS, 40LBS X 5.4 STR
6 SWITCH, KEY, OPERATOR, 2POS
9 SWITCH, ESTOP, 2NC, TWST, YLW

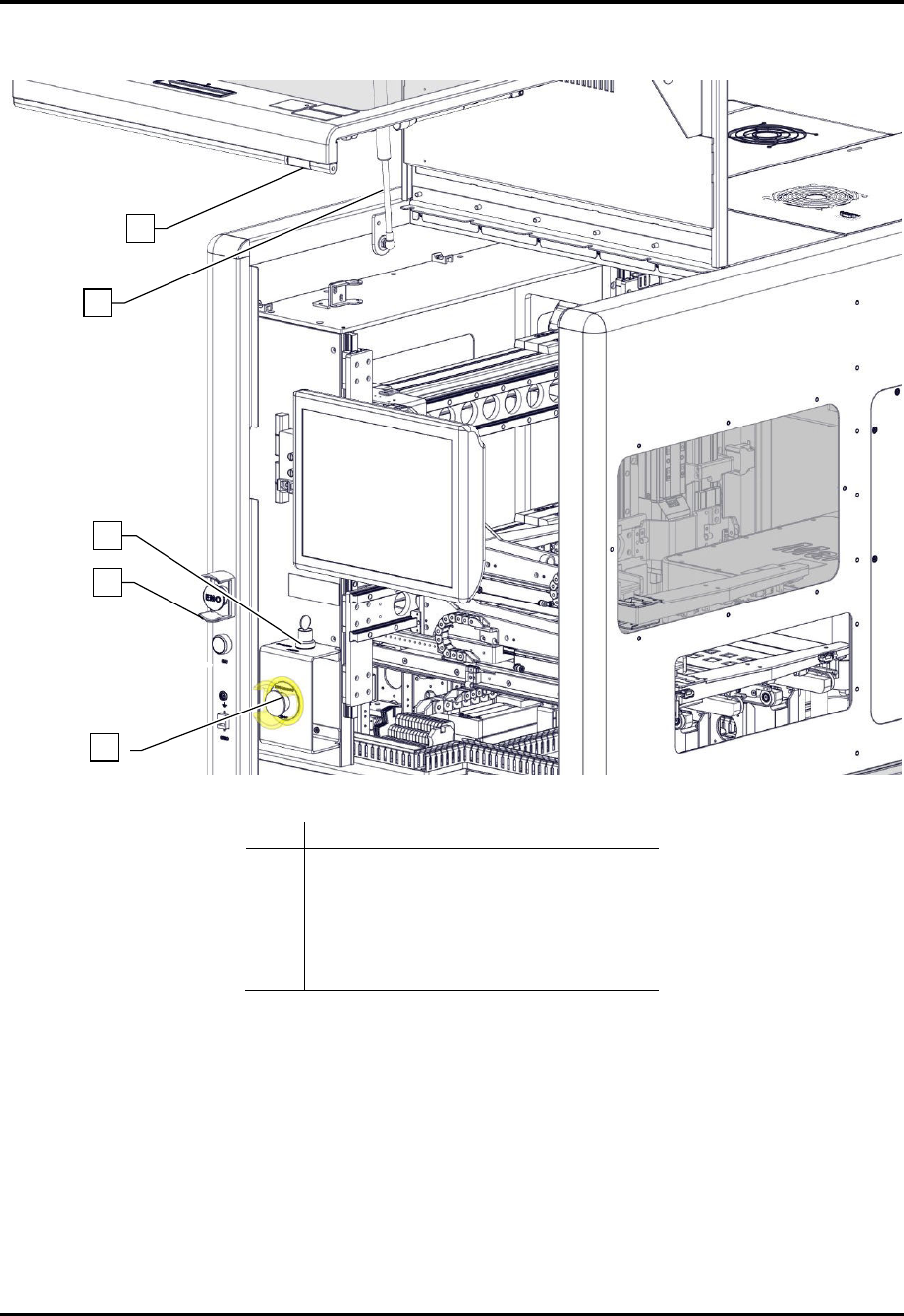

Figure B-1 FlexTRAK-2MB Front
4
7
6
3
9
FlexTRAK Series 2MB Material Handler Addendum Parts Replacement
© 2023 Nordson Corporation B-5
B.7.1 FlexTRAK-2MB Electrical System
Item
Description
Item
Description
2
FRU, POWER SUPPLY, 48VDC,
320W (PS12)
2
ETHERNET MODULE, DL205,
PROGRAMMED
2
FRU, POWER SUPPLY, 24VDC,
320W (PS11)
2 DIGITAL INPUT MODULE, 32 POINT
2 CONTROLLER, PCON-C-42 2 MODULE, STEPPER CARD, H2-CTR10
2
CONTROLR, POSIT, 56FRAME,
NPN, 24V
12 SIO TERMINAL BLOCK
10 PWA, INTERFACE, 2MB
Figure B-2 2MB MH Electrical Cabinet
1
2
1
0
2
2
2
2
2
2
2
2
2
2
