FlexTRAK Series 2MB Mater ial Handler Adden dum Tour of HMI Softw are for the Material Handler © 2023 Nordson Corporation 5-31 Control Description LANE 2 BA Indicates the status of the Lane 2 BA se nsor. A red light mean…

FlexTRAK Series 2MB Material Handler Addendum Tour of HMI Software for the Material Handler

Control Description

ALL AXIS MANUAL

Indicates the status of the All Axis Manual sensor. A red light means

the I/O point is off (open/disconnected), and a green light means that

it is on (closed/connected).

ALL AXIS ALARM RESET

Indicates the status of the All Axis Alarm Reset sensor. A red light

means the I/O point is off (open/disconnected), and a green light

means that it is on (closed/connected).

ALL AXIS SERVO ON

Indicates the status of the All Axis Servo On sensor. A red light

means the I/O point is off (open/disconnected), and a green light

means that it is on (closed/connected).

SLOT 5 BO-B7

LANE 1 STOPPER UP

Indicates the status of the Lane 1 Stopper Up sensor. A red light

means the I/O point is off (open/disconnected), and a green light

means that it is on (closed/connected).

LANE 2 STOPPER UP

Indicates the status of the Lane 2 Stopper Up sensor. A red light

means the I/O point is off (open/disconnected), and a green light

means that it is on (closed/connected).

GRIPPER TOP CLOSE

Indicates the status of the Gripper Top Close sensor. A red light

means the I/O point is off (open/disconnected), and a green light

means that it is on (closed/connected).

GRIPPER TOP OPEN

Indicates the status of the Gripper Top Open sensor. A red light

means the I/O point is off (open/disconnected), and a green light

means that it is on (closed/connected).

GRIPPER BOT CLOSE

Indicates the status of the Gripper Bottom Close sensor. A red light

means the I/O point is off (open/disconnected), and a green light

means that it is on (closed/connected).

GRIPPER BOT OPEN

Indicates the status of the Gripper Bottom Open sensor. A red light

means the I/O point is off (open/disconnected), and a green light

means that it is on (closed/connected).

FLEXTRAK MR

Indicates the status of the FlexTRAK MR sensor. A red light means

the I/O point is off (open/disconnected), and a green light means that

it is on (closed/connected).

FLEXTRAK BA

Indicates the status of the FlexTRAK BA sensor. A red light means

the I/O point is off (open/disconnected), and a green light means that

it is on (closed/connected).

SLOT 5 CO-C7

FLEXTRAK PUSH CLR

Indicates the status of the FlexTRAK Pusher Clear sensor. A red light

means the I/O point is off (open/disconnected), and a green light

means that it is on (closed/connected).

LANE 1 MR

Indicates the status of the Lane 1 MR sensor. A red light means the

I/O point is off (open/disconnected), and a green light means that it is

on (closed/connected).

LANE 1 BA

Indicates the status of the Lane 1 BA sensor. A red light means the

I/O point is off (open/disconnected), and a green light means that it is

on (closed/connected).

LANE 2 MR

Indicates the status of the Lane 2 MR sensor. A red light means the

I/O point is off (open/disconnected), and a green light means that it is

on (closed/connected).

FlexTRAK Series 2MB Material Handler Addendum Tour of HMI Software for the Material Handler

Control Description

LANE 2 BA

Indicates the status of the Lane 2 BA sensor. A red light means the

I/O point is off (open/disconnected), and a green light means that it is

on (closed/connected).

E STOP

Indicates the status of the E-Stop sensor. A red light means the I/O

point is off (open/disconnected), and a green light means that it is on

(closed/connected).

NOT USED This signal is unused.

5.5.4 Conveyor Status Screen

The Conveyor Status screen (Figure 5-14) displays all operational aspects of the conveyor system. See

Table 5-16 for descriptions of the Conveyor Status screen controls and indicators. See Table 5-16 for

descriptions of the Conveyor Status screen controls and indicators.

To access the input status screen:

1. Touch the MAINTENANCE button on the MH Overview screen to access maintenance

commands.

„ The Maintenance Master screen opens (Figure 5-5).

2. Touch the CONVEYOR button.

„ The Conveyor Status screen opens (Figure 5-14).

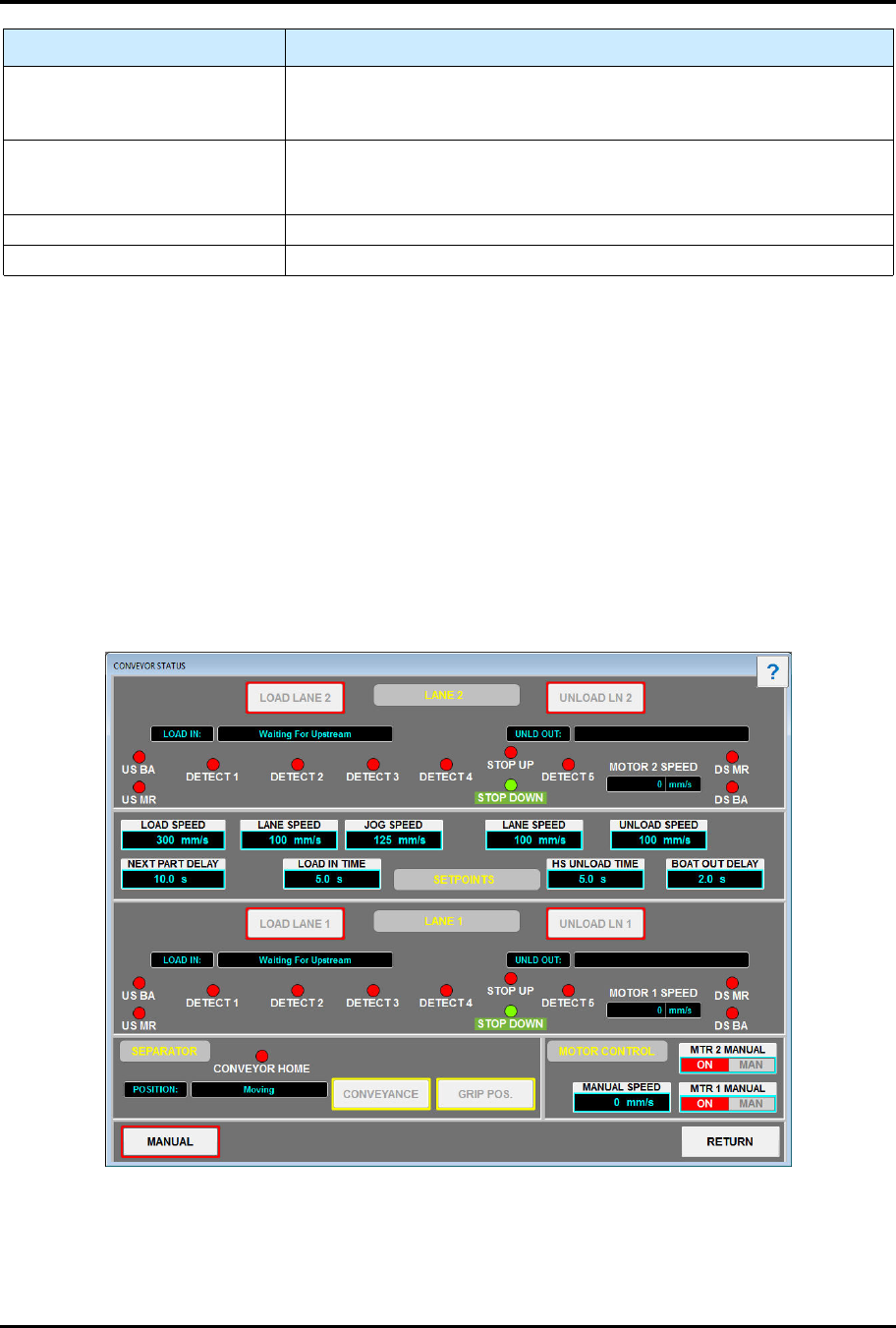

Figure 5-14 Conveyor Status Screen

FlexTRAK Series 2MB Material Handler Addendum Tour of HMI Software for the Material Handler

Table 5-16 Conveyor Status Screen Controls and Indicators

Control Description

MANUAL Touch to switch to Manual mode.

LANE 2

LOAD LANE 2 Touch to load Lane 2.

LOAD IN: Displays the load in status.

UNLOAD LANE 2 Touch to unload Lane 2.

UNLD OUT: Displays the unload out status.

US BA Displays the status of the upstream BA sensor.

US MR Displays the status of the upstream MR sensor.

DETECT 1 Displays the status of the Detect 1 sensor.

DETECT 2 Displays the status of the Detect 2 sensor.

DETECT 3 Displays the status of the Detect 3 sensor.

DETECT 4 Displays the status of the Detect 4 sensor.

STOP UP Displays the status of the Stop Up sensor.

STOP DN Displays the status of the Stop Down sensor.

DETECT 5 Displays the status of the Detect 5 sensor.

MOTOR 2 SPEED Displays the speed of Motor 2 (mm/sec).

DS MR Displays the status of the downstream MR.

DS BA Displays the status of the downstream BA.

SETPOINTS

LOAD SPEED

Displays the Load Speed setpoint.

Touch to edit the Load Speed setpoint.

LANE SPEED

Displays the Lane Speed setpoint.

Touch to edit the Lane Speed setpoint.

JOG SPEED

Displays the Jog Speed setpoint.

Touch to edit the Jog Speed setpoint.

LANE SPEED

Displays the Lane Speed setpoint.

Touch to edit the Lane Speed setpoint.

UNLOAD SPEED

Displays the Unload Speed setpoint.

Touch to edit the Unload Speed setpoint.

NEXT PART DELAY

Displays the Next Part Delay setpoint.

Touch to edit the Next Part Delay setpoint.

LOAD IN TIME

Displays the Load In setpoint.

Touch to edit the Load In setpoint.

HS UNLOAD TIME

Displays the Hs unload setpoint.

Touch to edit the Hs Unload setpoint.

BOAT OUT DELAY

Displays the Boat Out Delay setpoint.

Touch to edit the Boat Out Delay setpoint.

LANE 1

LOAD LANE 1 Touch to load Lane 1.

LOAD IN: Displays the status of the load in sensor.

UNLOAD LANE 1 Touch to unload Lane 1.

UNLD OUT: Displays the status of the unload out sensor.
