S2-9XXX Series Dispensing System IOM Manual Introduction
© 2023 Nordson Corporation 1-9
1.9 System Illustrations
The figures in this section show views and features of the dispensing system. Callouts locate major
components, options, and switches. The numbers associated with the descriptions correspond to the
callout numbers in the illustration. Detailed operating instructions for some of these features are
addressed in other sections of this manual. System features are shown in Figure 1-3 through Figure 1-17.
1.9.1 Front View
Figure 1-1A S2-9XXX
1
3
5
4
2
S2-9XXX Series Dispensing System IOM Manual Introduction
1-10 © 2023 Nordson Corporation
Figure 1-2B S2-9XXX with Optional Pre- and Post-Queue Stations
Item
Name
Description
1 Light Beacon
The Light Beacon is a device that displays system status and can warn
the operator when fault conditions exist.
2 Dispensing Area See 1.11.2 Dispensing Area.
3 Front Panel See 1.11.5 Front Panel.
4 Computer
The dispensing system features a laptop computer which runs the
Fluidmove dispensing software.
5 Exhaust Vent
The Ventilation Exhaust System works in conjunction with the facility
exhaust system to remove excess heat, fumes, or odors.
6 Pre-Queue Station
The optional Pre-Queue Station can be added for higher throughput or
as a buffer station for either single or dual lane configurations. In
addition, the dispensing system can be configured with pre-dispense
heat.
7 Post-Queue Station
The optional Post-Queue Station can be added for higher throughput
or as a buffer station for either single or dual lane configurations. In
addition, the dispensing system can be configured with post-dispense
heat.
Figure 1-3 S2-9XXX Front View
6
7
S2-9XXX Series Dispensing System IOM Manual Introduction
© 2023 Nordson Corporation 1-11
Item Name Description

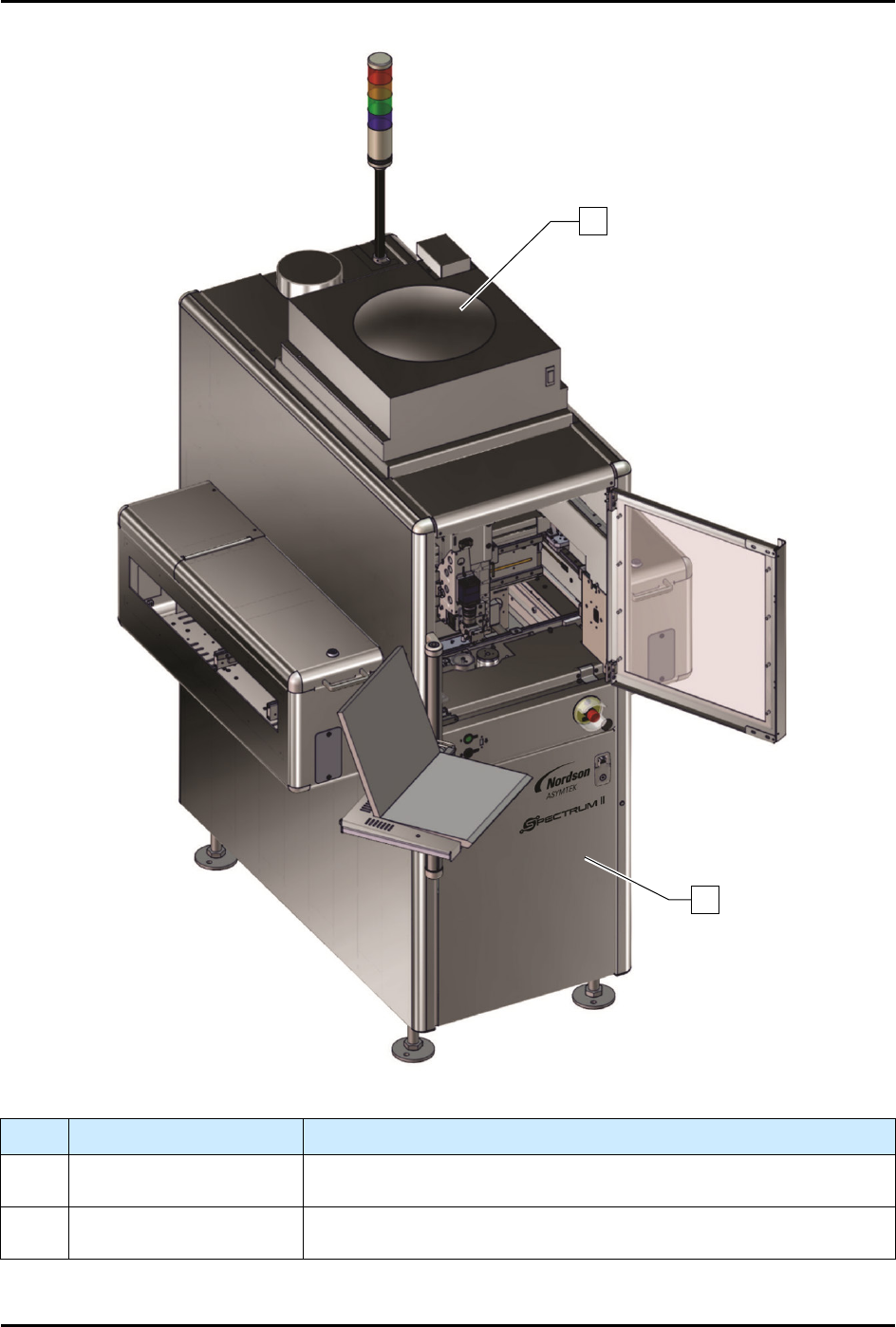

1 ULPA Filter
The Ultra Low Particulate Air (ULPA) Filter provides a downward
particle-free air column within the dispense area.
2 Enclosure
The S2-9XXC Cleanroom system is equipped with a stainless-steel
enclosure.
Figure 1-4 S2-9XXC Cleanroom Configuration with Pre- and Post-Queue Stations
1
2
