S2-9XXX Series Dispensing System IOM Manual Installation
© 2023 Nordson Corporation 3-7
5. Place the box level along the Y-axis linear guide (Figure 3-6).
6. Observe the position of the bubble within the level’s window.
The bubble should be centered, indicating dispensing system is level from
front-to-back.

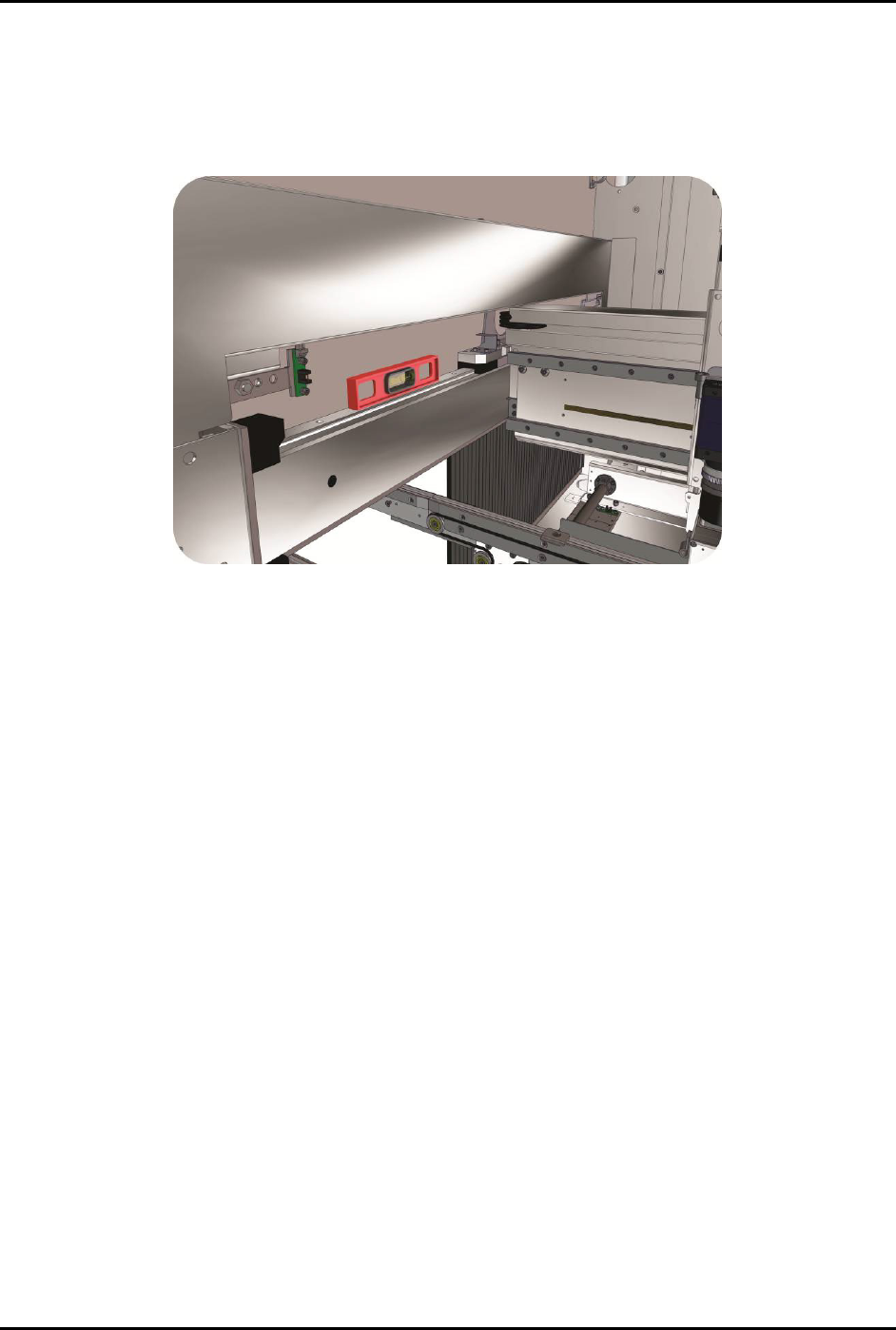

Figure 3-6 Leveling the Y-Axis
7. If necessary, adjust the levelers (Figure 3-2) of the dispensing system as follows:
a. Loosen the 1 1/2-inch lock nut on the leveler.
b. Turn the 1 1/2-inch post nut in the desired direction until the level’s bubble is centered,
indicating that the system is level from front-to-back.
Turning the post nut clockwise raises the dispensing system. Turning the post nut
counterclockwise lowers the dispensing system.
c. Tighten the 1 1/2-inch lock nut on the leveler.
8. Check the system for stability by putting your hands on top of the dispensing system in
one corner and pressing down. If one leveler is lower or higher than the others, the
dispensing system will rock back and forth. Adjust the levelers so that they are all bearing
the weight equally.
9. Re-level the dispensing system from side-to-side and from front-to-back, if necessary.
S2-9XXX Series Dispensing System IOM Manual Installation
3-8 © 2023 Nordson Corporation
3.8 Setting Up the Service Station
The service station consists of both the scale station and purge station. The scale is standard on
S2-9XXP Dispensing Systems and an option on the S2-9XXX Dispensing Systems.
To setup the service station:
1. Perform a service shutdown, see 2.14 Service Shutdown.
2. Open the dispensing area door.
3. Place the scale station cover, scale station cup, pedestal, and breeze shield on the scale
station (Figure 3-7).
Item
Description
1
Scale Station Cover
2
Scale Station Cup
3
Pedestal
4
Breeze Shield
Figure 3-7 Setting up the Scale Station
3
4
2
1
S2-9XXX Series Dispensing System IOM Manual Installation
© 2023 Nordson Corporation 3-9
4. Place the purge station cup inside of the purge station (Figure 3-8).
5. Replace the purge station cover.
Item
Description
1
Purge Station Cover
2
Purge Station Cup
3
Purge Station
Figure 3-8 Purge Station
1
2
3
