S2-9 XXX Se ri es Dispensing Sys te m IOM Man ual Specifications © 2023 Nordson C orpor ation 9-7 9.5.2 S2 - 9XXC NOMINAL PASSLINE HEI GHT (M M) PASSL INE RAN GE FOOT ( under mac hine clearance) MIN 913 66 NOMINAL (SM EM…
S2-9XXX Series Dispensing System IOM Manual Specifications
9-6 © 2023 Nordson Corporation

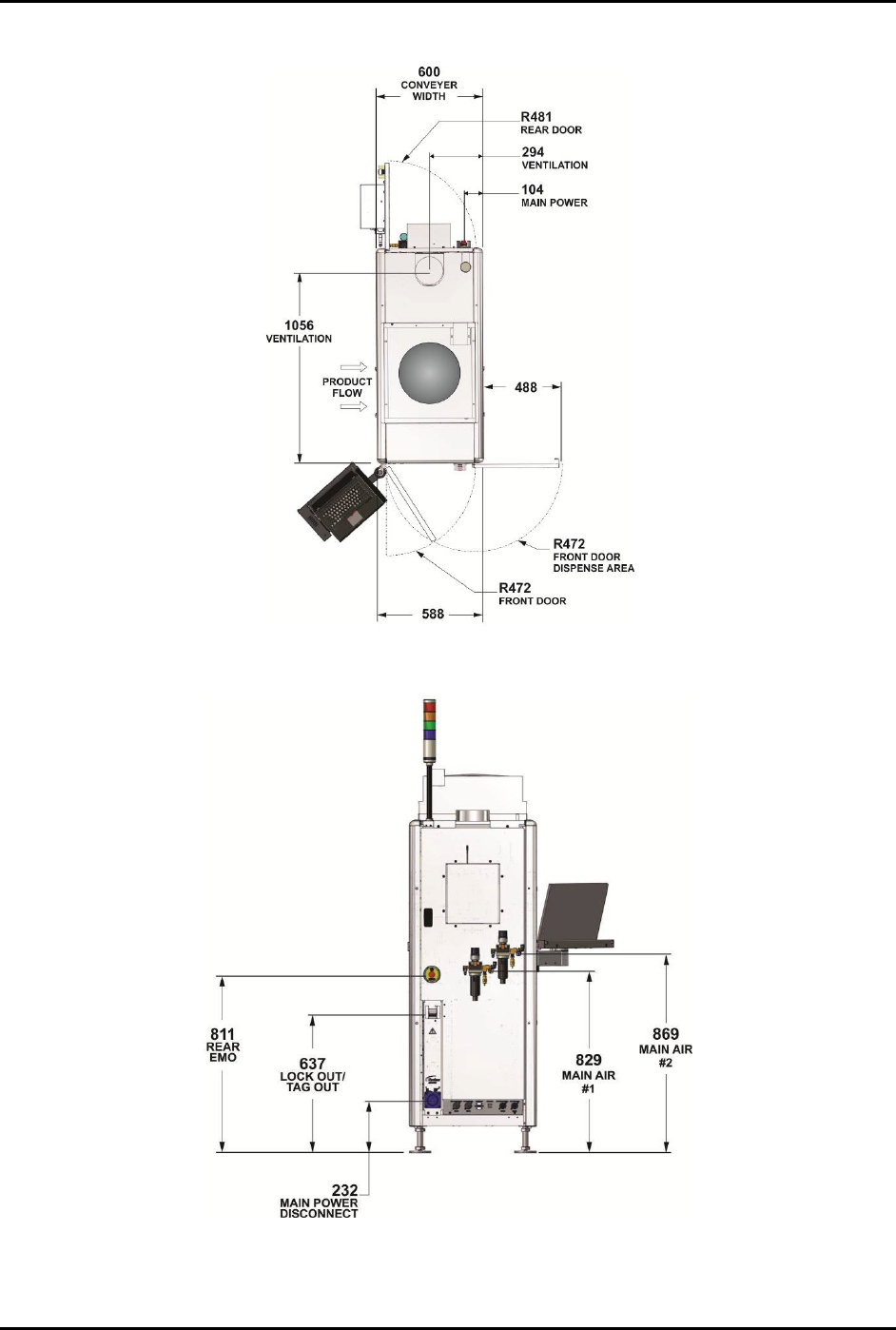

Top View (mm)
Back View (mm)
Figure 9-2 S2-9XXX System Dimensions (2 of 2)
S2-9XXX Series Dispensing System IOM Manual Specifications
© 2023 Nordson Corporation 9-7
9.5.2 S2-9XXC
NOMINAL PASSLINE HEIGHT (MM)
PASSLINE
RANGE
FOOT
(under machine
clearance)
MIN 913 66
NOMINAL
(SMEMA
1
)
953 106
MAX 965 118
1
SMEMA = 953 mm ± 12.5 mm
Front View (mm)
Side View (mm)
Figure 9-3 S2-9XXC System Dimensions (1 of 2)
S2-9XXX Series Dispensing System IOM Manual Specifications
9-8 © 2023 Nordson Corporation
Top View (mm)
Back View (mm)
Figure 9-4 S2-9XXC System Dimensions (2 of 2)
